HB7A-1022

Description
Band Pass Filter, 578MHz, ROHS COMPLIANT PACKAGE-6
CategoryAnalog mixed-signal IC    filter
File Size124KB,2 Pages
ManufacturerECI
Download Datasheet Parametric View All

HB7A-1022 Overview

Band Pass Filter, 578MHz, ROHS COMPLIANT PACKAGE-6

HB7A-1022 Parametric

Parameter NameAttribute value
MakerECI
Reach Compliance Codeunknown
Center frequency or cutoff frequency (fo/fc)578 MHz
filter typeBAND PASS FILTER
high12.5 mm
length7.5 mm
Manufacturer's serial numberHB7A
Installation typeTHROUGH HOLE MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
physical sizeL7.5XB7.5XH12.5 (mm)/L0.295XB0.295XH0.492 (inch)
width7.5 mm
Base Number Matches1

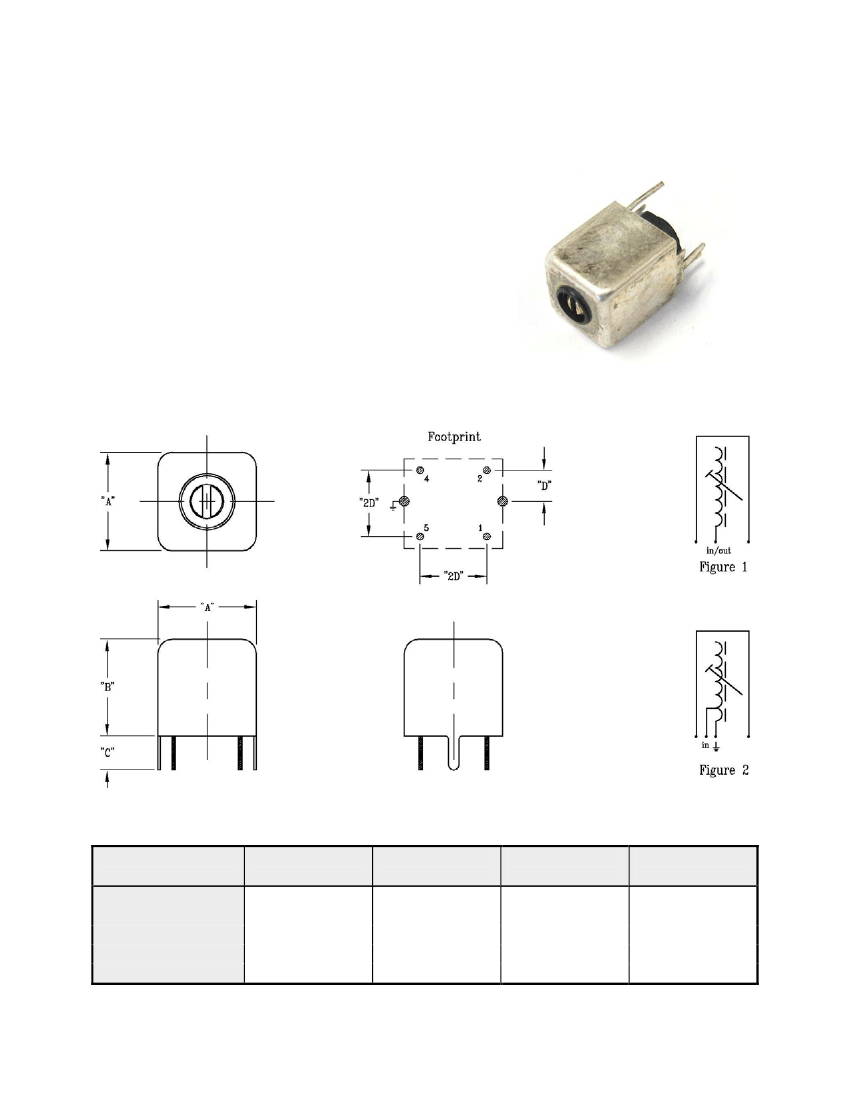

HBXX-1XXX
1-Circuit Bandpass Filter
Single resonator bandpass filter
Five sizes to choose from
Lead pull strength, 5N
Temperature range, -25
°C
to 85
°C
Soldering temperature 235 ºC, 5 seconds
Resistance to soldering heat 260 ºC, 5 seconds
Temperature coefficient (from -25 ºC to 85 ºC), ~
±50 x 10
-6
/ ºK
RoHS compliant per 2002/95/EC
P/N
HB7A-XXXX
HB7B-XXXX
HB7C-XXXX
HB10A-XXXX
HB10B-XXXX
“A”
" [mm]
0.30 [7,5]
0.30 [7,5]
0.30 [7,5]
0.40 [10,0]
0.40 [10,0]
“B”
" [mm]
0.49 [12,5]
0.55 [14,0]
0.49 [12,5]
0.61 [15,5]
0.63 [16,0]
“C”
" [mm]
0.14 [3,5]
0.14 [3,5]
0.14 [3,5]
0.14 [3,5]
0.14 [3,5]
“D”
" [mm]
0.10 [2,5]
0.10 [2,5]
0.09 [2.25]
0.13 [3,2]
0.13 [3,2]
