HD66110RTB0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> HD66110RTB0

HD66110RTB0: DescriptionLiquid Crystal Driver, 160-Segment, CMOS, 0.092 MM OUTER LEAD PITCH, SLIM, TCP-191; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size309KB，17 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD66110RTB0 Overview

Liquid Crystal Driver, 160-Segment, CMOS, 0.092 MM OUTER LEAD PITCH, SLIM, TCP-191

HD66110RTB0 Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	DIE
package instruction	DIE, TAB,191,.004/.019
Contacts	191
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	PARALLEL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N191
Multiplex display function	NO
Number of functions	1
Number of segments	160
Number of terminals	191
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	TOTEM-POLE
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	TAB,191,.004/.019
Package shape	RECTANGULAR
Package form	UNCASED CHIP
power supply	3/5 V
Certification status	Not Qualified
Maximum slew rate	5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
Supply voltage 1-max	40 V
Mains voltage 1-minute	28 V
Supply voltage1-Nom	30 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	NO LEAD
Terminal pitch	0.1 mm
Terminal location	UPPER
minfmax	12 MHz
Base Number Matches	1

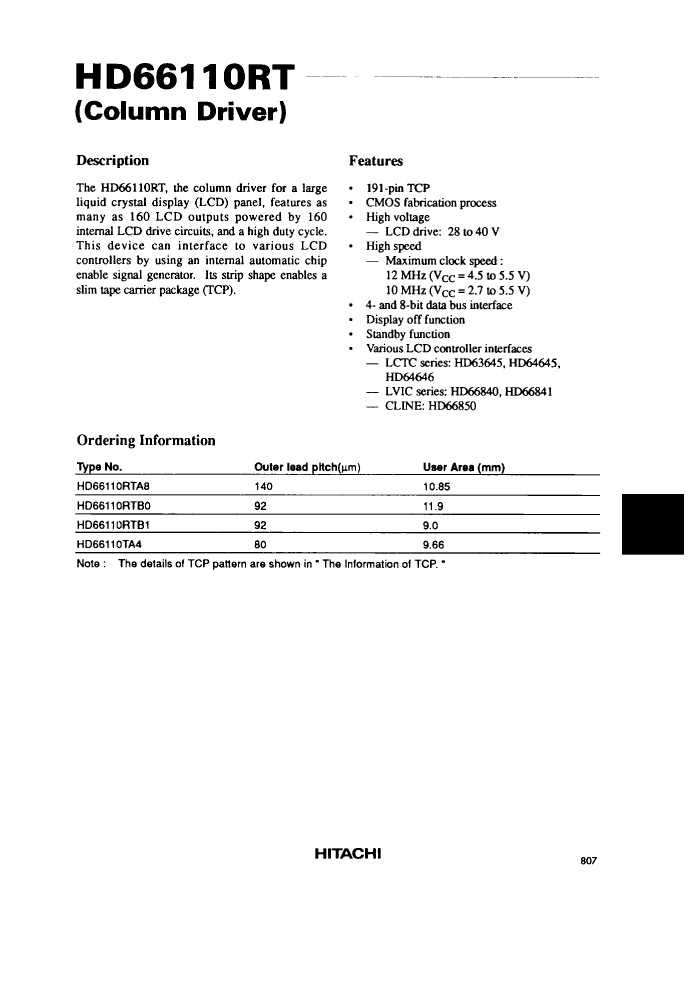

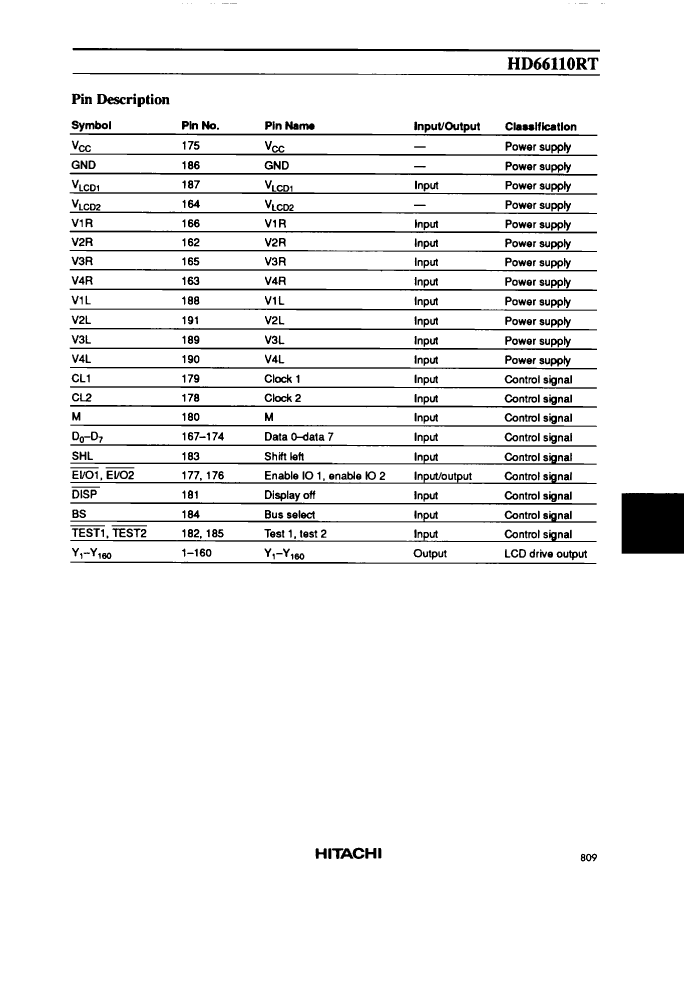

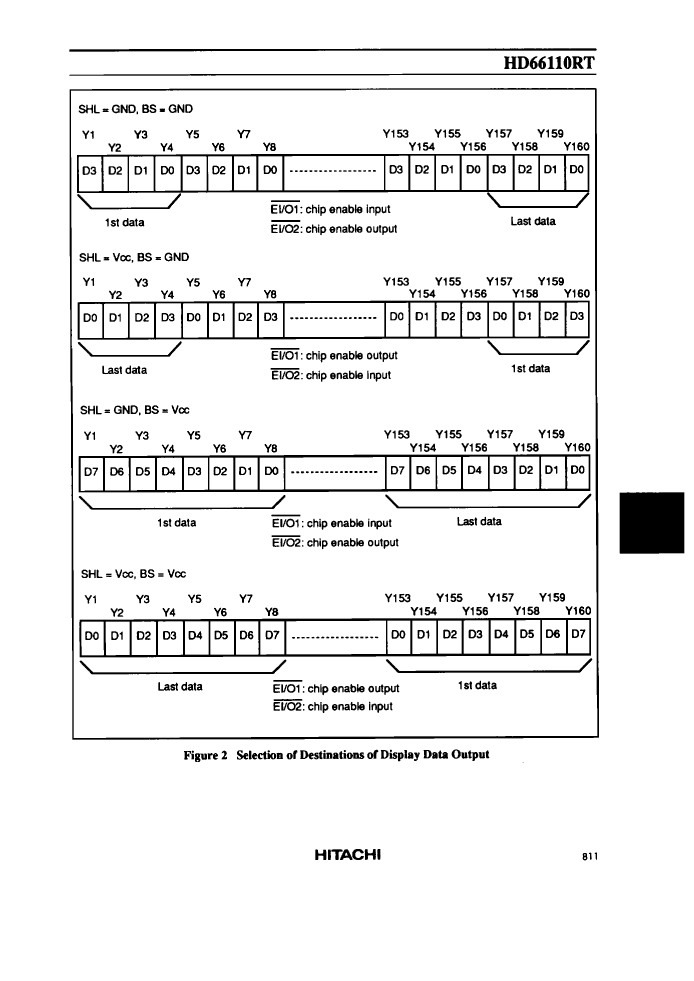

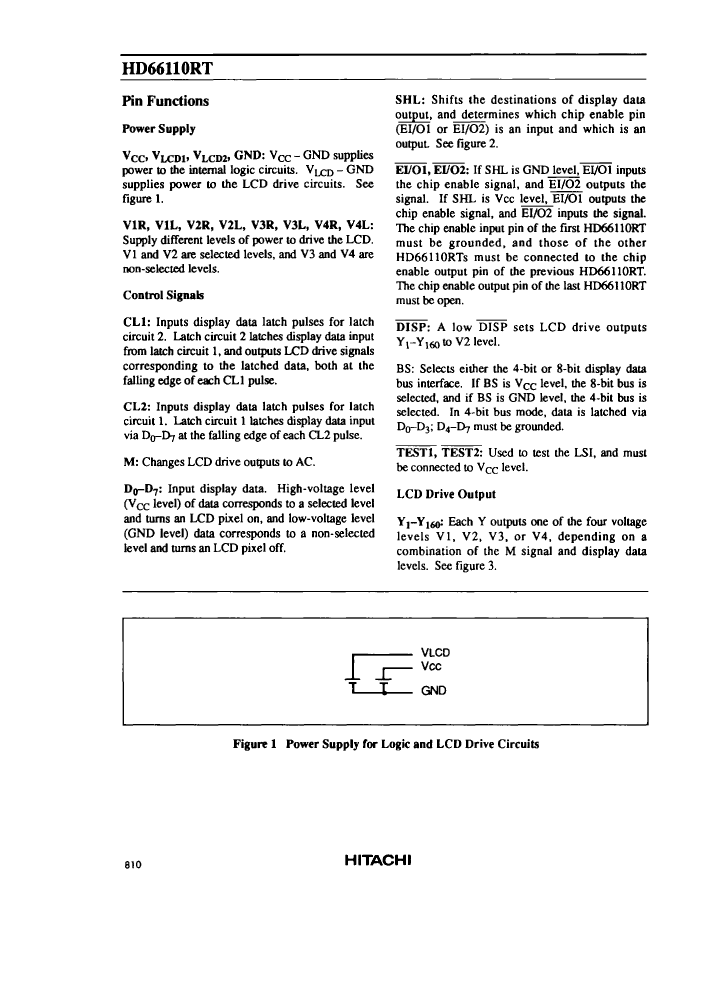

Preview

Download Datasheet

View All

HD66110RTB0 Related Products

	HD66110RTB0	HD66110RTA8	HD66110RTB1	HD66110TA4
Description	Liquid Crystal Driver, 160-Segment, CMOS, 0.092 MM OUTER LEAD PITCH, SLIM, TCP-191	Liquid Crystal Driver, 160-Segment, CMOS, 0.14 MM OUTER LEAD PITCH, SLIM, TCP-191	Liquid Crystal Driver, 160-Segment, CMOS, 0.092 MM OUTER LEAD PITCH, SLIM, TCP-191	Liquid Crystal Driver, 160-Segment, CMOS, 0.08 MM OUTER LEAD PITCH, SLIM, TCP-191
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	DIE	DIE	DIE	DIE
package instruction	DIE, TAB,191,.004/.019	DIE, TAB,191,.006/.024	DIE, TAB,191,.004/.019	DIE, TAB,191,.003/.019
Contacts	191	191	191	191
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
data entry mode	PARALLEL	PARALLEL	PARALLEL	PARALLEL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Input properties	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N191	R-XUUC-N191	R-XUUC-N191	R-XUUC-N191
Multiplex display function	NO	NO	NO	NO
Number of functions	1	1	1	1
Number of segments	160	160	160	160
Number of terminals	191	191	191	191
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE	DIE	DIE
Encapsulate equivalent code	TAB,191,.004/.019	TAB,191,.006/.024	TAB,191,.004/.019	TAB,191,.003/.019
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
power supply	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	5 mA	5 mA	5 mA	5 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	5 V	5 V	5 V	5 V
Supply voltage 1-max	40 V	40 V	40 V	40 V
Mains voltage 1-minute	28 V	28 V	28 V	28 V
Supply voltage1-Nom	30 V	30 V	30 V	30 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	0.1 mm	0.15 mm	0.1 mm	0.76 mm
Terminal location	UPPER	UPPER	UPPER	UPPER
minfmax	12 MHz	12 MHz	12 MHz	12 MHz
Base Number Matches	1	1	1	1
