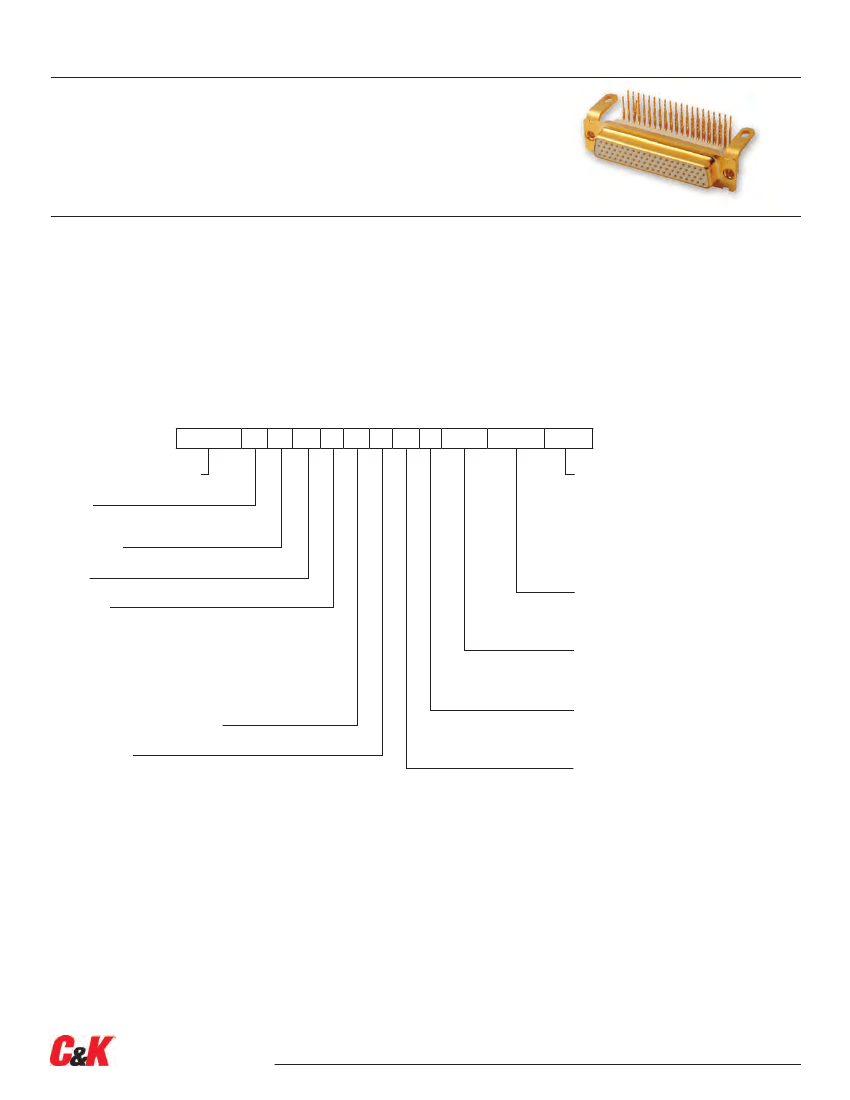

3401-001 D*M High Density
Features/Benefits
•
D*Sub Connector Type
•
Contacts installed in factory
•
Multiple contacts configuration: solder
cup 90° bent and straight PCB contact
•
From 15 to 104 ways
Connectors with solder type termination contacts size 22 inserted into two-piece insulators.
Termination types available:
- Solder cup
- Straight PCB solder terminations
- 90° bent PCB solder terminations
Packaging unit: 1 piece (plastic bag)
Dust cap supplied with each connector, only for quality level ESA/ESCC
Solder bucket: accepted wire sizes: insulated AWG 22, 24, 26 and 28
Typical Applications
•
Payloads PCB
•
Launchers
•
PCB Test
How to order – ESA/ESCC Quality Level
3401001 02 B
Detail specification number
Variant
02: High density
Testing level
Series
Shell size
E
A
B
C
D
F
Insert type:
M for two-piece insert
Fixing option:
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
Fixing option E or Y not compatible with
connectors equipped with bracket.
D
B M
Y 44 P NMB
xxx
OL3
Termination modifier
Nothing: solder bucket contacts
Straight PCB: OL3
90° bent PCB without brackets 1C0N, 1D0N
90° bent PCB with brackets 1C7N, 1C9N,
1D7N, 1D9N (size D & F only)
Nothing: solder cup
Shell Finish for F size only:
• A174 (25.4µm Ni)
• FR172 (0.7 µm gold over 25.4 µm Ni)
Magnetism level
NMB: 200 Gamma
NMC: 20 Gamma (on special request)
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
E: 15
A: 26
B: 44
C: 62
D: 78
F: 104
Dimensions are shown in mm (inch)
Dimensions subject to change
A3-1
www.ck-components.com
Rev. 23APR13
3401-001 D*M High Density
How to order – FR023 Quality Level
D
Series
Shell size
E
A
B
C
D
F
Insert type:
M for two-piece insert
According to MIL-DTL-24308 Specification
Fixing option:
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
B
M
M
Y
44
P
NMB
xxx
M2
FR023
Suffix for MIL Class M Quality (Connector
Specification FR023)
Termination modifier
Nothing: solder bucket contacts
Straight PCB: OL3, M2
90° bent PCB without brackets 1C0N, 1D0N
90° bent PCB with brackets 1C7N, 1C9N,
1D7N, 1D9N (size D & F only)
Shell Finish for F size only:
• A174 (25.4µm Ni)
• FR172 (0.7 µm gold over 25.4 µm Ni)
Magnetism level
NMB: 200 Gamma
NMC: 20 Gamma (on special request)
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
E: 15
A: 26
B: 44
C: 62
D: 78
F: 104
Fixing option E or Y not compatible
with connectors equipped with bracket
Dimensions are shown in mm (inch)
Dimensions subject to change
A3-2
www.ck-components.com
Rev. 23APR13
3401-001 D*M High Density
How to order – FR022 Quality Level
D
Series
Shell size
E
A
B
C
D
F
Insert type:
M for two-piece insert
Fixing option:
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
Fixing option E or Y not compatible with
connectors equipped with bracket.
B
M
Y
44
P
NMB XXX
OL3
FR022
Suffix for Commercial Space Grade Quality
Level (Connector Specification FR022)
Termination modifier
Nothing: solder bucket contacts
Straight PCB: OL3, M2
90° bent PCB without brackets 1C0N, 1D0N
90° bent PCB with brackets 1C7N, 1C9N,
1D7N, 1D9N (size D & F only)
Shell Finish for F size only:
• A174 (25.4µm Ni)
• FR172: (0.7 µm gold over 25.4 µm Ni)
Magnetism level
NMB: 200 Gamma
NMC: 20 Gamma (on special request)
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
E: 15
A: 26
B: 44
C: 62
D: 78
F: 104
Dimensions are shown in mm (inch)
Dimensions subject to change
A3-3
www.ck-components.com
Rev. 23APR13
3401-001 D*M High Density

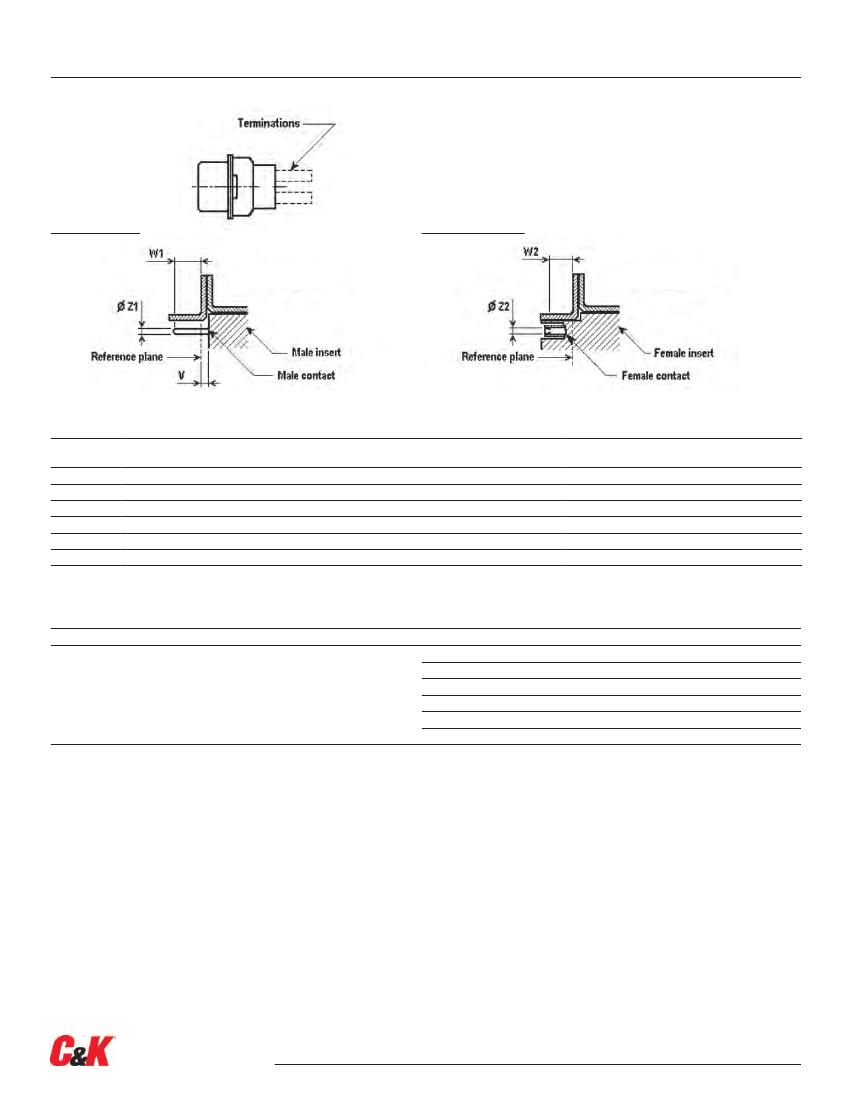

Specific Dimensions
Termination Types:
Solder Bucket
Straight PCB Solder
90° Bent PCB Solder / Without Bracket
90° Bent PCB Solder / With Monobloc Brackets
Male Connector
Female Connector
∅
Z2
: to accommodate a 0,75 (.0295) / 0,77 (.0305)
diameter pin
Shell Size V
max
E
A
B
C
D
F
0,40 (.016)
0,40 (.016)
0,60 (.024)
0,60 (.024)
0,60 (.024)
0,60 (.024)
W1
min (Full pin diameter)
4,43 (.174)
4,43 (.174)
4,33 (.170)
4,33 (.170)
4,33 (.170)
4,33 (.170)
W1
max (Full pin length)
5,45 (.215)
5,45 (.215)
5,45 (.215)
5,45 (.215)
5,45 (.215)
5,45 (.215)
∅
Z1
min
0,75 (.0295)
0,75 (.0295)
0,75 (.0295)
0,75 (.0295)
0,75 (.0295)
0,75 (.0295)
∅
Z1
max
0,77 (.0305)
0,77 (.0305)
0,77 (.0305)
0,77 (.0305)
0,77 (.0305)
0,77 (.0305)
W2
min (Square ended pin)
3,63 (.143)
3,63 (.143)
3,63 (.143)
3,63 (.143)
3,63 (.143)
3,63 (.143)
Weights
Max Weight (grams) without contacts or accessories
For the total connector weight, add the weight of the contacts
and of the eventual accessories.*
E
A
B
C
D
F
Shell Size
5,2
7,4
11,0
15,6
18,2
23,0
Male
Female
6,0
8,0
12,0
17,0
20,0
25,0
*
For the weight of the contacts, refer to the tables on the following pages.
For dual-float amount (Y) weight (if applicable), added 0,60 grams
For captive-nut, (E) weight (if applicable), added 0,65 grams
Dimensions are shown in mm (inch)
Dimensions subject to change
A3-4
www.ck-components.com
Rev. 23APR13
3401-001 D*M High Density

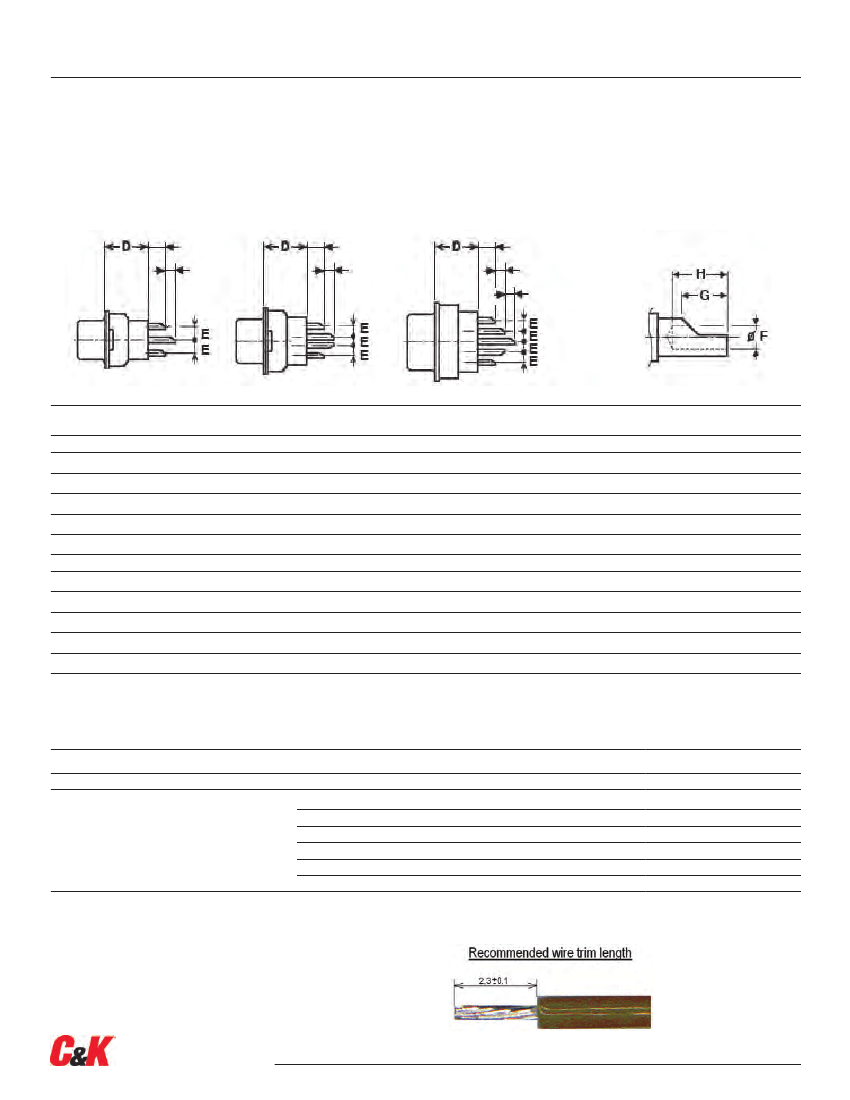

Solder Bucket Terminations:
Specific Dimensions
Sizes E, A, B, C
Size D
Size F
Termination
NEED GRAPHICS
Contacts
Male
Shell Size
E
A
B
C
D
D
D
Max
11,21 (.441)
11,21 (.441)
11,41 (.449)
11,41 (.449)
11,41 (.449)
11,41 (.449)
11,21 (.441)
11,21 (.441)
11,21 (.441)
11,21 (.441)
11,21 (.441)
11,21 (.441)
E
Typical
1,98 (.078)
1,98 (.078)
1,98 (.078)
1,98 (.078)
2,08 (.082)
2,08 (.082)
1,98 (.078)
1,98 (.078)
1,98 (.078)
1,98 (.078)
2,08 (.082)
2,08 (.082)
(.0012)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
0,90 (.035)
ØF
+ 0,03
(.022)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
G
±
0,55
H
min
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
J
±
0,3
(.012)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
2,80 (.110)
(.004)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
2,00 (.079)
K
±
0,1
between contacts
2,29 (.090)
2,29 (.090)
2,29 (.090)
2,41 (.095)
2,41 (.095)
2,41 (.095)
2,29 (.090)
2,29 (.090)
2,29 (.090)
2,41 (.095)
2,41 (.095)
2,41 (.095)
Pitch
Female
E
A
B
C
D
D
Termination Modifier: Nothing
Weights
Shell Size
Max Weight (grams) of all contacts per size
Max Weight (grams) per contact
E
B
C
D
F
A
Male Contact
0,14 / 0,16 / 0,18
2,20
6,46
9,10
11,70
16,24
3,82
Female Contact
0,19 / 0,21 / 0,23
2,95
8,66
12,20
15,60
21,44
5,12
Recommended instruction for wire stripping:
Cut wires to length and strip insulation per illustration.
Check for broken or frayed wires.
Accepted wires sizes: insulated AWG 22, AWG 24, AWG 26.
(AWG 28 possible but not approved by ESA)
Dimensions are shown in mm (inch)
Dimensions subject to change
A3-5
www.ck-components.com
Rev. 23APR13
