55318-3 Overview

CONNECTOR ACCESSORY

55318-3 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	55318
Base Number Matches	1

Preview

Download Datasheet

View All

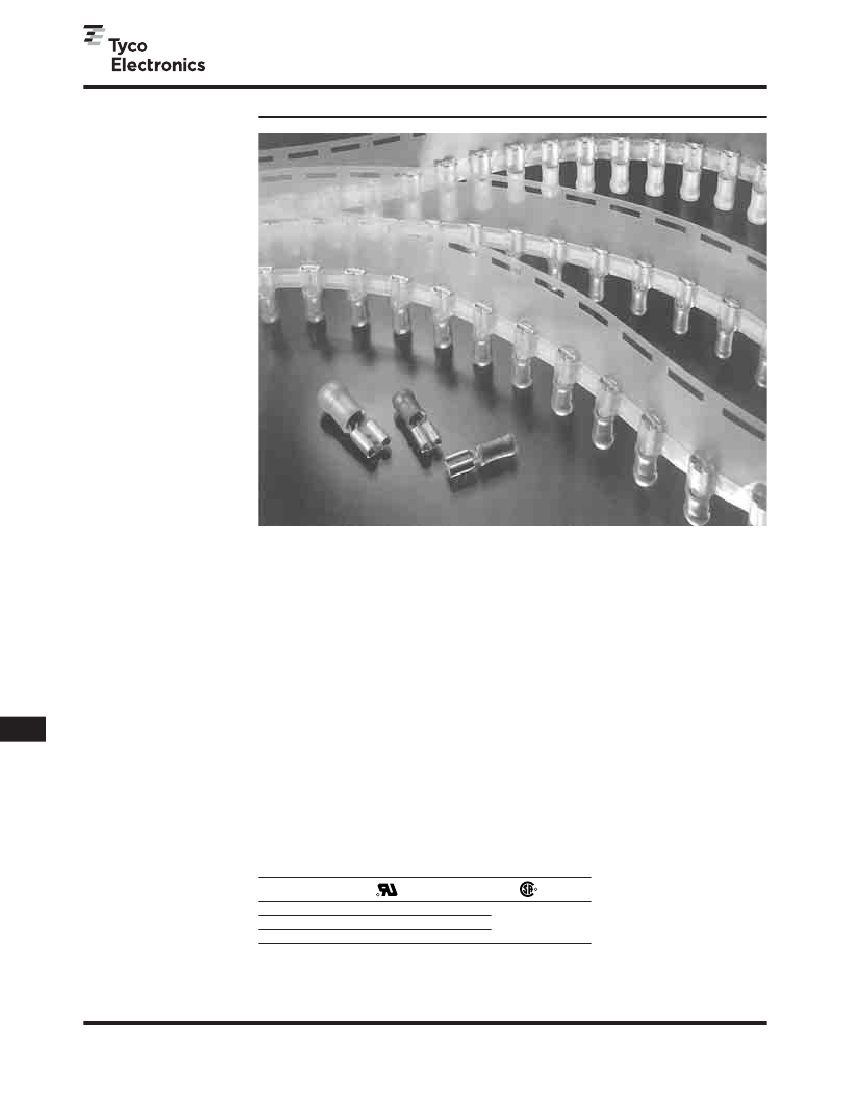

FASTON Terminals (Insulated and Uninsulated)

PIDG FASTON Receptacles and Tabs

Product Facts

■

Pre-insulated terminal

designed for complete and

uniformed reliability in the

most difficult circuit

environment

Consists of an unplated or

tin plated brass body or a

tin plated phosphor bronze

body with a specially

designed copper sleeve and

insulation sleeve fitted over

the terminal barrel

Design of the tool dies and

construction of the terminal

insures uniform insulation

thickness under crimping

pressure, transmitting this

pressure evenly to the

center of the crimp area

■

The Tyco Electronics Mated

Tool/Terminal Concept

■

Tyco Electronics

compression crimping

produces crimps for a

given size wire and terminal

that are precisely alike

in appearance and

performance

Terminal and the crimping

tool are designed as

precisely matched devices

Dies are precision-

engineered from the finest

hard-metal alloys

Crimping pressure is

controlled by a ratchet

device on the hand tool

or a corresponding pre-

calibration in the crimping

jaws of Tyco Electronics

automated crimping

machines

■

PIDG FASTON

Receptacles and Tabs

Here is a pre-insulated

terminal designed for

complete and uniform

reliability in most difficult

circuit environments. Each

PIDG Terminal consists of a

tin plated brass body with a

specially designed copper

sleeve and insulation sleeve

fitted over the terminal

barrel. The design of the tool

dies and the construction

of the terminal promotes

uniform insulation thickness

under crimping pressure,

transmitting this pressure

evenly to the center of the

crimp area.

Tyco Electronics

compression crimping

produces crimps for a

given size wire and terminal

that are precisely alike

in appearance and

performance. This is a

calculated result made

possible by designing the

terminal and the crimping

tool as precisely matched

devices. The dies are

precision-engineered from

the finest hard-metal alloys.

Crimping pressure is

controlled by a ratchet

device on the hand tool or

a corresponding pre-

calibration in the crimping

jaws of Tyco Electronics

automated crimping

machines.

Crimping pressure can

neither over-stress nor

understress the terminal

barrel — machined dies

fully bottom to the precise

crimp height required.

The resulting termination

is free of contamination,

is resistant to shock and

critical environments,

and its tensile strength

approaches that of the

wire itself.

The Crimp

■

Crimping pressure does not

overstress nor understress

the terminal barrel —

machined dies fully bottom

to the precise crimp height

Resulting termination is

free of contamination

Resistant to most shock and

critical environments

Tensile strength approaches

that of the wire itself

Temperature Rating: 105° C

Wire

Range

22-16

16-14

12-10

■

E66717

Recognized

22-16 Stranded

16-14 Stranded

12-10 Stranded

LR7189

Certified

300 V Max.,

105°C Max.

UL and CSA — Nylon.

Catalog 82004

Revised 10-07

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-8706-080-208
