300SP3J5BLKVS4RE datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 300SP3J5BLKVS4RE

300SP3J5BLKVS4RE: DescriptionRocker Switch,; CategoryMechanical and electronic products switch; File Size163KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

300SP3J5BLKVS4RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	300SP3J5BLKVS4RE	-	-	View	Buy Now

300SP3J5BLKVS4RE Overview

Rocker Switch,

300SP3J5BLKVS4RE Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
Switch type	ROCKER SWITCH
Base Number Matches	1

Preview

Download Datasheet

View All

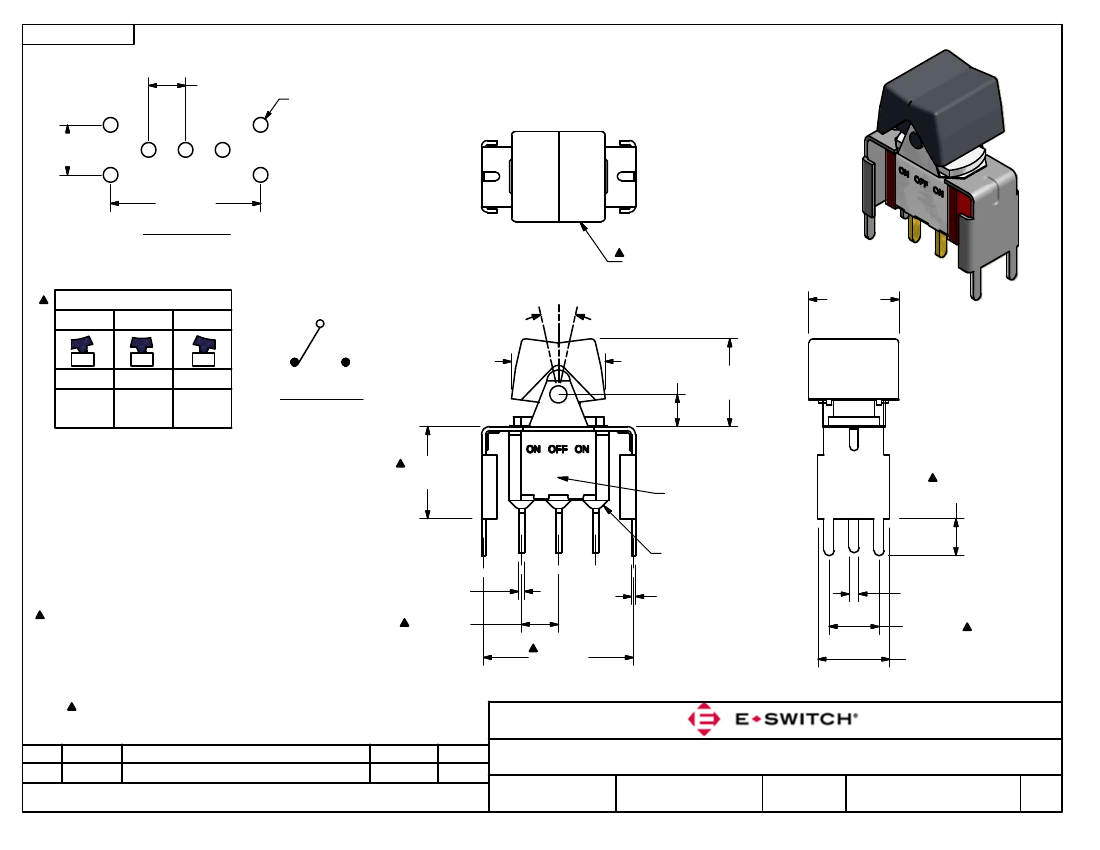

SHEET 1 OF 1

4.70

[.185 in]

1.85

[.073 in]

6.35

[.250 in]

19.05

[.750 in]

P.C. MOUNTING

BLACK ACTUATOR

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

POS. 2

POS. 1

POS. 3

11.43

[.45 in]

2-3

OFF

OPEN

2-1

11.7

[.46 in]

4.1

[.16 in]

CIRCUIT: SPST

11.2

[.44 in]

11.68

[.460 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

4.70

[.185 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = 0.4

X.XX = 0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT PLATING MATERIAL: GOLD

5. RATING: 0.4VA MAX. @20V MAX. AC OR DC

6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30 C to 85 C

10.

DENOTES CRITICAL PARAMETER.

EPOXY SEAL

.51

[.020 in]

1.27

[.050 in]

6.35

[.250 in]

.76 TYP.

[.030 in]

4.70

[.185 in]

19.05

[.750 in]

9.14

[.360 in]

REV

22156

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

2/11/16

DATE

TITLE

SCALE

300SP3J5BLKVS4RE

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

2:1

2/11/2016

T314044
