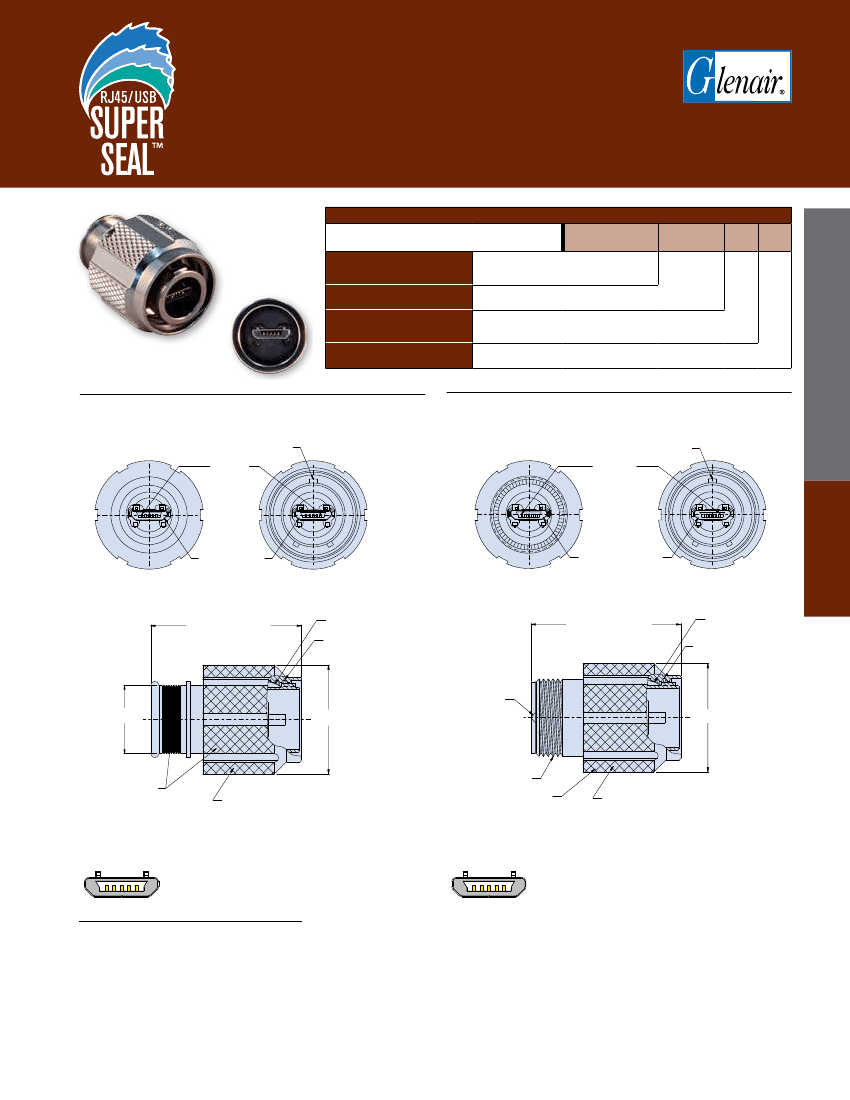

MICRO USB 2.0
Series 805 Mighty Mouse
805-087 and 805-088 Plug Adapter with
USB Micro “B” Male-to-Male Interface
How To Order
Sample Part Number
Series
Shell Style
Shell Material and Finish
1
805-087
805-087
= Shield Termination Porch
804-088
= Accessory Threads
16
= Plug with Anti-decoupling Spring
-16 MUSB
-M
A
NF
= AL/Cadmium, Olive Drab
M
= AL/Electroless Nickel
MT
= AL/Nickel PTFE
ZNU
= AL/Black Zinc Nickel
A, B, C, D, E, F
Plug and Rear View
of Micro “B” Male Interface
Aternate Key Positions
1
805-087 PLUG ADAPTER, SHELL SIZE 10
Master Key
Pin ID 1
805-088 PLUG ADAPTER, SHELL SIZE 10
Master Key
Pin ID 1
Micro USB “B”
Male Interface
Face view of plug adapter
as viewed from cable end.
Face view of plug adapter
as viewed from engaging end.
EMI/RFI Spring
.6250-.1P-.3L-TS-2B
Face view of plug adapter
as viewed from cable end.
Micro USB “B”
Male Interface
Face view of plug adapter
as viewed from engaging end.
EMI/RFI Spring
.6250-.1P-.3L-TS-2B
1.188 (30.18) Max
1.188 (30.18) Max
Ø.472 (11.99)
Ø.827 (21.01)
Accessory
Teeth
Ø.827 (21.01)
Knurls Or Ridges
Mfg's Option
.5000-28 UNEF-2A
Self-locking Coupling
Knurl, Mfg Option
Self-locking Coupling
805-087 Plug Adapter
with Shield Termination Porch
12345
54321
805-088 Plug Adapter
with Accessory Thread
Rear Micro “B “USB Plug (Cable End)
Front Micro “B “USB Plug (engaging end)
NOTES
1. See Section A for alternate keyway
positions and additional finishes.
2. These plug connectors mate with
Glenair receptacles 805-084,
805-085, 805-089 and 805-090.
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperSeal™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
