74F37VCQR datasheet, PDF - EEWORLD Datasheet

74F37VCQR: DescriptionNAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, PDSO14, 0.300 INCH, SOIC-14; Categorylogic logic; File Size28KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

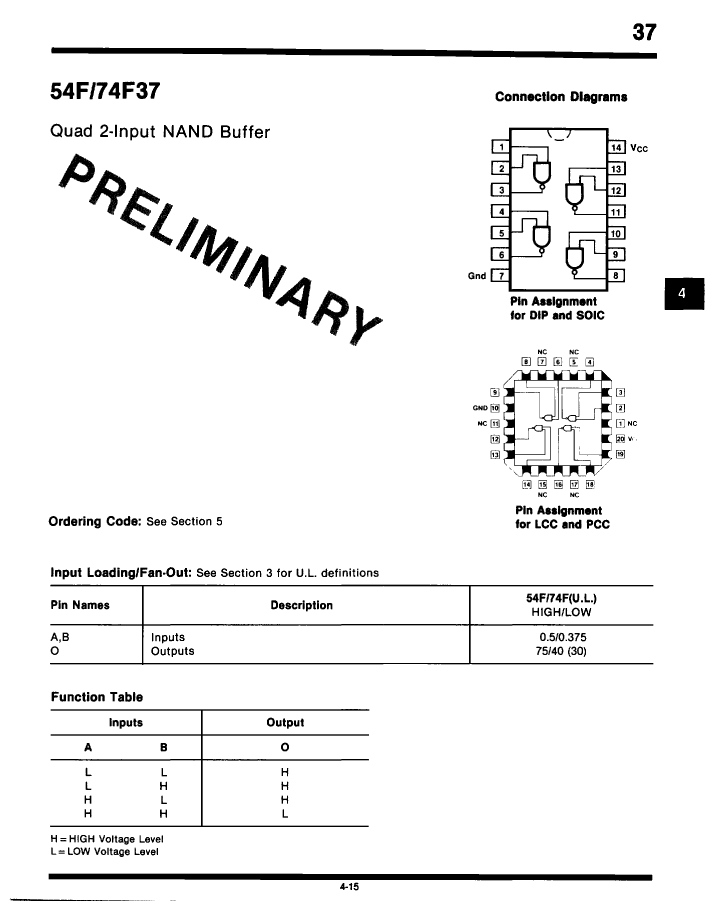

74F37VCQR Overview

NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, PDSO14, 0.300 INCH, SOIC-14

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOIC
package instruction	0.300 INCH, SOIC-14
Contacts	14
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	4.3 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1
