LNG302GPU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LNG302GPU

LNG302GPU: DescriptionDirect Joint Type; CategoryLED optoelectronic/LED photoelectric; File Size27KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

LNG302GPU Overview

Direct Joint Type

LNG302GPU Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	2 PIN
Reach Compliance Code	unknow
color	GREEN
color@wavelength	Gree
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
JESD-609 code	e0
Lens type	CLEAR
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.5 mm
method of packing	BULK
peak wavelength	565 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	5.3 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	5 mm
perspective	170 deg
Base Number Matches	1

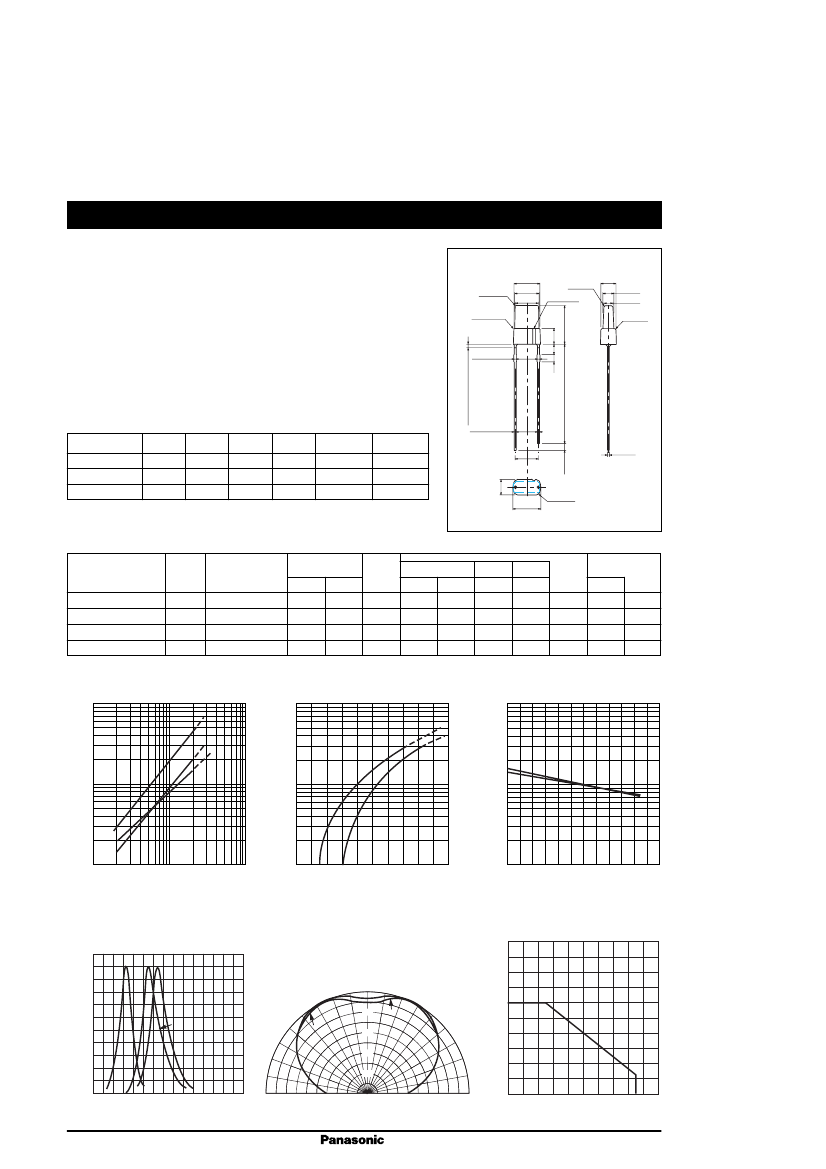

Preview

Download Datasheet

View All

Square Type

Direct Joint Type

(R0.2)

(R0.15)

＊

1.5 2.5 3.5

21.2

2.0

8.5

0.3

Unit: mm

5.6

0.3

3.3

0.3

(R0.2)

5.3

0.3

2.4

0.3

2.0

0.2

5.0

0.2

カ½ードマーク

(R0.3)

LNG302GPU ············· LNG302GPU ······· Green Clear

LNG802RPD ············· LNG802RPD ······· Orange Clear

LNG802SPS ·············· LNG802SPS ········ Orange Clear

Absolute Maximum Ratings (T

25°C)

Lighting Color P

(mW) I

(mA) I

(mA)

∗

(V) T

opr

(°C)

Green Clear

150

−25 ∼ +85

Orange Clear

150

−25 ∼ +85

Orange Clear

150

stg

(°C)

−30 ∼ +100

1.5 Max. NOT SOLDERED

Conventional Part No.

Global Prat No.

Lighting Color

−

0.65 Max

−

0.4

0.1

0.4

0.1

3.5

0.3

(R0.5)

5.8

0.3

★

の条件は，

duty 10%，

Pulse width 1 msec. The condition of I

is duty 10%, Pulse width 1 msec

1.5

5.0

1: Anode

2: Cathode

Electro−Optical Characteristics (T

25°C)

Conventional

Part No.

LNG302GPU

LNG802RPD

LNG802SPS

Unit

Lighting

Lens Color

Color

Green Clear

Orange Clear

−

Typ

5.0

1.5

2.1

mcd

Min

1.5

0.5

2.8

mcd

Typ

2.2

2.1

1.5

Max

2.8

0.5

Typ

565

630

610

∆λ

Typ

Max

µA



100



Reletive Luminous Intensity

500

300

LNG3

02GPU



Luminous Intensity

0.5

0.3

02G

LN NG

G 80

80 2R

2S P

PS D

Forward Current

100

LNG80

LNG80 2RPD

2SPS

0.1

50 100 300

1.6

1.8

2.0

2.2

2.4

−20

100

Forward Current

Forward Voltage

Ambient Temperature

Relative Luminous Intensity

Wavelength Characteristics

Relative Luminous Intensity

100

30°

40°

500

LNG802SPS

50°

60°

70°

80°

600

700

800

90°

100

40°

20°



Directive Characteristics

20° 10°

0°

10° 20°

30°

40°

50°

60°

70°

Forward Current

80°

90°

100

LNG302GPU

LNG802RPD

60°

LNG302GPU

LNG802SPS

100

Wavelength

Relative Luminous Intensity

Ambient Temperature

173

LNG302GPU Related Products

	LNG302GPU	LNG802SPS	LNG802RPD
Description	Direct Joint Type	Direct Joint Type	Direct Joint Type

Recommended Resources

Touch lighting switch circuit four

LM2577 basic application circuit diagram

Hall sensor signal amplification circuit

555 multifunctional timing pager circuit

Temperature stable logarithmic amplifier circuit

Short-circuit braking circuit for reversible inching control of three-phase motors

2812 program is burned into the on-chip flash and runs. Can CCS and emulator be used to observe internal variables?: The 2812 program is burned into the on-chip flash and runs. Can I use CCS and the simulator to observe the internal variablesand debug the motor program? It is easy to run wild when using the simulato...; xieguangye Microcontroller MCU

Where is the keyboard for proteus: Single keys (not switches) and matrix keyboards...; daoke4587 Embedded System

DSP development based on dual-core chip of CCS: [i=s]This post was last edited by Jacktang on 2019-10-11 14:46[/i]Because of the dual-core heterogeneous processor, one is DSP core and the other is ARM core, the official development methods are all ...; Jacktang DSP and ARM Processors

IGBT short circuit failure mechanism: Several consequences of IGBT under load short circuit (1) Exceeding thermal limit: The intrinsic temperature limit of semiconductor is 250℃. When the junction temperature exceeds the intrinsic tempera...; eeleader Industrial Control Electronics

Using io port to control k9k8G08U0A can't write data (urgent): This is a test program, which is to write the same data into the whole page. In addition, all the IDs can be read out. I personally feel that the data can be read out, but all that is read out is FF. ...; liu4310262 Embedded System

Officially get STM8S103K3: After a lot of promotional propaganda, I bought 10 samples today and plan to migrate all the ATMEL8 stuff I used before.There are a few questions that I still don't understand:1. Will STM8S103K3 be li...; cailong stm32/stm8
