LN360GPX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LN360GPX

LN360GPX: DescriptionSquare Type; CategoryLED optoelectronic/LED photoelectric; File Size27KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

LN360GPX Overview

Square Type

LN360GPX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
package instruction	3 X 2 MM PACKAGE-2
Reach Compliance Code	unknow
color	YELLOW GREEN
color@wavelength	Gree
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	3.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4 mm
method of packing	BULK
peak wavelength	565 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	3 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	180 deg

Preview

Download Datasheet

View All

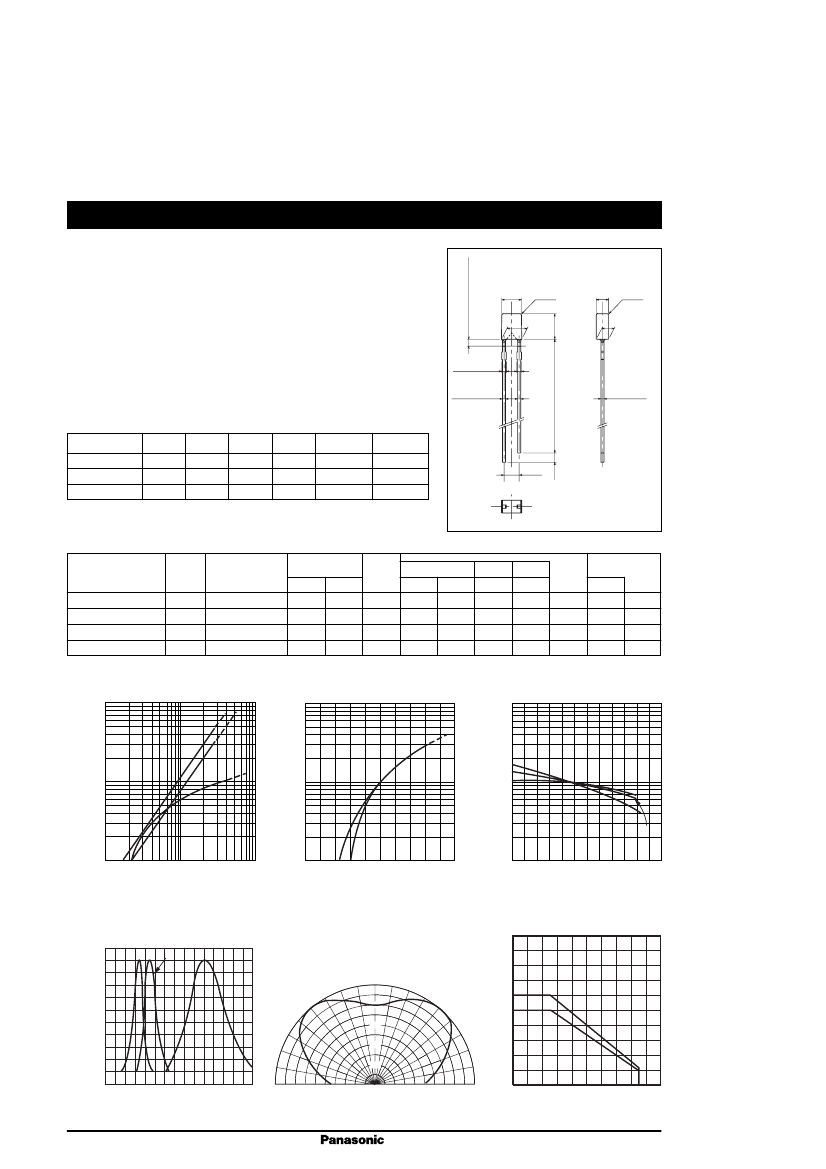

角 ½

Square Type

1.0 Max. NOT SOLDERED

□

3.0 mm

2.0 mm Series

Conventional Part No.

Global Prat No.

Lighting Color

Unit: mm

0.2

3.0

R0.1

4.0

0.2

2.0

R0.1

0.2

3.2

0.2

2.0

LN260RPX ················ LNG260RKR ············ Red

LN360GPX ··············· LNG360GKG ··········· Green

LN460YPX ··············· LNG460YKX ··········· Amber

絶対最大定格 Absolute

Maximum Ratings (T

25°C)

Lighting Color P

(mW) I

(mA) I

(mA)

∗

(V) T

opr

(°C)

Red

150

−25 ∼ +85

Green

150

−25 ∼ +85

Amber

150

stg

(°C)

−30 ∼ +100

−

0.7 Max

26.5

1.0

−

0.45

0.1

0.45

0.1

2.54

★

の条件は，

duty 10%，

Pulse width 1 msec. The condition of I

is duty 10%, Pulse width 1 msec

1.5

1: Anode

2: Cathode

電気的光学的特性 Electro−Optical

Characteristics (T

25°C)

Conventional

Part No.

LN260RPX

LN360GPX

LN460YPX

Unit

Lighting

Lens Color

Color

Red

Red Diffused

Green Green Diffused

Amber Amber Diffused

−



100

Typ

0.7

3.0

2.0

mcd

Min

0.3

1.0

0.7

mcd



Typ

2.2

Max

2.8

Typ

700

565

590

∆λ

Typ

100

Max

µA



相対発光強度

(%)

Relative Luminous Intensity

500

300

光度（軸上） I

(mcd)

Luminous Intensity

順方向電流 I

(mA)

Forward Current

0.5

0.3

LN3 60RPX

60G

100

260

LN36

0GPX

260

LN460YPX

0.1

100

1.6

1.8

2.0

2.2

2.4

−20

100

順方向電流 I

(mA)

Forward Current

順方向電圧 V

(V)

Forward Voltage

周囲温度

(˚C )

Ambient Temperature

相対発光強度



波長特性

順方向電流 I

(mA)

Forward Current

Relative Luminous Intensity

Wavelength Characteristics

相対発光強度

(%)

Relative Luminous Intensity

100

30°

40°

500

50°

60°

LN260RPX

70°

80°

600

700

800

90°

100

40°

20°

60°

80°

LN360GPX

LN460YPX



指向特性

Directive Characteristics

20° 10°

0°

10° 20°

30°

40°

50°

LN N36

46 0G

0Y PX

70°

80°

90°

100

波長

(nm)

Wavelength

100

相対発光強度

(%)

Relative Luminous Intensity

周囲温度

(

°C

)

Ambient Temperature

213

LN360GPX Related Products

	LN360GPX	LN460YPX
Description	Square Type	Square Type
Is it Rohs certified?	incompatible	incompatible
Maker	Panasonic	Panasonic
Reach Compliance Code	unknow	unknow
color	YELLOW GREEN	AMBER
color@wavelength	Gree	Ambe
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Maximum forward voltage	2.8 V	2.8 V
JESD-609 code	e0	e0
Lens type	DIFFUSED	DIFFUSED
Nominal luminous intensity	3.0 mcd	2.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	4 mm	4 mm
method of packing	BULK	BULK
peak wavelength	565 nm	590 nm
Maximum reverse voltage	4 V	4 V
shape	RECTANGULAR	RECTANGULAR
size	3 mm	3 mm
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm
perspective	180 deg	180 deg
