LN242RPX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LN242RPX

LN242RPX: Description5.0 mm X 2.0 mm Series; CategoryLED optoelectronic/LED photoelectric; File Size27KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

LN242RPX Overview

5.0 mm X 2.0 mm Series

LN242RPX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	PACKAGE-2
Reach Compliance Code	unknow
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	2.8 V
Lens type	DIFFUSED
Nominal luminous intensity	0.4 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7.5 mm
method of packing	BULK
peak wavelength	700 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	130 deg

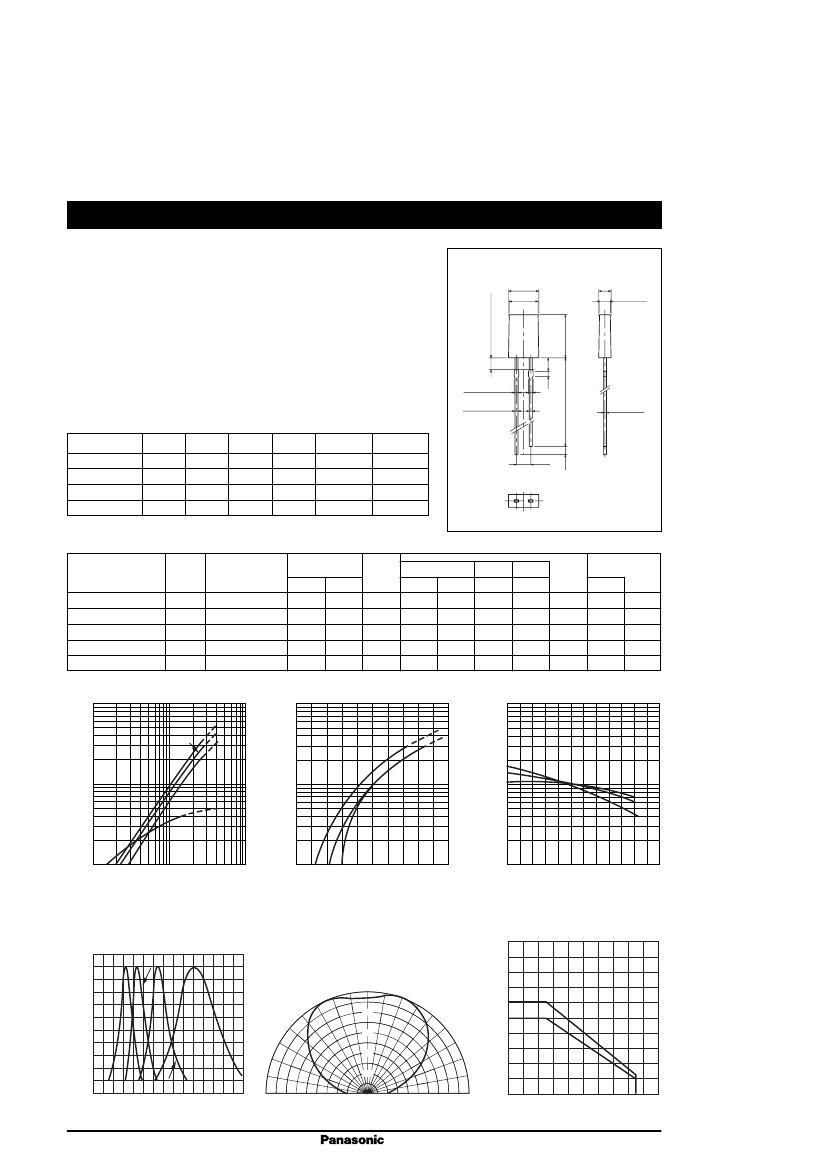

Preview

Download Datasheet

View All

Square Type

□

5.0 mm

2.0 mm Series

2 Max. NOT SOLDERED

Unit: mm

5.2

0.2

5.0

0.2

7.5

0.2

2.2

0.2

2.0

0.2

Conventional Part No.

Global Prat No.

Lighting Color

LN242RPX ················ LNG242RKR ············ Red

LN342GPX ··············· LNG342GKG ··········· Green

LN442YPX ··············· LNG442YKX ··········· Amber

LN842RPX ················ LNG842RKD ············ Orange

Absolute Maximum Ratings (T

25°C)

Lighting Color P

(mW) I

(mA) I

(mA)

∗

(V)

Red

150

Green

150

Amber

150

Orange

150

Electro−Optical Characteristics (T

25°C)

Conventional

Part No.

LN242RPX

LN342GPX

LN442YPX

LN842RPX

Unit

−

0.5 Max

26.5

1.0

−

0.7 Max

1.0 2.3

0.45

0.1

opr

(°C)

−25 ∼ +85

stg

(°C)

−30 ∼ +100

2.54

1.5

★

の条件は，

duty 10%，

Pulse width 1 msec. The condition of I

is duty 10%, Pulse width 1 msec

1: Anode

2: Cathode

Lighting

Color

Red

Green

Amber

Orange

−

Lens Color

Red Diffused

Green Diffused

Amber Diffused

Red Diffused

−

100

Typ

0.4

1.5

2.0

2.5

mcd

Min

0.15

0.50

0.75

1.00

mcd

Typ

2.2

2.1

Max

2.8

Typ

700

565

590

630

∆λ

Typ

100

Max

µA



Relative Luminous Intensity

500

300



Luminous Intensity

342

Forward Current

0.5

0.3

2RPX

442

LN2

42R

LN34

2GPX

100

LN342GP

LN842RP

LN2

RPX

LN242

LN44

2YPX

42R

0.1

100

1.6

1.8

2.0

2.2

2.4

−20

100

Forward Current

Forward Voltage

Ambient Temperature

Relative Luminous Intensity

Wavelength Characteristics

Relative Luminous Intensity

100

30°

40°

500

LN842RPX

600

LN242RPX

50°

60°

70°

80°

700

800

90°

100

40°

20°

60°

70°

80°

90°

100

80°



Directive Characteristics

20° 10°

0°

10° 20°

30°

40°

50°

Forward Current

LN342GPX

LN442YPX

N34

442

2GP

100

Wavelength

Relative Luminous Intensity

Ambient Temperature

193

LN242RPX Related Products

	LN242RPX	LN442YPX
Description	5.0 mm X 2.0 mm Series	5.0 mm X 2.0 mm Series
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Panasonic	Panasonic
Reach Compliance Code	unknow	unknow
color	RED	AMBER
color@wavelength	Red	Ambe
Configuration	SINGLE	SINGLE
Maximum forward current	0.025 A	0.03 A
Maximum forward voltage	2.8 V	2.8 V
Lens type	DIFFUSED	DIFFUSED
Nominal luminous intensity	0.4 mcd	2.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	7.5 mm	7.5 mm
method of packing	BULK	BULK
peak wavelength	700 nm	590 nm
Maximum reverse voltage	4 V	4 V
shape	RECTANGULAR	RECTANGULAR
size	5 mm	5 mm
surface mount	NO	NO
Terminal pitch	2.54 mm	2.54 mm
perspective	130 deg	130 deg
