34.5234: DescriptionElectric Fuse, TIME DELAY BLOW ELECTRIC FUSE, 2.8A, 250VAC, 100A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size130KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

34.5234 Overview

Electric Fuse, TIME DELAY BLOW ELECTRIC FUSE, 2.8A, 250VAC, 100A (IR), INLINE/HOLDER

34.5234 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME DELAY
body height	31.8 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	126 J
Installation features	INLINE/HOLDER
physical size	6.35mm x 31.8mm
Pre-discharge time - minutes	30000 ms
Rated breaking capacity	100 A
Rated current	2.8 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

INDEX BY TYPES | INDEX BY ORDER NUMBERS

NON RESETTABLE FUSES

FST 6.3x32 (UL)

UL 248-14 · 125/250 VAC · Time-Lag T

Describtion

- UL Standard Fuse

- Glass Tube

References

General Product Information

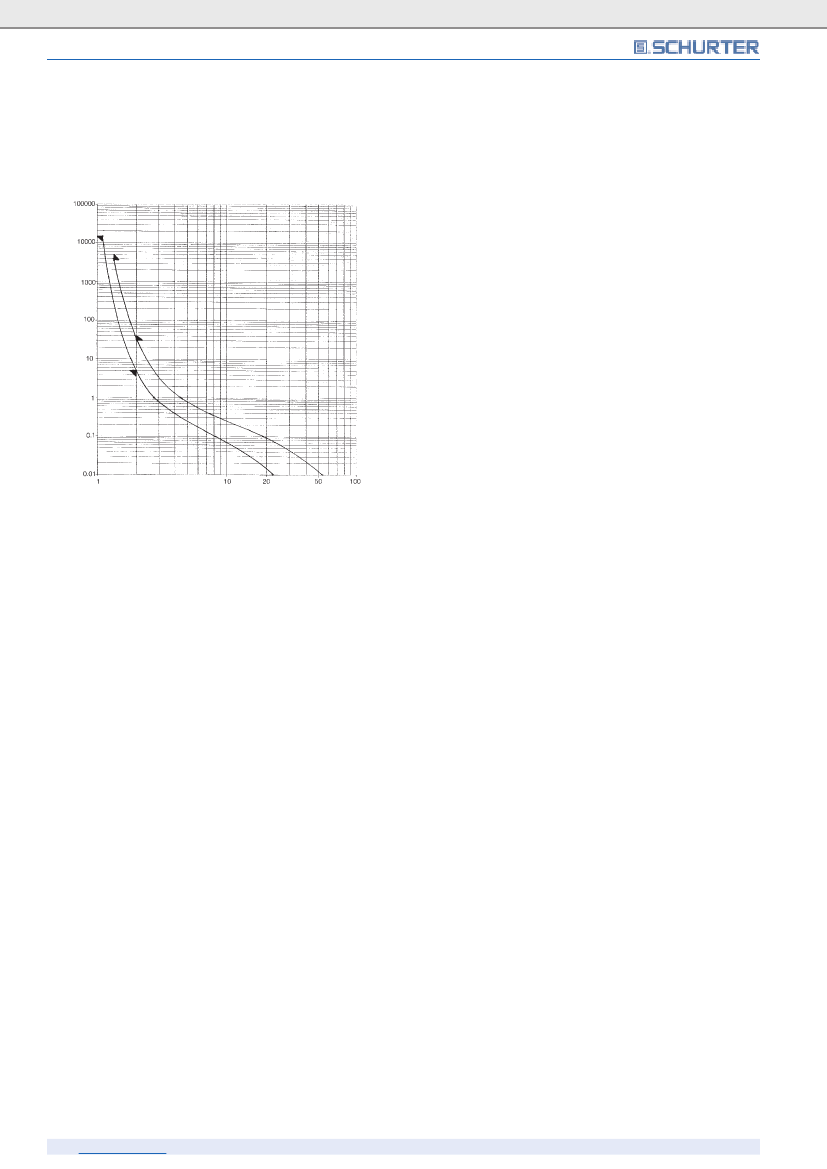

Time-Current Curves see last page

Standards

- UL 248-14

- CSA C22.2 no. 248.14

Weblinks

Approvals:

http://www.schurter.com/approvals

RoHS:

http://www.schurter.com/rohs

Technical Data

Rated Voltage

Rated Current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Tube

Material: Endcaps

Unit Weight

Stock Conditions

Product Marking

125/250 VAC

0.63 - 15 A

35 A - 10 kA

Time-Lag T

Fuseholder / Clip

-40 °C to 85 °C

40/085/21 acc. to IEC 60068-1

Glass

Nickel-Plated Copper Alloy

2g

0 °C to 60 °C, max. 70% r.h.

Current Rating, Voltage Rating, Characte-

ristic, Approvals

Length

6.3 mm

Dimensions

20

-4

+3

ø 6.35

±0.1

31.8

±0.8

Pre-Arcing Time

Rated Current In

0.02 A - 2 A

2.5 A - 20 A

1.1 x In

min.

4h

1.35 x In

max.

60 min

2.0 x In

min

5s

2.0 x In

max

30 s

1

www.schurter.com

34.5234 Related Products

	34.5234	34.5218	0034.5226	0034.5234	34.5211	34.5212	34.5226	0034.5212
Description	Electric Fuse, TIME DELAY BLOW ELECTRIC FUSE, 2.8A, 250VAC, 100A (IR), INLINE/HOLDER	Electric Fuse, TIME DELAY BLOW ELECTRIC FUSE, 0.4A, 250VAC, 35A (IR), INLINE/HOLDER	Electric Fuse, Time Delay Blow, 1.2A, 250VAC, 100A (IR), Inline/holder,	Electric Fuse, Time Delay Blow, 2.8A, 250VAC, 100A (IR), Inline/holder,	Electric Fuse, TIME DELAY BLOW ELECTRIC FUSE, 0.18A, 250VAC, 35A (IR), INLINE/HOLDER	Electric Fuse, TIME DELAY BLOW ELECTRIC FUSE, 0.19A, 250VAC, 35A (IR), INLINE/HOLDER	Electric Fuse, TIME DELAY BLOW ELECTRIC FUSE, 1.2A, 250VAC, 100A (IR), INLINE/HOLDER	Electric Fuse, Time Delay Blow, 0.19A, 250VAC, 35A (IR), Inline/holder,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	compliant	compliant	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY
body height	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm
Body length or diameter	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	126 J	1 J	18 J	126 J	-	-	18 J	-
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm
Pre-discharge time - minutes	30000 ms	30000 ms	30000 ms	30000 ms	30000 ms	30000 ms	30000 ms	30000 ms
Rated breaking capacity	100 A	35 A	100 A	100 A	35 A	35 A	100 A	35 A
Rated current	2.8 A	0.4 A	1.2 A	2.8 A	0.18 A	0.19 A	1.2 A	0.19 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Base Number Matches	1	1	1	1	1	1	1	1
