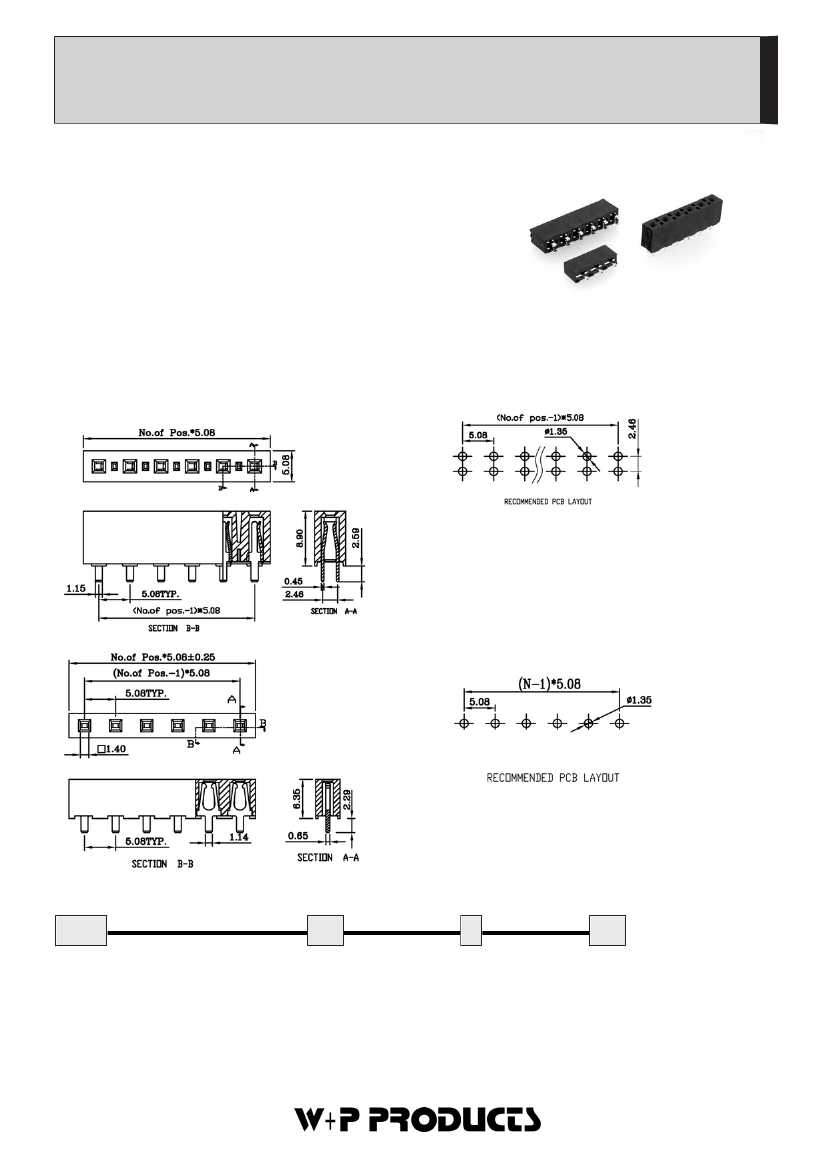

39511100: DescriptionBoard Connector, 11 Contact(s), Female, Straight, Solder Terminal, Plug; CategoryThe connector The connector; File Size154KB，1 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

39511100 Overview

Board Connector, 11 Contact(s), Female, Straight, Solder Terminal, Plug

39511100 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.35 inch
body length	2.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P11
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	395
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Termination type	SOLDER
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

395 396

Buchsenleiste Power-Kontakt RM 5,08mm

Female Header Power-Contact 5,08mm Pitch

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Kupferlegierung

Contact Material

Copper alloy

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

9

Isolationswiderstand

> 1x10

Ω

9

Insulation Resistance

> 1x10

Ω

Spannungsfestigkeit

500V

AC

@ 1min

Test Voltage

500V

AC

@ 1min

Nennstrom

7,9A (395) 6,8A (396)

Current Rating

7,9A (395) 6,8A (396)

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Series

*

Contacts

*

Rows

Plating

*

395

Doppelfederkontakt

Double spring contact

396

Gabelkontakt

Bracket contact

05

02-20

1

50

00

Vergoldet

Gold plated

50

Verzinnt

Tin plated

60

Sel. Au/Sn

(

*

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

*

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

1

39511100 Related Products

	39511100	39512100	39513100	39509100	39514100	39507100	39608100	39516100
Description	Board Connector, 11 Contact(s), Female, Straight, Solder Terminal, Plug	Board Connector, 12 Contact(s), Female, Straight, Solder Terminal, Plug	Board Connector, 13 Contact(s), Female, Straight, Solder Terminal, Plug	Board Connector, 9 Contact(s), Female, Straight, Solder Terminal, Plug	Board Connector, 14 Contact(s), Female, Straight, Solder Terminal, Plug	Board Connector, 7 Contact(s), Female, Straight, Solder Terminal, Plug	Board Connector, 8 Contact(s), Female, Straight, Solder Terminal, Plug	Board Connector, 16 Contact(s), Female, Straight, Solder Terminal, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.25 inch	0.35 inch
body length	2.2 inch	2.4 inch	2.6 inch	1.8 inch	2.8 inch	1.4 inch	1.6 inch	3.2 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P11	S0P12	S0P13	S0P9	S0P14	S0P7	S0P8	S0P16
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	395	395	395	395	395	395	396	395
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.09 inch	0.102 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	11	12	13	9	14	7	8	16
Maker	W+P Products GmbH	-	-	W+P Products GmbH	W+P Products GmbH	W+P Products GmbH	W+P Products GmbH	W+P Products GmbH
Base Number Matches	1	1	1	1	1	1	-	-
