5300-039-032-52 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5300-039-032-52

5300-039-032-52: DescriptionUSB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

5300-039-032-52 Overview

USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

5300-039-032-52 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Board mount options	LOCATING POSTS
body width	0.243 inch
subject depth	0.478 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
Insulation resistance	10000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	5300
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLAR PIN POSITION
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	GOLD
Shell material	COPPER ALLOY
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

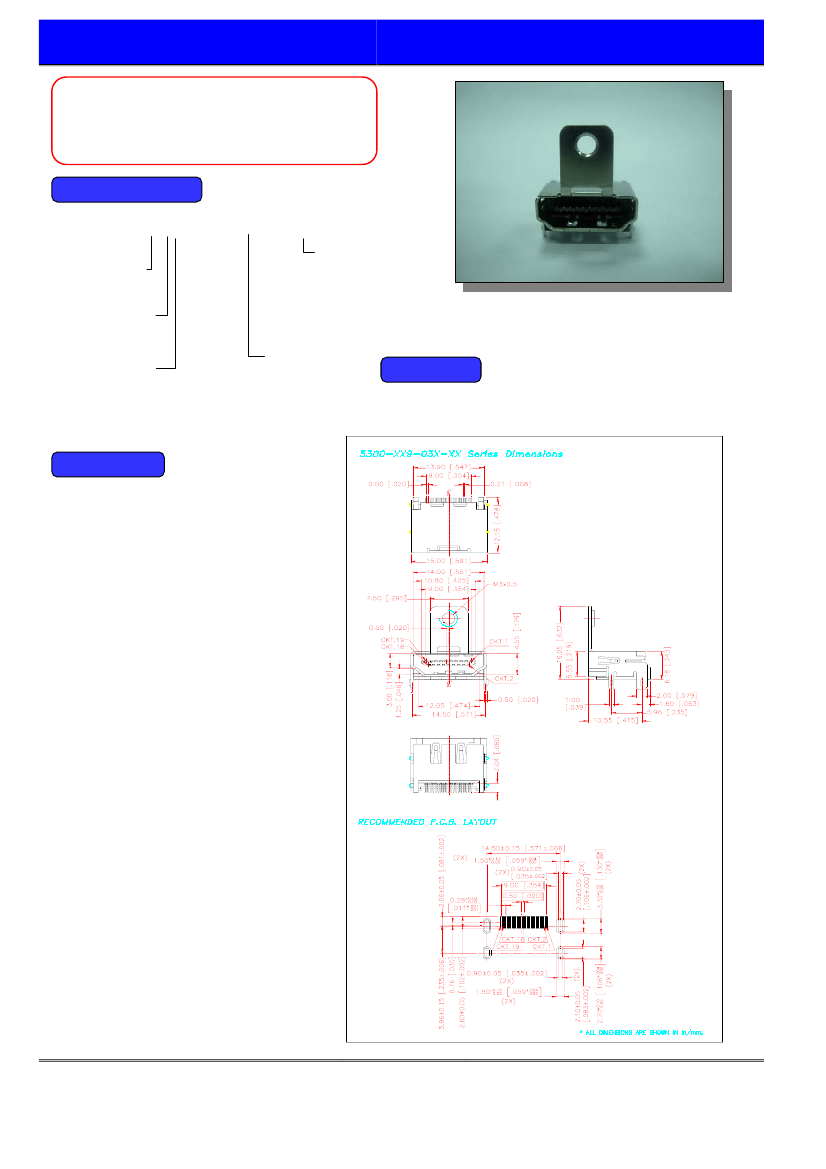

TEKCON

5300 Series

HDMI RIGHT ANGLE HEADER 19PIN SMT

TYPE TOP SCREW

Ordering Information

http://www.tekcon.com.tw

5300 - XX9 – 03X – XX

Contact Area Plating:

0:Gold/Flash/Tin

5:15u”Gold/Tin

3:30u”Gold/Tin

Shell Plating;

1:50u”Ni

2:100u” Tin over 50u” Ni

3:Glod plating over all

No of Contact：19Pin

51:Shell Without

Salient Point, Bright Tin

52:Shell With

Salient Point, Bright Tin

E1:Shell Without

Salient Point, Matte Tin

E2:Shell With

Salient Point, Matte Tin

Packing Type: 1- Tray

2-Reel

Dimensions

Specification

Material:

♦

Insulator:

Thermoplastic UL 94V-0

Color：Black

♦

Contact:

Copper Alloy

♦

Shell：Copper

Alloy

Electrical:

♦

Contact Current Rating: 0.5

♦

Rated voltage:40V AC.

♦

Dielectric Withstanding Voltage:

500V AC

♦

Contact Resistance:

Contact (30 Milliohms Max.)

Shell (50 Milliohms Max.)

♦

Insulation Resistance:

100 Megaohms Min.(Unmated)

10 Megaohms Min.(Mated)

Mechanical:

♦

Insertion Force:4.5Kg

(MAX)

♦

Withdrawal Fore: 0.5 Kg

~ 4.0 Kg

♦

Durability：10,000 Cycles.

Enviromental:

♦

Temperature range:

-20℃ to + 85℃

All Dimensions are shown in in/mm.

The above ordering data is for our standard products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.
