LM8560 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> LM8560

LM8560: DescriptionDigital Alarm Clock; CategoryOther integrated circuit (IC) Consumption circuit; File Size193KB，7 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LM8560 Overview

Digital Alarm Clock

LM8560 Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	SDIP,
Contacts	28
Reach Compliance Code	unknow
Is Samacsys	N
alarm	YES
application	ALARM CLOCKS; CLOCK-RADIOS
Battery empty indicator	NO
Commercial integrated circuit types	LED CLOCK
display mode	DIGITAL
Frequency fine tuning	NO
JESD-30 code	R-PDIP-T28
length	27.2 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	4.95 mm
surface mount	NO
technology	PMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

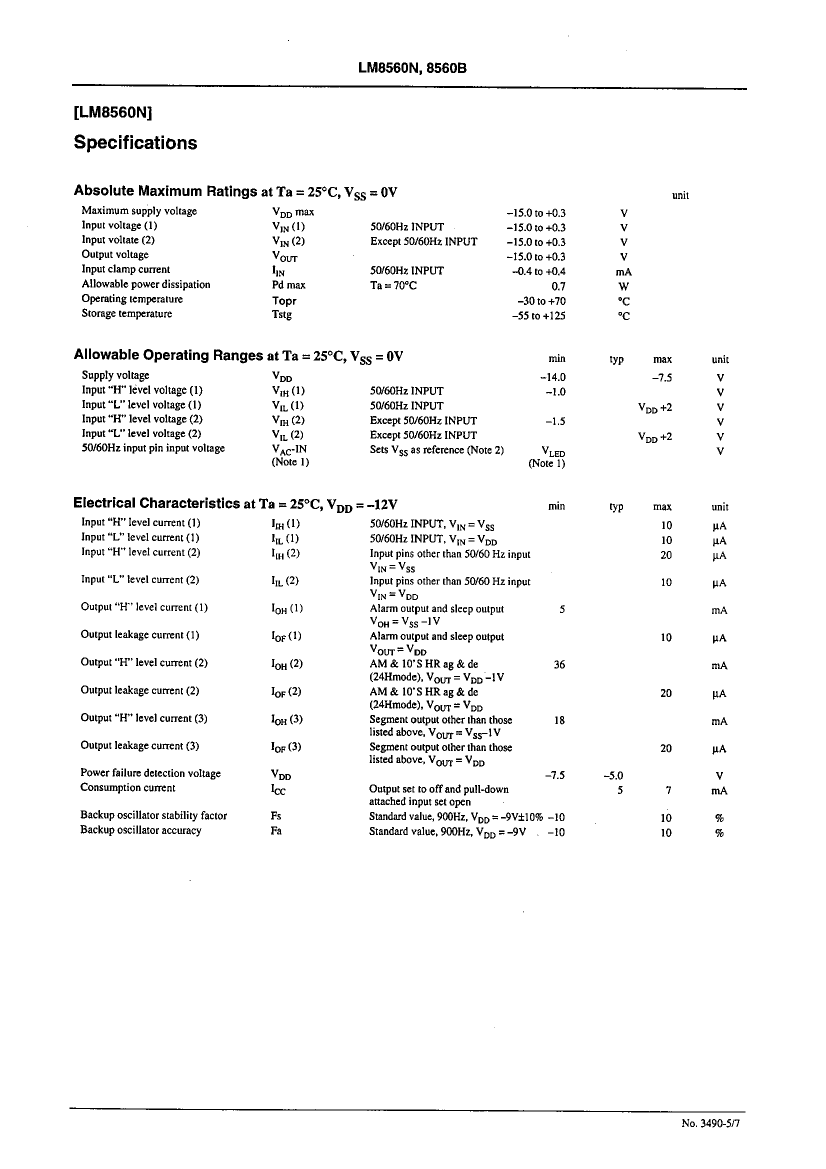

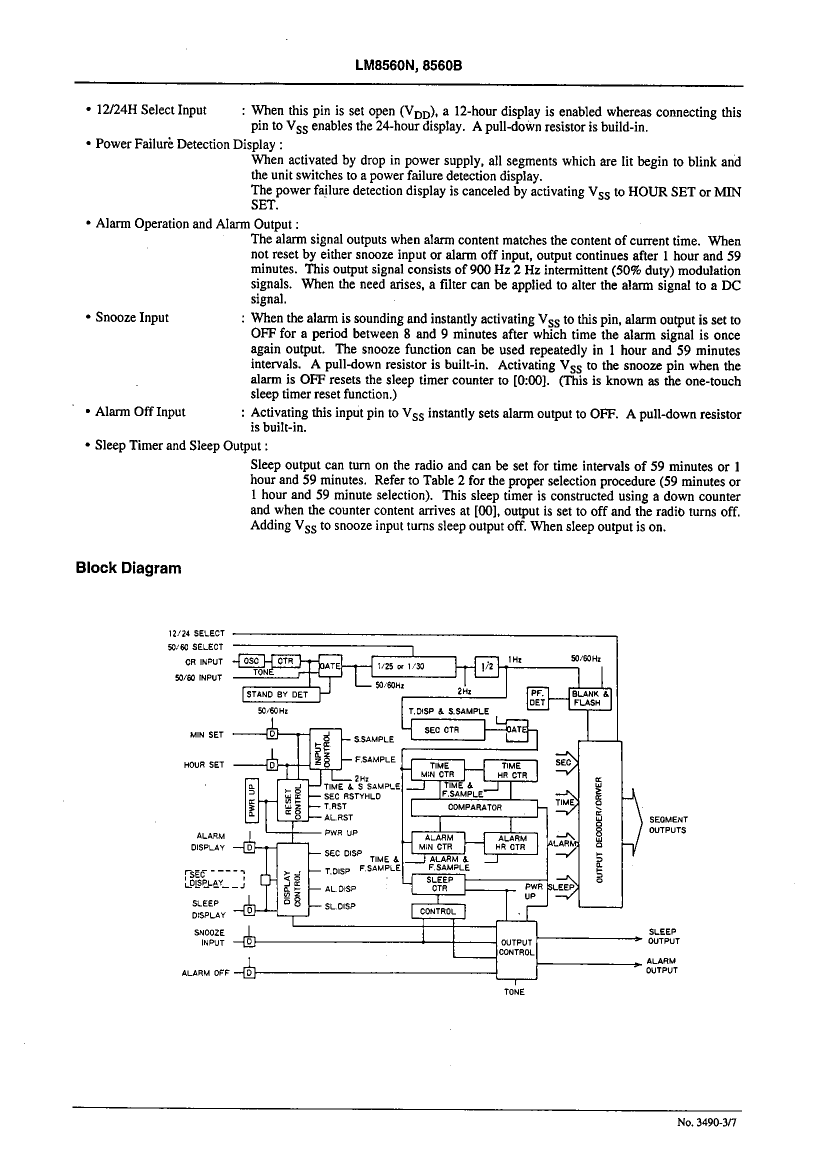

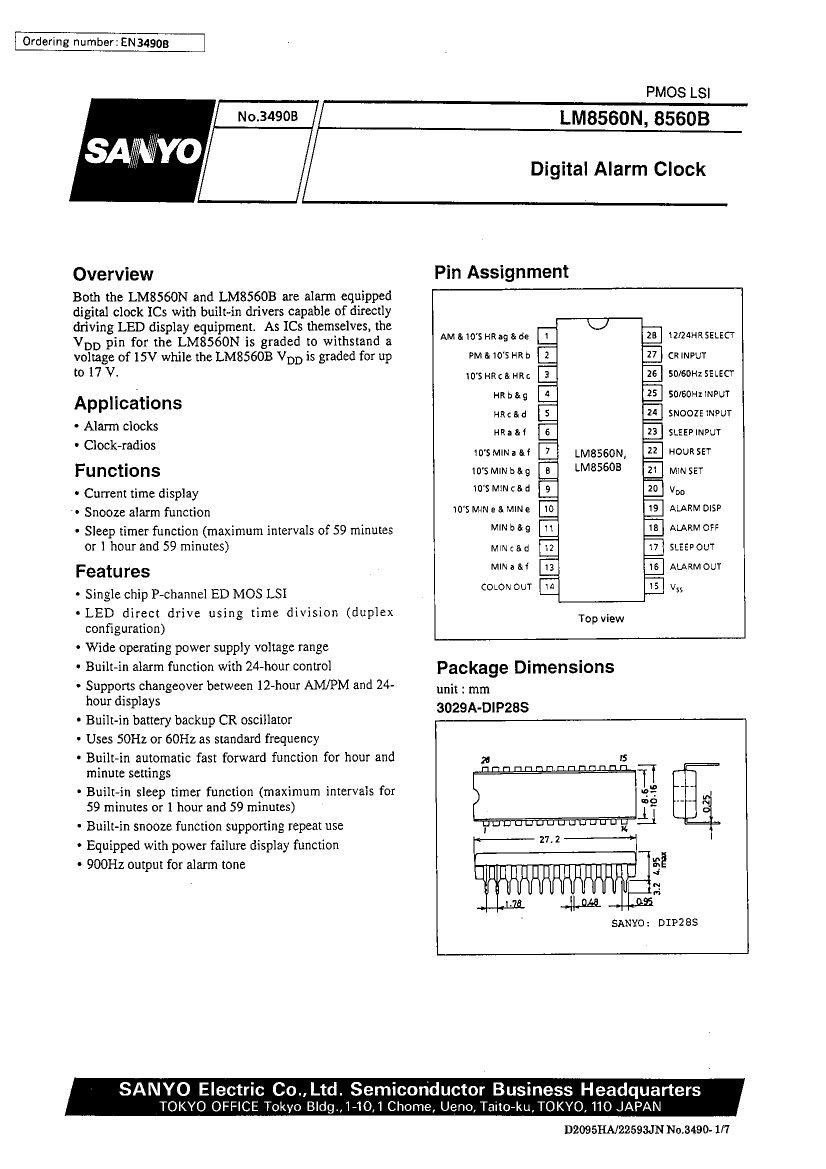

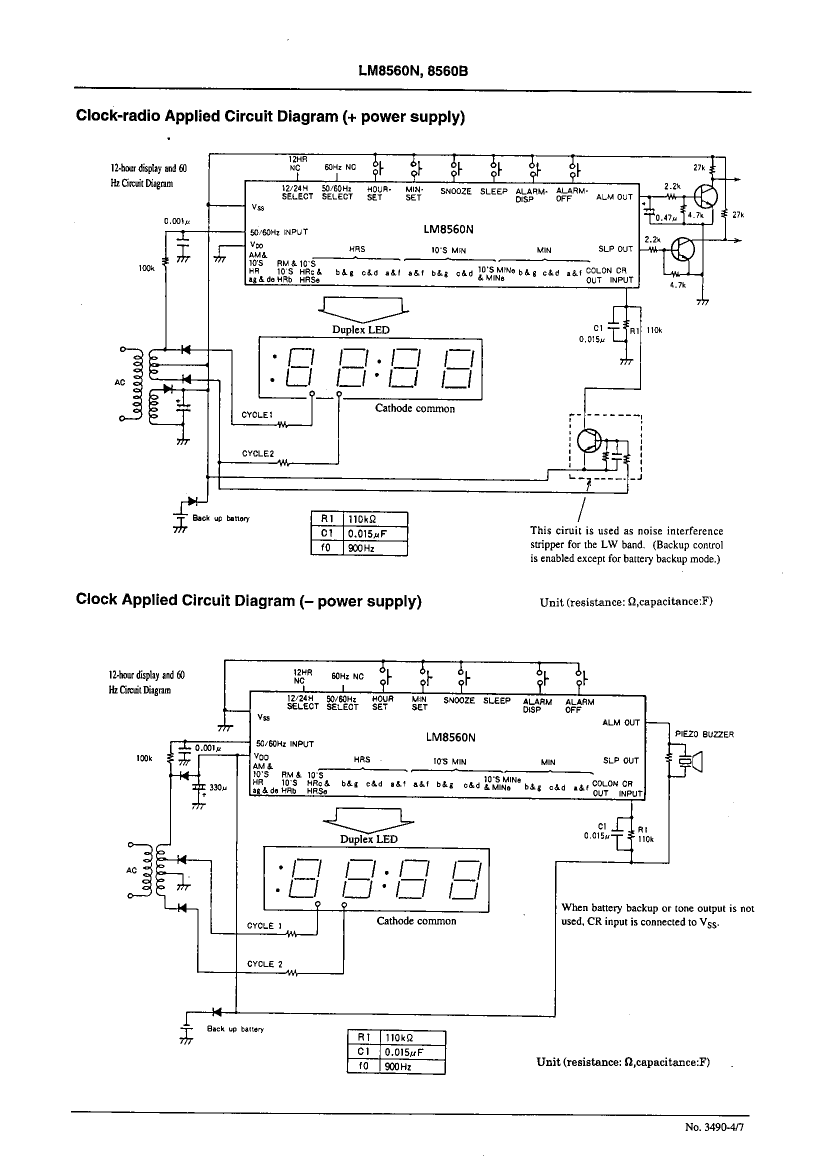

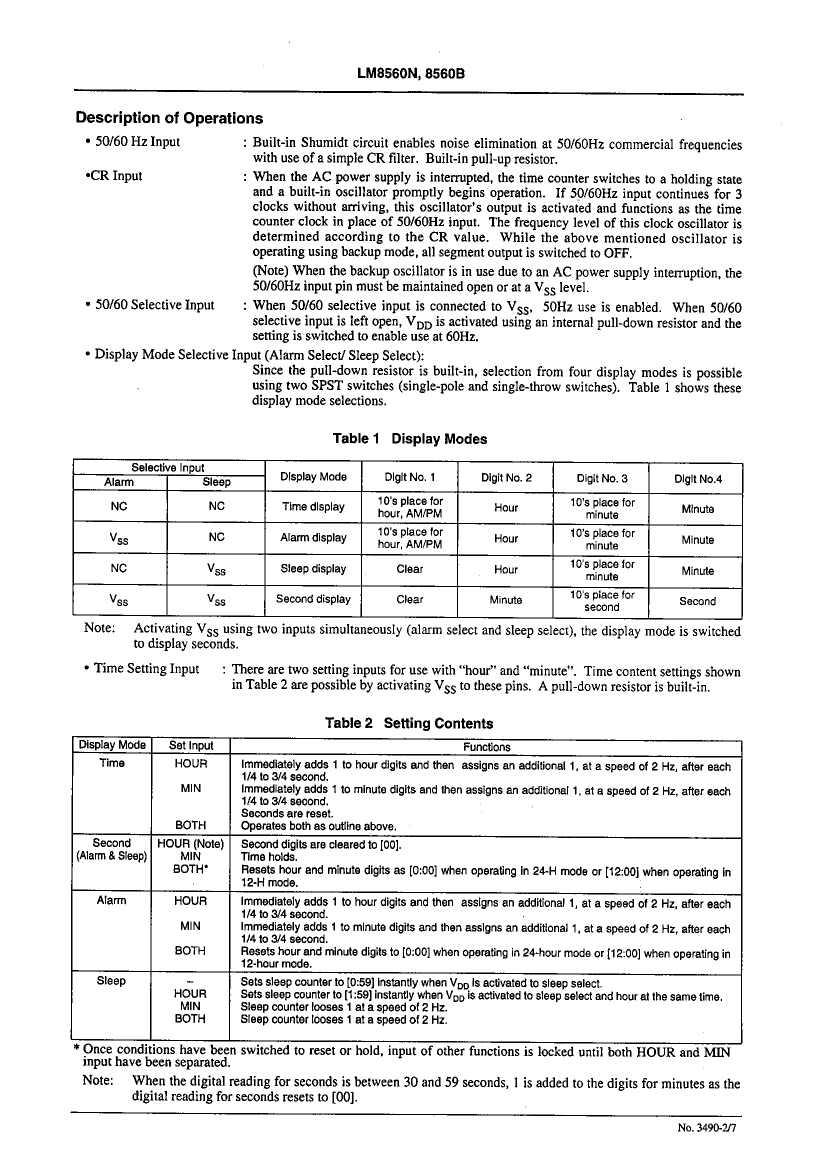

Preview

Download Datasheet

View All

LM8560 Related Products

	LM8560	LM8560N	LM8560B
Description	Digital Alarm Clock	Digital Alarm Clock	Digital Alarm Clock
Parts packaging code	DIP	DIP	DIP
package instruction	SDIP,	SDIP, DIP28,.4	SDIP, DIP28,.4
Contacts	28	28	28
Reach Compliance Code	unknow	unknow	unknow
Is Samacsys	N	N	N
alarm	YES	YES	YES
application	ALARM CLOCKS; CLOCK-RADIOS	ALARM CLOCKS; CLOCK-RADIOS	ALARM CLOCKS; CLOCK-RADIOS
Battery empty indicator	NO	NO	NO
Commercial integrated circuit types	LED CLOCK	LED CLOCK	LED CLOCK
display mode	DIGITAL	DIGITAL	DIGITAL
Frequency fine tuning	NO	NO	NO
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
length	27.2 mm	27.2 mm	27.2 mm
Number of functions	1	1	1
Number of terminals	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP	SDIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.95 mm	4.95 mm	4.95 mm
surface mount	NO	NO	NO
technology	PMOS	PMOS	PMOS
Temperature level	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.778 mm	1.778 mm	1.778 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1
Is it Rohs certified?	-	incompatible	incompatible
JESD-609 code	-	e0	e0
Encapsulate equivalent code	-	DIP28,.4	DIP28,.4
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
power supply	-	-7.5/-14 V	-6.5/-14 V
Maximum slew rate	-	7 mA	7 mA
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
