Part Number

Search

5411FM

Description
AND Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14
Categorylogic    logic
File Size57KB,1 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/

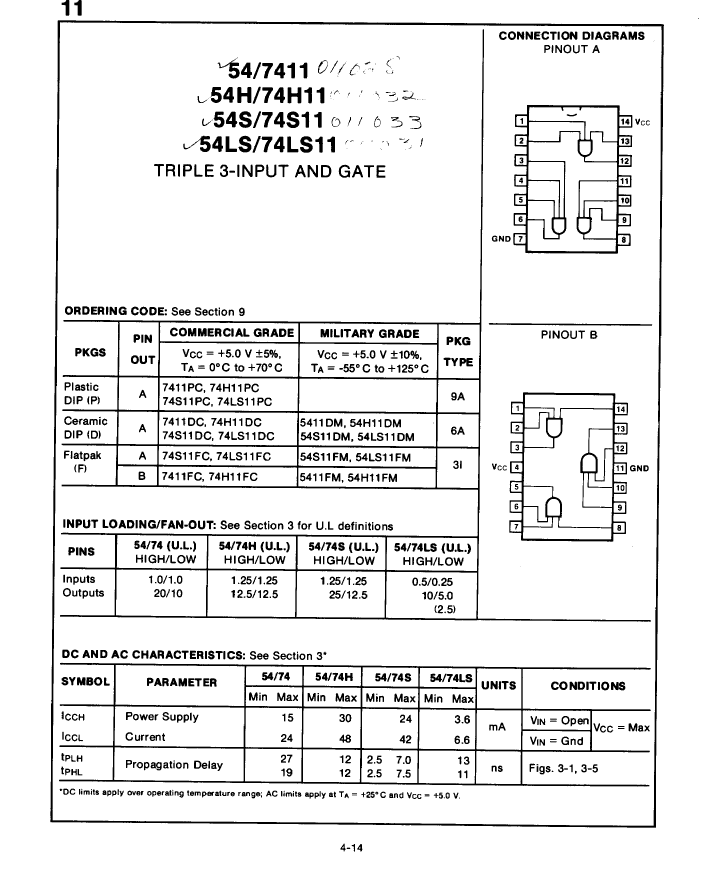

Download Datasheet Parametric View All

5411FM Overview

AND Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14

5411FM Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerFairchild
package instructionDFP-14
Reach Compliance Codecompliant
seriesTTL/H/L
JESD-30 codeR-PDFP-F14
JESD-609 codee0
Logic integrated circuit typeAND GATE
MaximumI(ol)0.016 A
Humidity sensitivity level2A
Number of functions3
Number of entries3
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)250
power supply5 V
Maximum supply current (ICC)24 mA
Prop。Delay @ Nom-Sup40 ns
propagation delay (tpd)27 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
Base Number Matches1
