5962-8944602LA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-8944602LA

5962-8944602LA: DescriptionPipeline Register, 8-Bit, CMOS, CDIP24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size216KB，8 Pages; ManufacturerTRW Inc

Download Datasheet Parametric Compare View All

5962-8944602LA Overview

Pipeline Register, 8-Bit, CMOS, CDIP24

5962-8944602LA Parametric

Parameter Name	Attribute value
Maker	TRW Inc
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ
boundary scan	NO
maximum clock frequency	28 MHz
External data bus width	8
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
low power mode	NO
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	8
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	35 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER
Base Number Matches	1

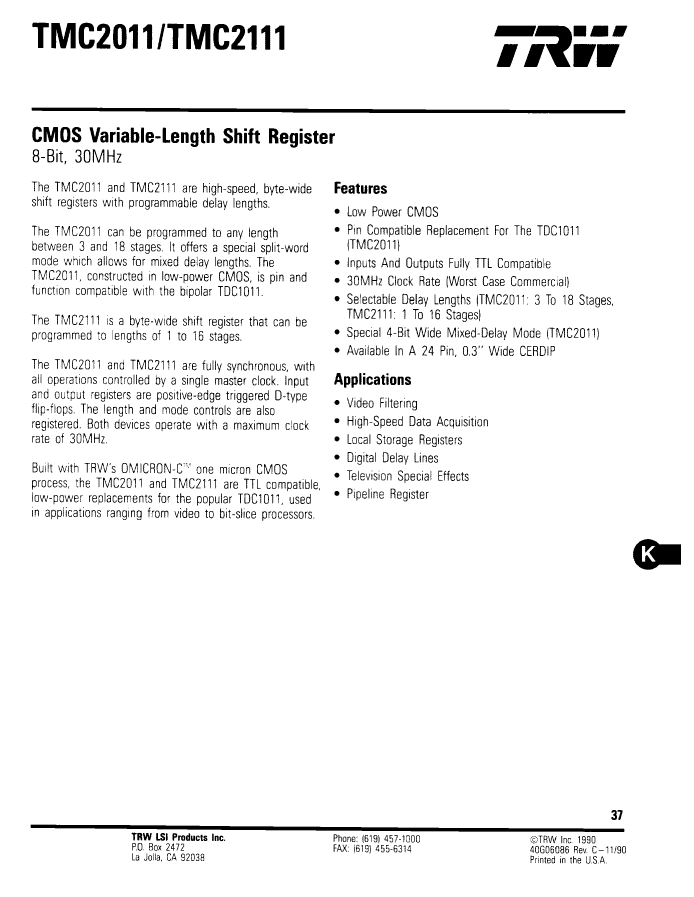

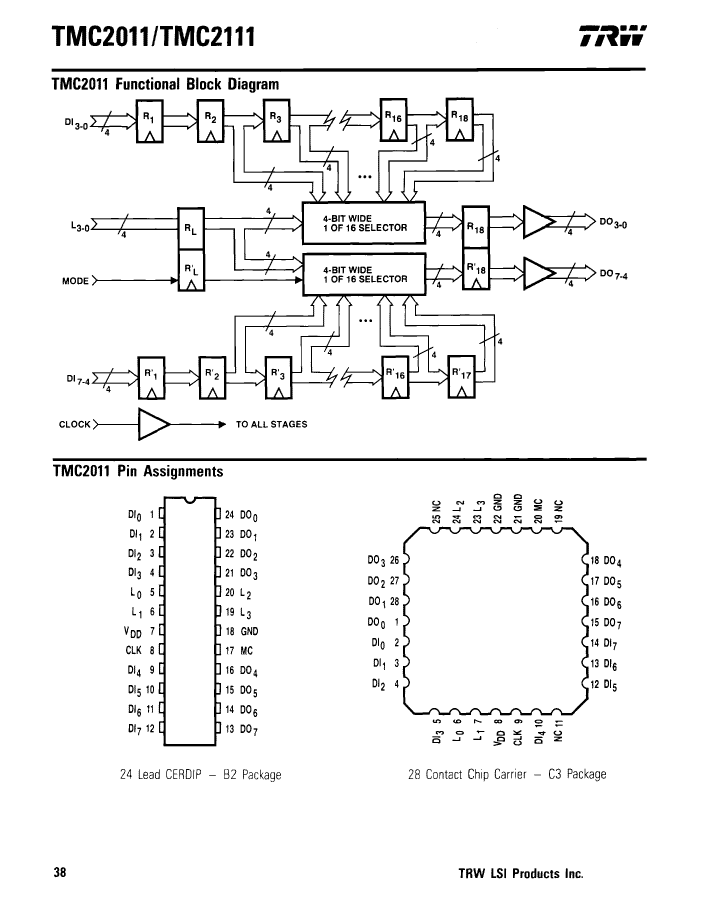

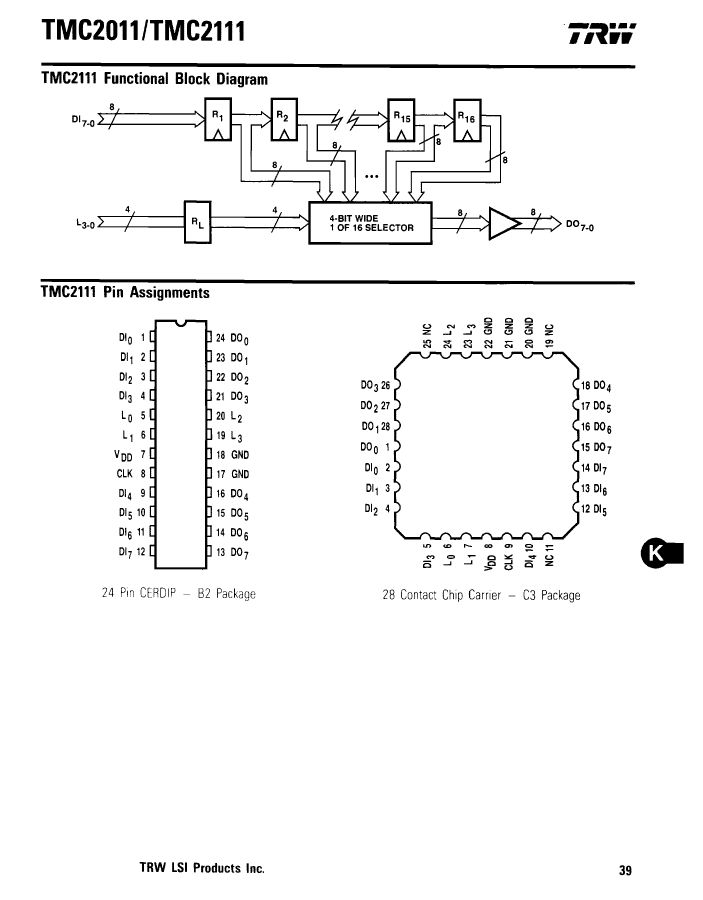

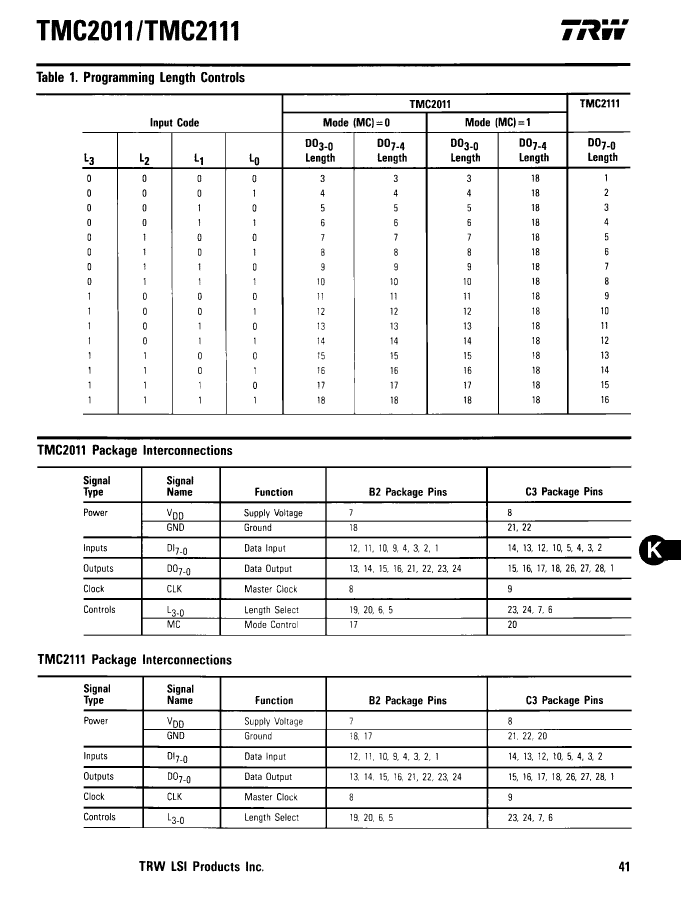

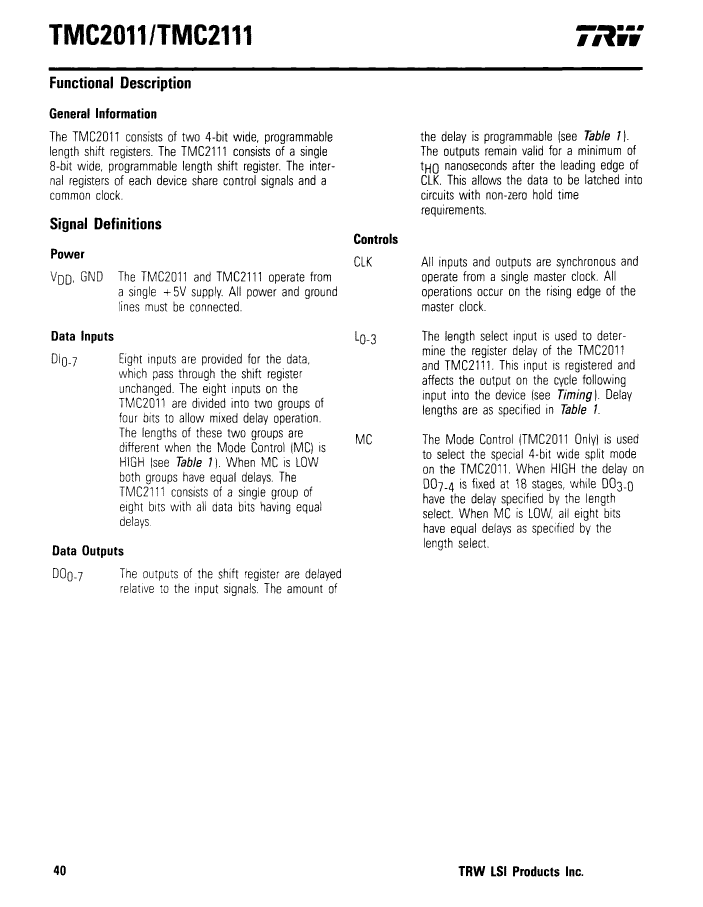

Preview

Download Datasheet

View All

5962-8944602LA Related Products

	5962-8944602LA	5962-8944601LA	5962-89446023A	5962-89446013A
Description	Pipeline Register, 8-Bit, CMOS, CDIP24	Pipeline Register, 8-Bit, CMOS, CDIP24	Pipeline Register, 8-Bit, CMOS, PQCC28	Pipeline Register, 8-Bit, CMOS, PQCC28
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ	OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ	OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ	OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 30MHZ
boundary scan	NO	NO	NO	NO
maximum clock frequency	28 MHz	28 MHz	28 MHz	28 MHz
External data bus width	8	8	8	8
JESD-30 code	R-CDIP-T24	R-CDIP-T24	S-PQCC-N28	S-PQCC-N28
JESD-609 code	e0	e0	e0	e0
low power mode	NO	NO	NO	NO
Number of terminals	24	24	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	8	8	8	8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	35 mA	35 mA	35 mA	35 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER
Base Number Matches	1	1	1	1
Maker	TRW Inc	TRW Inc	-	TRW Inc
