LM5Q31

Description
Color STN-LCD Module(FA/POS/Measuring instrument)
CategoryLED optoelectronic/LED    photoelectric
File Size18KB,1 Pages
ManufacturerSHARP
Websitehttp://sharp-world.com/products/device/
Download Datasheet Parametric View All

LM5Q31 Overview

Color STN-LCD Module(FA/POS/Measuring instrument)

LM5Q31 Parametric

Parameter NameAttribute value
MakerSHARP
Reach Compliance Codeunknow
Number of horizontal pixels320 Pixel
Minimum operating temperature
total depth15 mm
total height100 mm
total length134 mm
Number of vertical pixels240 Pixel
Observation area height76 mm
Observation area length101 mm

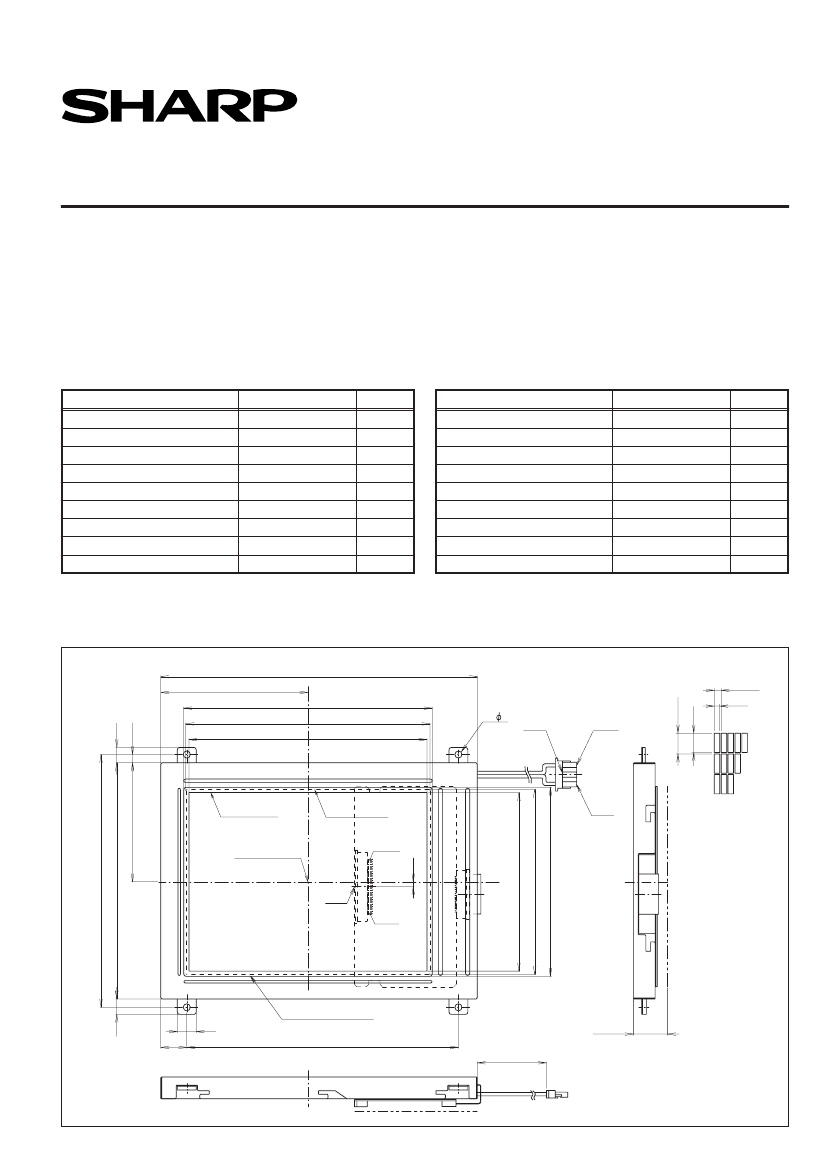

New Product
LM5Q31
Features
s
12.6 cm [5"] QVGA format
s
Single scan (1/250 Duty)
s
4 096 colors
Color STN-LCD Module
(FA/POS/Measuring instrument)
s
Motion picture compatible:
Fast response time (200 ms)/High contrast (30:1)
s
Built-in gray scale controller/Digital 4-bit/color interface
Specifications
Parameter
Display size
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Panel type
Panel mode
Contrast ratio
Response time
Brightness
*1...Triple super twisted nematic
Unit
12.6 [5.0]
320 x RGB x 240
0.105 x 0.315
100.8 x 75.6
*1
Transmissive
30 : 1
200
120
cm [ "]
dot
mm
mm
-
-
-
ms
cd/m
2
Parameter
Backlight type
1CCFT(D)
Duty ratio
1/250
Logic voltage
5.0 Vcon
Power consumption
3 710
Outline dimensions (W x H x D) 134.0 x 100.0 (113.0) x 15.0
Weight
165
Operating temperature
0 to +60
Storage temperature
-25 to +65
Unit
-
-
V
mW
mm
g
°C
°C
Outline Dimensions
134
62.3
105.2
103.4
100.775
4- 3
0.315P
0.29
unit : mm
0.105P
0.08
6.5
3.5
CN2
PIN3
RGBRG
3 2 1
50.4
ACTIVE AREA
CENTER LINE
(ACTIVE AREA)
VIEWING AREA
PIN24
(2)
75.575
78.3
80
PIN1
107
100
CN1
PIN1
BEZEL OPENING AREA
6.5
8
11
115
50
15MAX
