0.65mm Pitch SMT Board to Board Connector
DF15 Series
Corresponding to automatic mounting
The vacuum area is secured the automatic mounting
machine for vacuum.
Figure 1
sFeatures
1. Compatibility of Miniaturization with Service Efficiency
This series considers the service efficiency to set the pitch to 0.65mm, corresponding to the 0.5mm pitch DF12 series. This connector
widely covers the definition of the mounting space or the board to board size together with the DF12 series.
2. Broad Variations in Board to Board Size
The board to board size is specified at 1mm step between 4mm and 8mm.
Header/Receptacle
DF15#(3.2)-*DP-0.65V
DF15#(4.2)-*DP-0.65V
DF15#(6.2)-*DP-0.65V
DF15#(0.8)-*DS-0.65V
4
5
7
DF15#(1.8)-*DS-0.65V
5
6
8
Combinnation with H size Combinnation with H size
Note1: The stacking height is determined by adding the header and receptacle to the figures followed by the product name
DF15#.
Note2: The stacking height (H size) doesn't include the soldering paste thickness.

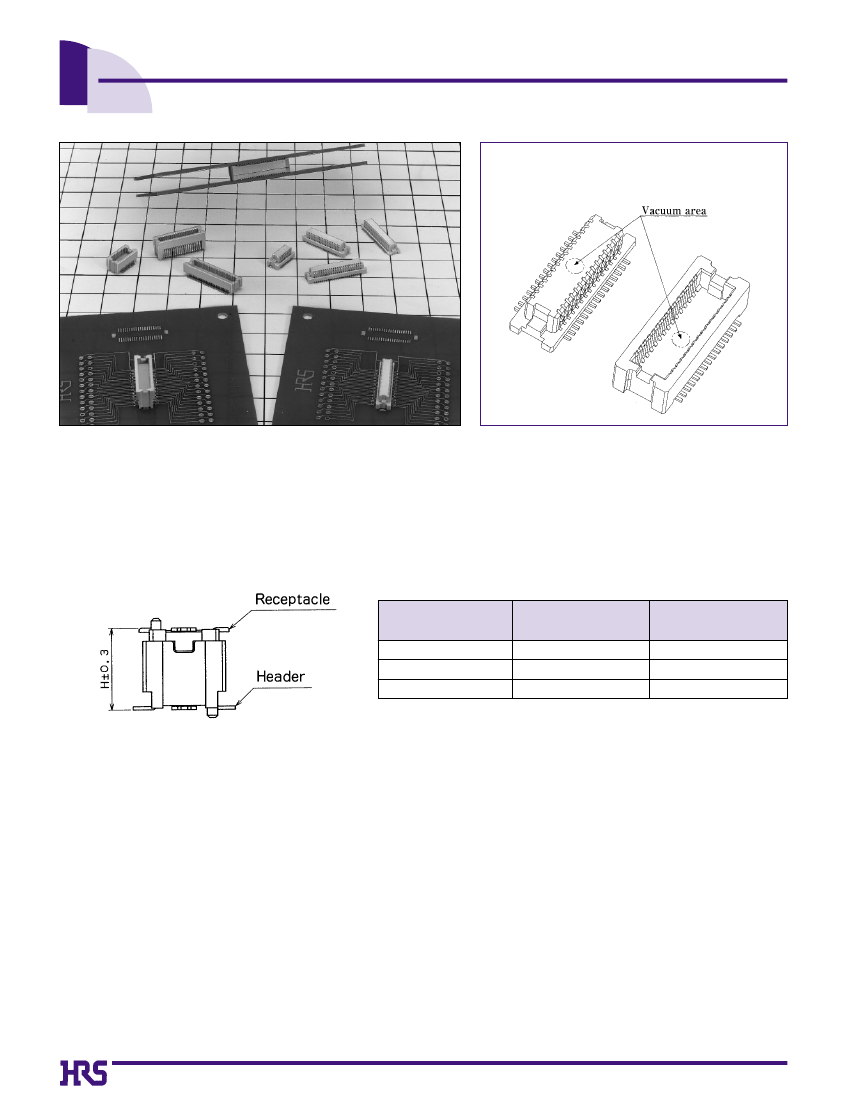

3. Correspond to Automatic Mounting
The connector has the vacuum area, which enables the automatic mounting by the embossed tape packaging.
4. Metal Fitting Available
The product including the metal fitting to prevent solder peeling is prepared, considering the mounting on FPC.
sApplications
Mobile phone, LCD(Liquid Crystal Display), MO(Optical Disk), Note PC
A286
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Rating
Current rating : 0.3A
Operating Temperature Range :
–35 to +85ç
(Note 1.) Storage Temperature Range :
–10 to +60ç
(Note 2.)
Storage Humidity Range : 40
to
70% (Note 2.)
Condition
100V DC
150V AC/1 minute
100mA
Voltage rating : 50V AC Operating Humidity Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
500M
ohms
min.
Specification
No flashover or insulation breakdown.
50m
ohms
max
No electrical discontinuity of 1µs or more
Contact resistance : 50m
ohms
max.
Insulation resistance: 500M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
(-55ç: 30 minutes 5
to
35ç: 10 minutes
(-85ç:
30 minutes 5
to
35ç: 10 minutes) 5 cycles
50 cycles
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max. Insulation resistance:250M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Product
Receptacle
Part
Insulator
Contact
Metal fitting
Insulator
Header
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Polyamide
Phosphor copper
Brass
Finish
Beige
Gold plated
Tin-lead plated
Beige
Gold plated
Tin-lead plated
Remarks
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
–––––––
Note: The gold plated product of pin herder consists of a contact area of gold plated and lead of tin-lead plated
sOrdering
Information
qReceptacle/Header
DF15
q
#
(
**
) -
*
DS - 0.65 V (
**
)
w
e
: DF15
r
t
y
u
i
r
Number of Contacts
20, 30, 40, 50
Fitting
K
Boss
K
K
t
Connector Type
DS : Double-row receptacle
DP : Double-row header
y
Contact Pitch
u
Contact type
V
: 0.8, 1.8
: 3.2, 4.2, 6.2
: Straight SMT type
i
(51) : Embossed tape packaging
: 0.65mm
q
Series Name
w
Type
Blank
A
B
C
e
Product height
Receptacle
Header
∞
K
∞
∞
∞
A287
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

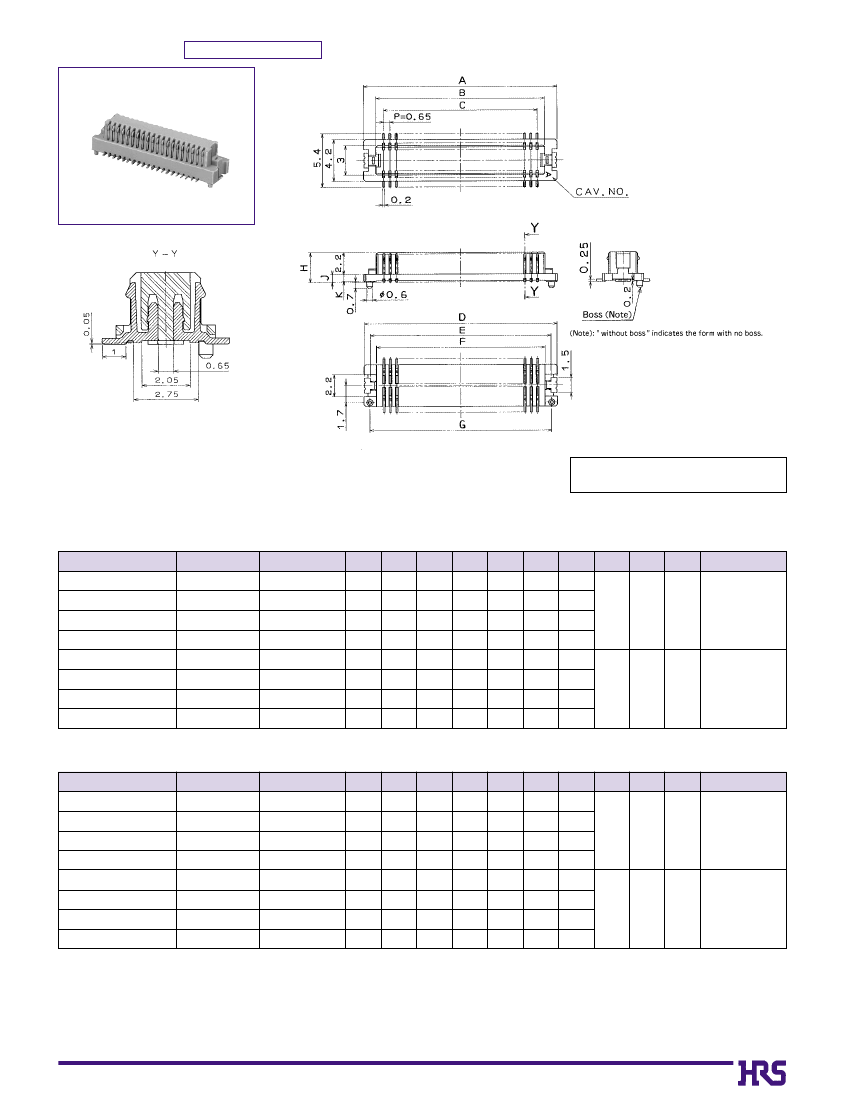

sReceptacle
Without metal fitting
[Specific No.]
–
* *
,
(*
*)
(51) :Gold plated, embossed tape packaging
qProduct
Height: 0.8mm product
Part Number
DF15A(0.8)-20DS-0.65V(
**
)
DF15A(0.8)-30DS-0.65V(**)
DF15A(0.8)-40DS-0.65V(
**
)
DF15A(0.8)-50DS-0.65V(
**
)
DF15C(0.8)-20DS-0.65V(
**
)
DF15C(0.8)-30DS-0.65V(
**
)
DF15C(0.8)-40DS-0.65V(
**
)
DF15C(0.8)-50DS-0.65V(
**
)
CL No.
677-0012-4-**
677-0013-7-**
677-0014-0-**
677-0015-2-**
677-0032-1-**
677-0033-4-**
677-0034-7-**
677-0035-0-**
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
16.35
19.6
9.85
13.1
16.35
19.6
B
7.35
10.6
13.85
17.1
7.35
10.6
13.85
17.1
C
5.85
9.1
12.35
15.6
5.85
9.1
12.35
15.6
D
7.35
10.6
13.85
17.1
7.35
10.6
13.85
17.1
E
8.65
11.9
15.15
18.4
–
–
–
–
3
0.8
0.7
3
0.8
0.7
F
G
H
Unit: mm
Remarks
Without metal
fitting
With boss
Without metal
fitting
Without boss
qProduct
Height: 1.8mm Product
Part Number
DF15A(1.8)-20DS-0.65V(
**
)
DF15A(1.8)-30DS-0.65V(
**
)
DF15A(1.8)-40DS-0.65V(
**
)
DF15A(1.8)-50DS-0.65V(
**
)
DF15C(1.8)-20DS-0.65V(
**
)
DF15C(1.8)-30DS-0.65V(
**
)
DF15C(1.8)-40DS-0.65V(
**
)
CL No.
677-0052-9-**
677-0053-1-**
677-0054-4-**
677-0055-7-**
677-0072-6-**
677-0073-9-**
677-0074-1-**
Number of Contacts
20
30
40
50
20
30
40
A
9.85
13.1
16.35
19.6
9.85
13.1
16.35
B
7.35
10.6
13.85
17.1
7.35
10.6
13.85
C
5.85
9.1
12.35
15.6
5.85
9.1
12.35
D
7.35
10.6
13.85
17.1
7.35
10.6
13.85
E
8.65
11.9
15.15
18.4
–
–
–
–
4
1.8
1.7
4
1.8
1.7
F
G
H
Unit: mm
Remarks
Without metal
fitting
With boss
Without metal
fitting
Without boss
19.6
15.6
17.1
50
17.1
DF15C(1.8)-50DS-0.65V(
**
) 677-0075-4-**
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A288
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

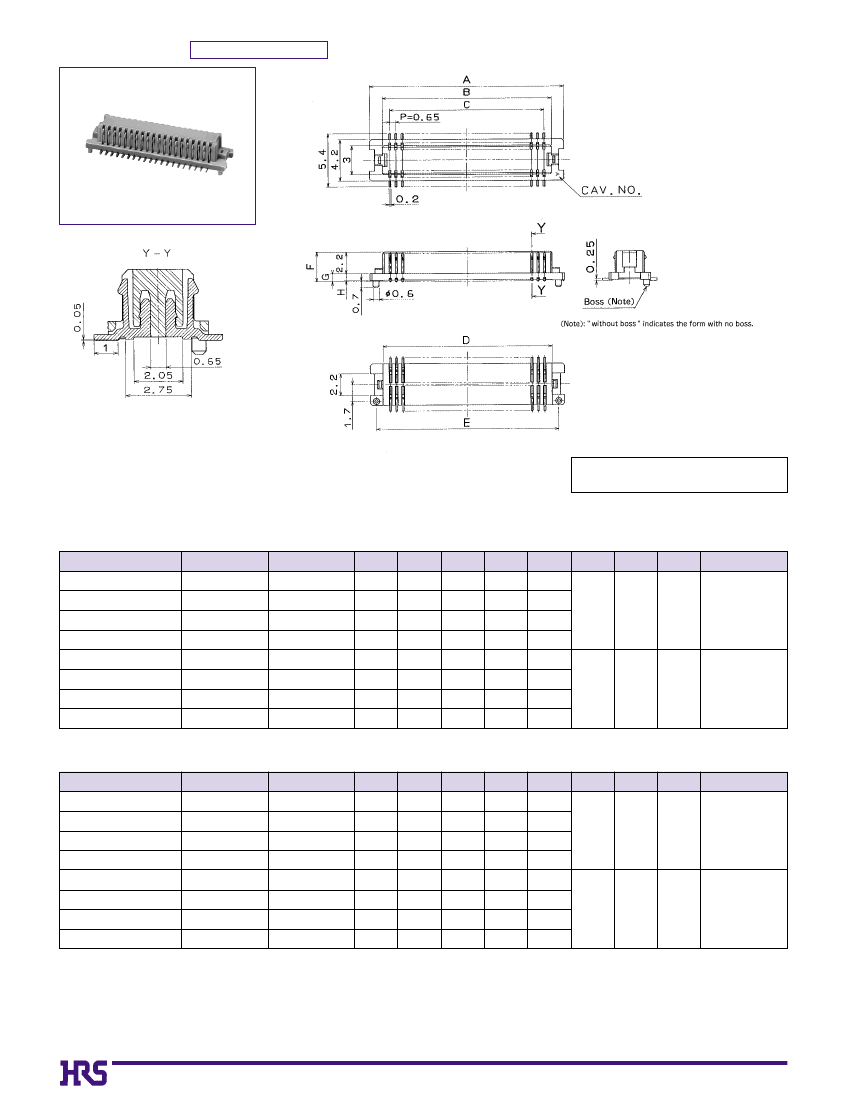

sReceptacle
With metal fitting
[Specific No.]
–
* *
,
(*
*)
(51) :Gold plated embossed tape packaging
qProduct
Height: 0.8mm Product
Part Number
DF15B(0.8)-20DS-0.65V(
**
)
DF15B(0.8)-30DS-0.65V(
**
)
DF15B(0.8)-40DS-0.65V(
**
)
DF15B(0.8)-50DS-0.65V(
**
)
DF15B(0.8)-20DS-0.65V(
**
)
DF15B(0.8)-30DS-0.65V(
**
)
DF15B(0.8)-40DS-0.65V(
**
)
DF15B(0.8)-50DS-0.65V(
**
)
CL No.
677-0002-0-**
677-0003-3-**
677-0004-6-**
677-0005-9-**
677-0022-8-**
677-0023-0-**
677-0024-3-**
677-0025-6-**
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
B
7.35
C
5.85
9.1
15.6
5.85
9.1
15.6
D
9.65
12.9
19.4
9.65
12.9
19.4
E
8.45
11.7
18.2
8.45
11.7
18.2
F
7.35
10.6
17.1
7.35
10.6
17.1
G
8.65
11.9
18.4
–
–
–
–
3
0.8
0.7
3
0.8
0.7
H
J
K
Unit: mm
Remarks
13.10 10.6
19.60 17.1
9.85
7.35
13.10 10.6
19.60 17.1
16.35 13.85 12.35 16.15 14.95 13.85 15.15
With metal fitting
With boss
16.35 13.85 12.35 16.15 14.95 13.85
With metal fitting
Without boss
qProduct
Height: 1.8mm Product
Part Number
DF15B(1.8)-20DS-0.65V(
**
)
DF15B(1.8)-30DS-0.65V(
**
)
DF15B(1.8)-40DS-0.65V(
**
)
DF15B(1.8)-50DS-0.65V(
**
)
DF15B(1.8)-20DS-0.65V(
**
)
DF15B(1.8)-30DS-0.65V(
**
)
DF15B(1.8)-40DS-0.65V(
**
)
CL No.
677-0042-5-**
677-0043-8-**
677-0044-0-**
677-0045-3-**
677-0062-2-**
677-0063-5-**
677-0064-8-**
Number of Contacts
20
30
40
50
20
30
40
A
9.85
13.1
19.6
9.85
13.1
B
7.35
10.6
17.1
7.35
10.6
C
5.85
9.1
15.6
5.85
9.1
D
9.65
12.9
19.4
9.65
12.9
E
8.45
11.7
18.2
8.45
11.7
F
7.35
10.6
17.1
7.35
10.6
17.1
G
8.65
11.9
18.4
–
–
–
–
4
1.8
1.7
4
1.8
1.7
H
J
K
Unit: mm
Remarks
16.35 13.85 12.35 16.15 14.95 13.85 15.15
With metal fitting
With boss
16.35 13.85 12.35 16.15 14.95 13.85
With metal fitting
Without boss
50
19.6 17.1 15.6 19.4 18.2
DF15B(1.8)-50DS-0.65V(
**
) 677-0065-0-**
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A289
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

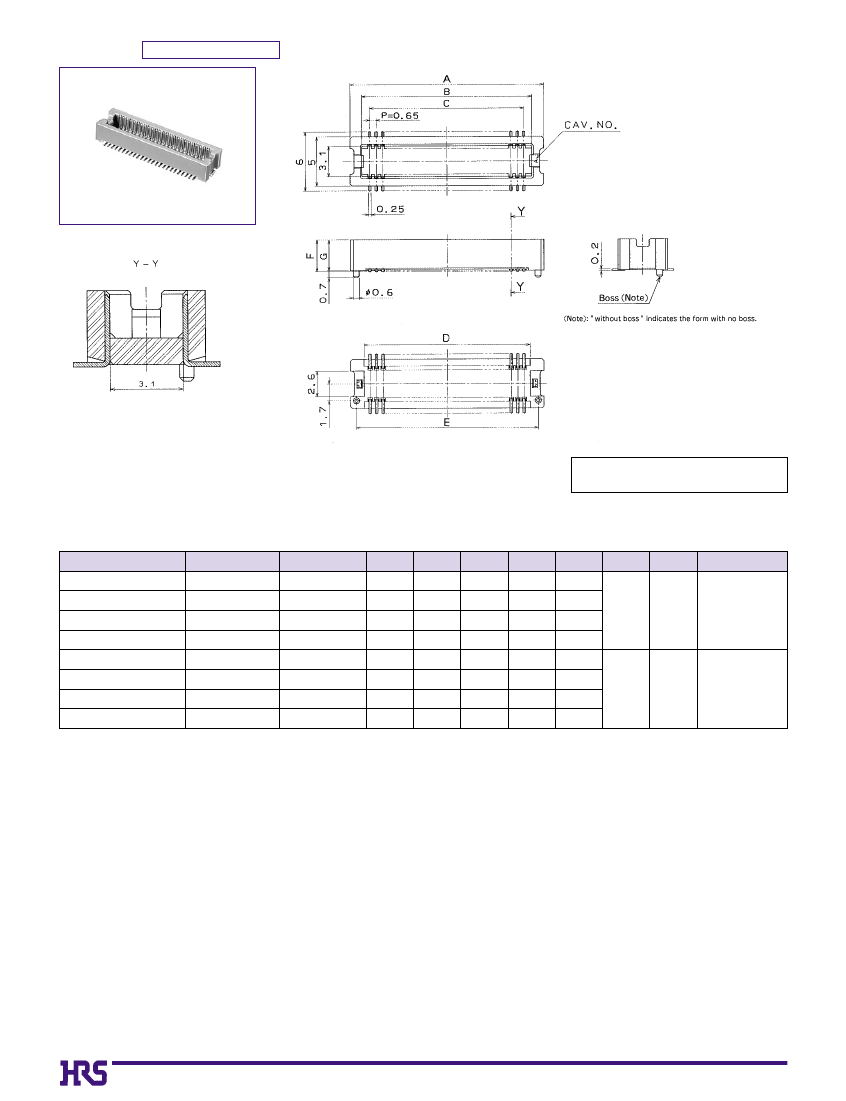

sHeader
Without metal fitting
[Specific No.]
–
* *
,
(*
*)
(51) :Gold plated embossed tape packaging
qProduct
Height: 3.2mm Product
Part Number
DF15A(3.2)-20DP-0.65V(
**
)
DF15A(3.2)-30DP-0.65V(
**
)
DF15A(3.2)-40DP-0.65V(
**
)
DF15A(3.2)-50DP-0.65V(
**
)
DF15C(3.2)-20DP-0.65V(
**
)
DF15C(3.2)-30DP-0.65V(
**
)
DF15C(3.2)-40DP-0.65V(
**
)
DF15C(3.2)-50DP-0.65V(
**
)
CL No.
677-0092-3-**
677-0093-6-**
677-0094-9-**
677-0095-1-**
677-0112-9-**
677-0113-1-**
677-0114-4-**
677-0115-7-**
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
16.35
19.6
9.85
13.1
16.35
19.6
B
7.45
10.7
13.95
17.2
7.45
10.7
13.95
17.2
C
5.85
9.1
12.35
15.6
5.85
9.1
12.35
15.6
D
7.05
10.3
13.55
16.8
7.05
10.3
13.55
16.8
E
8.65
11.9
15.15
18.4
–
–
–
–
3.2
3.1
3.2
3.1
F
G
Unit: mm
Remarks
Without metal
fitting
With boss
Without metal
fitting
Without boss
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
Configure FRDM-64K to DAPLINK, download the k20dx_frdmk64f_if_crc_legacy_0x5000.bin file!Then, cut off J11 on the board so that DAPLINK can debug the external chip (NRF51822) through J9, and then conn...
Experts, is there any way to connect a USB light to the computer or connect a light in other ways, so that when there is a new message in the chat software, the light will automatically light up or fl...
There are many different ways of human-computer interaction. The more common ones are listed below:
Mouse interaction: Using a mouse to operate a computer and interact was the most common human...[Details]
While
the solid-state battery
industry is still engaged in a long technological marathon for
the "ultimate solution" for
electric vehicles
, some companies have begun looking for mor...[Details]
Robotics
has become
LiDAR
's "second growth curve."
While LiDAR was still battling with its "pure vision" rivals in the automotive field, another field ignited the demand f...[Details]
The all-new MG4 was recently officially announced on the Ministry of Industry and Information Technology's (MIIT) new vehicle announcement. The all-new MG4's semi-solid-state battery version addres...[Details]
As the scale and business applications of national e-government networks continue to expand, the data and services transmitted over them are becoming increasingly sensitive and critical. To protect...[Details]
The complexity of the integrated circuits (ICs) used in electronic systems in vehicles is increasing. They aim to execute artificial intelligence (AI) algorithms to control autonomous driving funct...[Details]
Normally, we determine our location and where we want to go by comparing our surroundings with observation and simple GPS tools. However, this kind of reasoning is very difficult for self-driving c...[Details]
Keysight Technologies is combining its electromagnetic simulator with Synopsys' AI-driven RF design migration flow to create an integrated design flow for migrating from TSMC's N6RF+ process techno...[Details]
Plessey Semiconductors has been acquired by Haylo Labs, which was established in March last year with a $100 million, five-year loan from Chinese technology company Goertek.
Haylo Labs w...[Details]
Magna's integrated in-cabin perception system fuses vision and millimeter-wave radar data to detect the presence of passengers, identify stranded children, monitor driver fatigue and vital signs, a...[Details]
On August 21st, BYD announced the launch of its next-generation "Little White Pile" product, the "Lingchong"
charging
pile
, which is now available for general sale. This charging pile feat...[Details]
Introduction: In digital circuit calculations, there is no concept of decimal points. You know where the decimal is, but the circuit does not know where the decimal point is. Therefore, you need to...[Details]
With the prevalence of online conferencing, live streaming, and voice communication in gaming, high-quality audio input devices are becoming increasingly important. To this end, XMOS, an expert in ...[Details]
Since the beginning of the 21st century, with the rapid development of my country's urban and rural economies and the improvement of people's living standards, more and more people have begun to ow...[Details]
summary
Modern cars strive to provide the same comfort and entertainment features found in the home, resulting in explosive growth in demand for electronic control units (ECUs). Howe...[Details]
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
