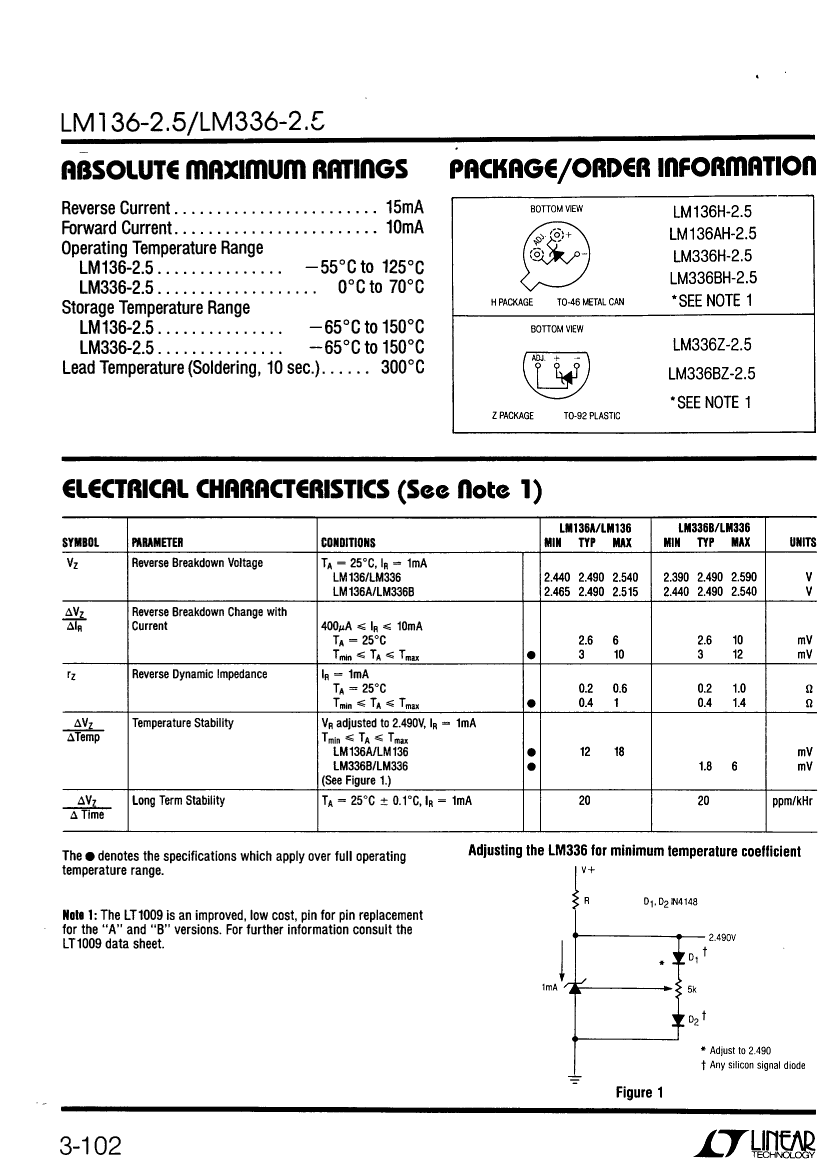

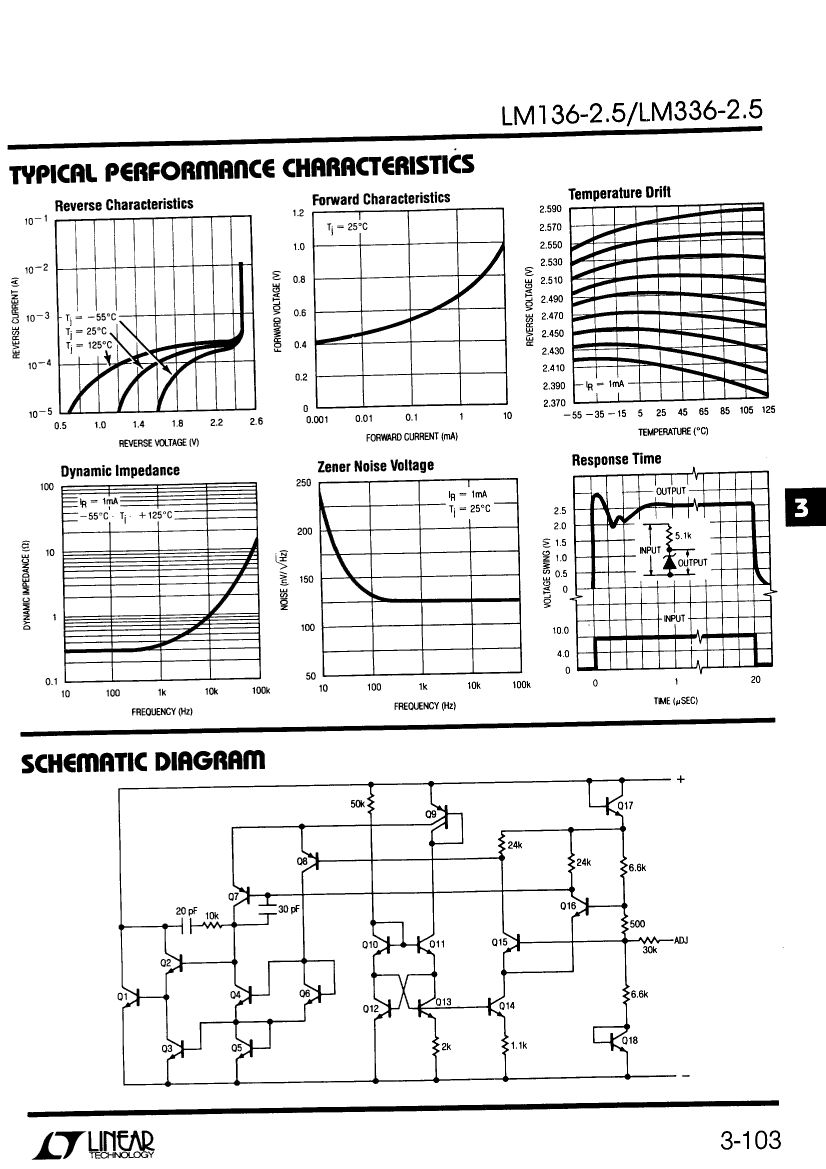

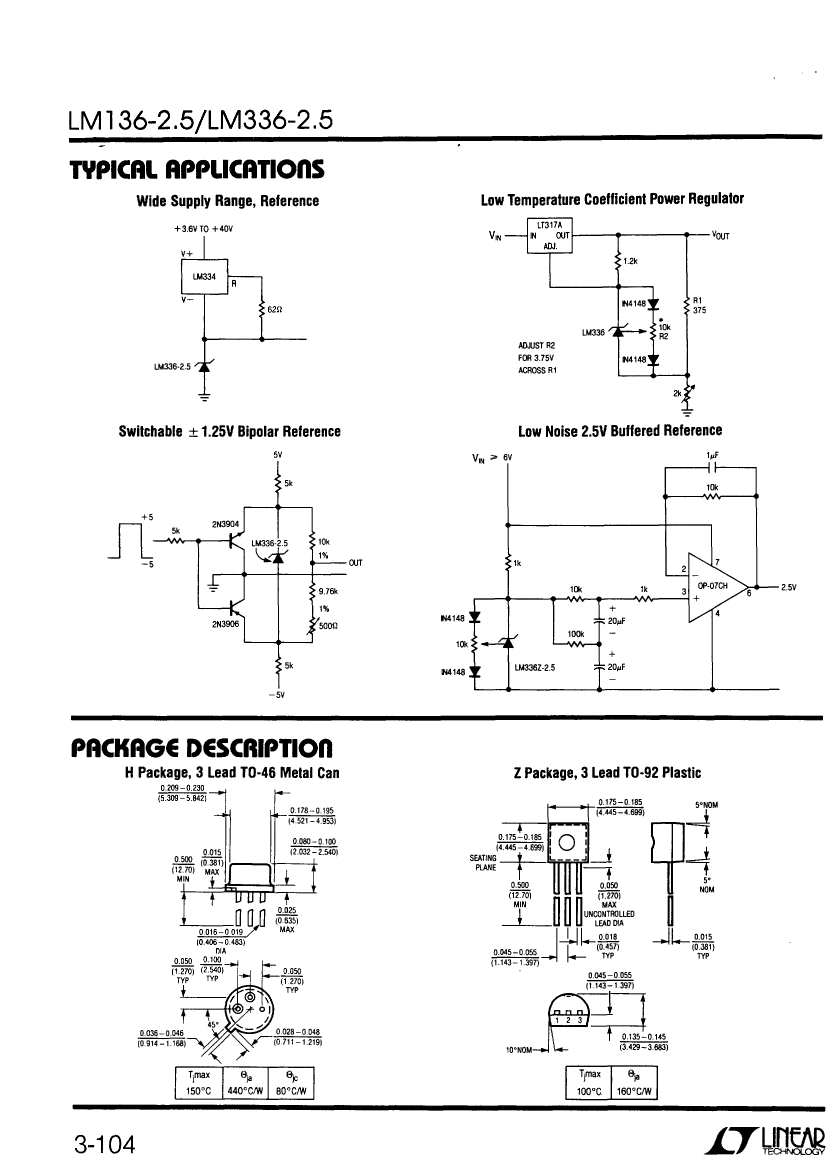

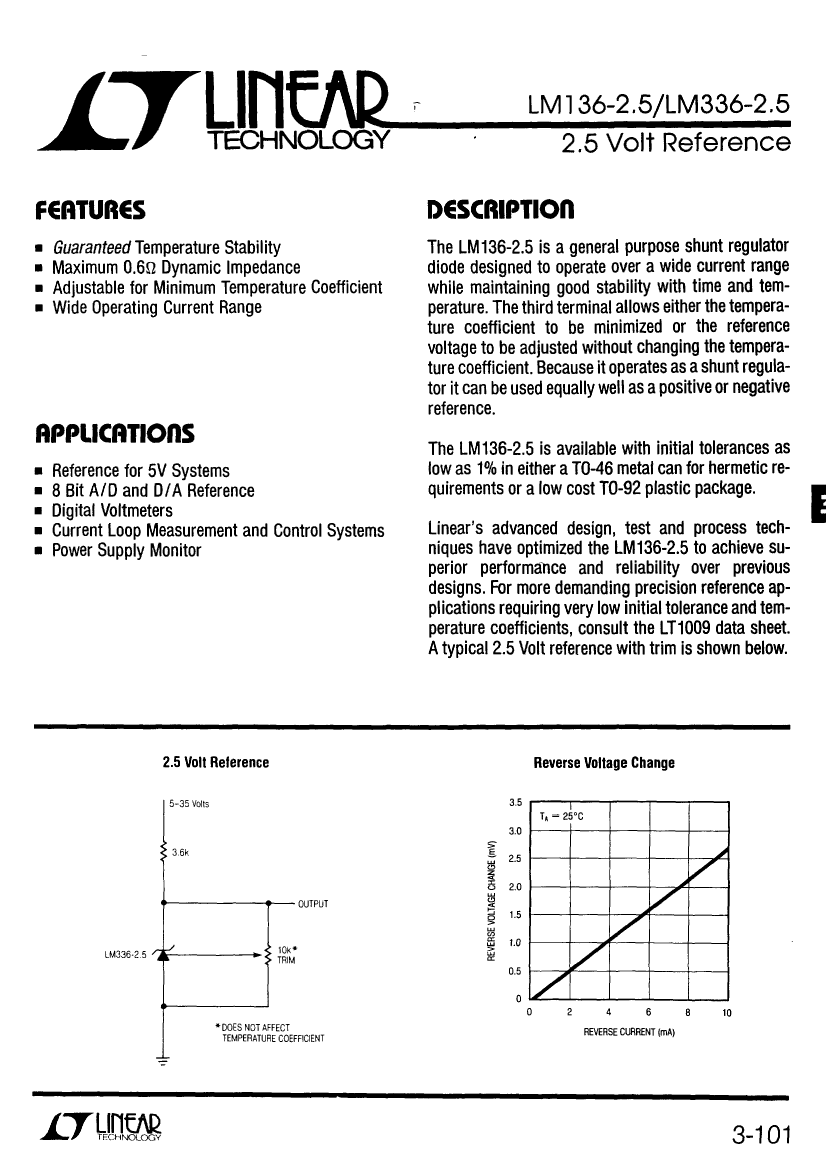

Preview

LM336BH-2.5: Description1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3; CategoryPower/power management The power supply circuit; File Size198KB，4 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Related ProductsFound16parts with similar functions to LM336BH-2.5

Download Datasheet Parametric View All

LM336BH-2.5 Overview

1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3

LM336BH-2.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	TO-46
package instruction	, CAN3/4,.1
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	2.54 V
Minimum output voltage	2.44 V
Nominal output voltage	2.49 V
Package body material	METAL
Encapsulate equivalent code	CAN3/4,.1
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	34 ppm/°C
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	2%
