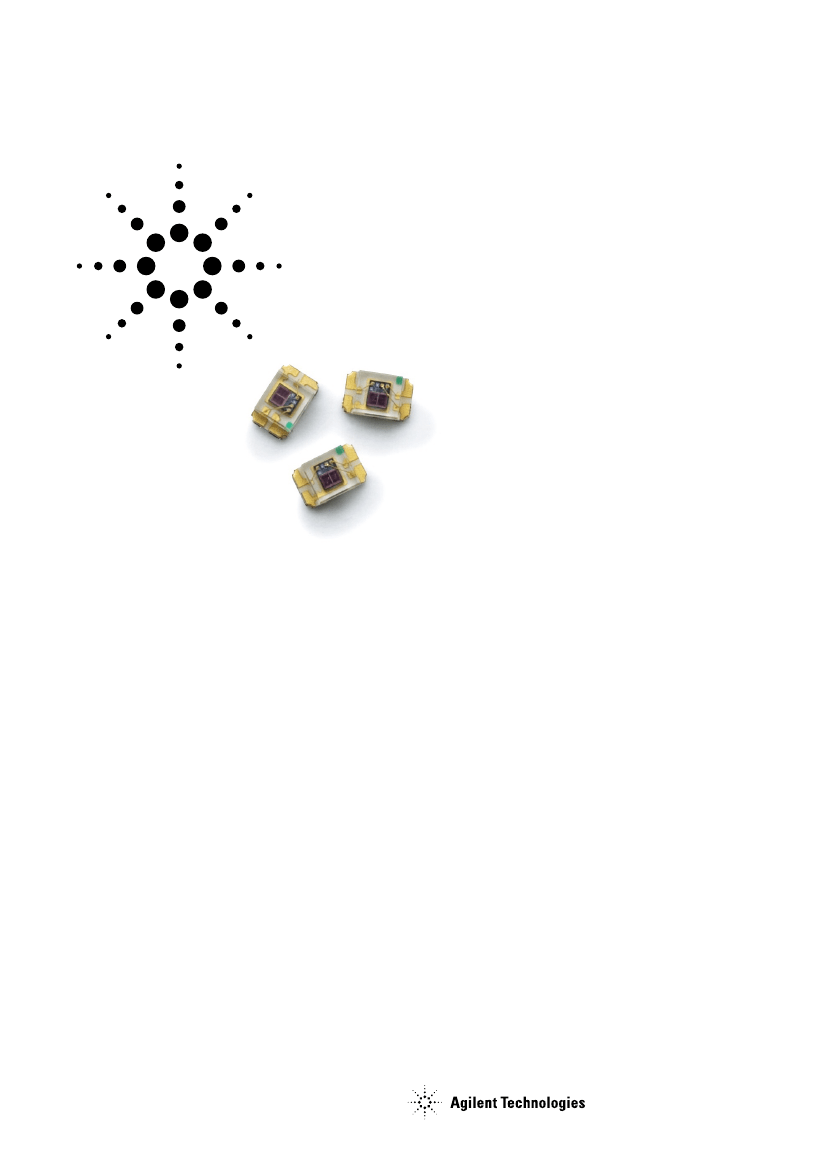

Agilent APDS-9002
Miniature Surface-Mount
Ambient Light Photo Sensor
Data Sheet
Description
The APDS-9002 is a low-cost
analog-output ambient light
photo sensor in lowest cost
miniature chipLED lead-free
surface mount package. It
consists of a spectrally suited
phototransistor, which peaks in
human luminosity curve. Hence,
it provides an excellent
responsivity that is close to the
response of human eyes, as
shown in Figure 2. It provides a
design-alternative to the
HSDL-9000 digital-output
ambient light photo sensor is
suitable for portable
applications with its ultra small
package design.
The APDS-9002 is ideal for
applications in which the
measurement of ambient light is
used to control display back-
lighting. Mobile appliances such
as the mobile phones and PDAs
that draw heavy current from
display backlighting will benefit
from incorporating these photo
sensor products in their designs
by reducing power consumption
significantly.
Features
• Excellent responsivity which
peaks in the human luminosity
curve
Close responsivity to the human eye
• Miniature chipLED lead-free
surface-mount package
Height – 0.80 mm
Width – 2.00 mm
Depth – 1.25 mm
• Good output linearity across wide
illumination range
• Low sensitivity variation across
various light sources
• Guaranteed temperature
performance
-40°C to 85°C
• V
CC
supply 2.4 to 5.5 V
• Lead-free package
Applications
• Detection of ambient light to
control display backlighting
Mobile devices – mobile phones,
PDAs
Computing devices – notebooks,
webpads
Consumer devices – TVs, video
cameras, digital still cameras
• Automatic residential and
commercial lighting management
• Electronic signs and signals
• Daylight and artificial light
exposed devices
Application Support Information
The Application Engineering
Group is available to assist you
with the application design
associated with APDS-9002
ambient light photo sensor
module. You can contact them
through your local sales
representatives for additional
details.
Ordering Information
Part Number
APDS-9002-021
Packaging Type
Tape and Reel
Package
4-pins Chipled package
Quantity
2500
Typical Application Circuit
PIN 2: VCC
PIN 3: VCC
PIN 1: IOUT
APDS-9002
R
LOAD
PIN 4: NC
Figure 1. Typical application circuit for APDS-9002.
Figure 1 Table
Component
R
LOAD
Recommended Application
Circuit Components
1 kW
I/O Pins Configuration Table
Pin
1
2
3
4
2
Symbol
IOUT
VCC
VCC
NC
Description
I
OUT
V
CC
V
CC
No Connect
