LM2935D2T

Description
DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PSSO5
CategoryPower/power management    The power supply circuit
File Size80KB,8 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

LM2935D2T Overview

DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PSSO5

LM2935D2T Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
Parts packaging codeD2PAK
package instructionTO-263, SMSIP5H,.6,67TB
Contacts5
Reach Compliance Codeunknow
ECCN codeEAR99
AdjustabilityFIXED
Nominal dropback voltage 10.6 V
Maximum absolute input voltage60 V
Maximum input voltage26 V
Minimum input voltage6 V
JESD-30 codeR-PSSO-G5
JESD-609 codee0
length10.02 mm
Maximum grid adjustment rate0.05%
Maximum load regulation0.05%
Number of functions1
Output times2
Number of terminals5
Working temperatureTJ-Max150 °C
Operating temperatureTJ-Mi-40 °C
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum output current 10.75 A
Maximum output current 20.01 A
Maximum output voltage 15.25 V
Minimum output voltage 14.75 V
Nominal output voltage 15 V
Nominal output voltage 25 V
Package body materialPLASTIC/EPOXY
encapsulated codeTO-263
Encapsulate equivalent codeSMSIP5H,.6,67TB
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Regulator typeFIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Maximum seat height4.826 mm
surface mountYES
technologyBIPOLAR
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.7 mm
Terminal locationSINGLE
Maximum voltage tolerance5%
width9.1945 mm

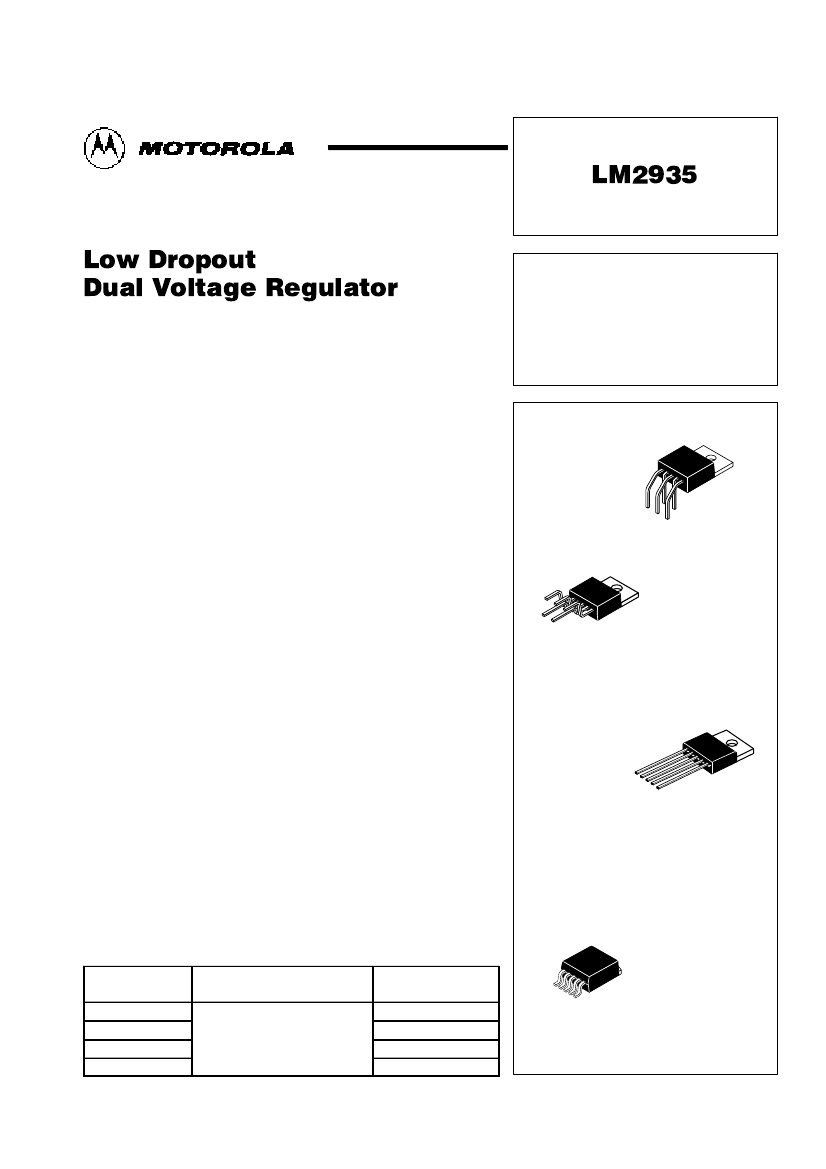

Order this document by LM2935/D
LM2935
Low Dropout
Dual Voltage Regulator
The LM2935 is a dual positive 5.0 V low dropout voltage regulator,
designed for standby power systems. The main output is capable of
supplying 750 mA for microprocessor power, and can be turned “on” and
“off” by the switch/reset input. The other output is dedicated for standby
operation of volatile memory, and is capable of supplying up to 10 mA loads.
The total device features a low quiescent current of 3.0 mA or less when
supplying 10 mA from the standby output.
This part was designed for harsh automotive environments and is
therefore immune to many input supply voltage problems such as reverse
battery (–12 V), double battery (+24 V), and load dump transients (+60 V).
Two Regulated 5.0 V Outputs
LOW DROPOUT
DUAL VOLTAGE REGULATOR
SEMICONDUCTOR
TECHNICAL DATA
TH SUFFIX
PLASTIC PACKAGE
CASE 314A
1
5
Main Output Current in Excess of 750 mA
On/Off Control of Main Output
Standby Output Current in Excess of 10 mA
Low Input/Output Differential of Less than 0.6 V at 500 mA
Short Circuit Current Limiting
Internal Thermal Shutdown
Low Voltage Indicator Output
Designed for Automotive Environment Including
Reverse Battery Protection
Double Battery Protection
Load Dump Protection
Reverse Transient Protection
Economical 5–Lead TO–220 Package with Two Optional Leadforms
Also Available in Surface Mount D2PAK Package
1
5
TV SUFFIX
PLASTIC PACKAGE
CASE 314B
Heatsink surface connected to Pin 3.
T SUFFIX
PLASTIC PACKAGE
CASE 314D
1
5
Pin 1. Input Voltage/VCC
2. Main Output
3. Ground
4. Switch/Reset
5. Standby/Output
ORDERING INFORMATION
Device
LM2935D2T
LM2935T
LM2935TH
LM2935TV
TJ = –40° to +125°C
Tested Operating
Temperature Range
Package
Surface Mount
Plastic Power
Horizontal Mount
Vertical Mount
1
5
D2T SUFFIX
PLASTIC PACKAGE
CASE 936A
(D2PAK)
Heatsink surface (shown as terminal 6
in case outline drawing) is connected to Pin 3.
©
Motorola, Inc. 1995
Rev 1
MOTOROLA ANALOG IC DEVICE DATA
1

LM2935D2T Related Products

LM2935D2T LM2935TV
Description DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PSSO5 FIXED POSITIVE REGULATOR
Maker Motorola ( NXP ) Motorola ( NXP )
package instruction TO-263, SMSIP5H,.6,67TB ZIP, ZIP5,.15,.2,67TB
Reach Compliance Code unknow unknow
ECCN code EAR99 EAR99
Adjustability FIXED FIXED
Nominal dropback voltage 1 0.6 V 0.6 V
Maximum absolute input voltage 60 V 60 V
Maximum input voltage 26 V 26 V
Minimum input voltage 6 V 6 V
JESD-30 code R-PSSO-G5 R-PZFM-T5
JESD-609 code e0 e0
Maximum grid adjustment rate 0.05% 0.05%
Maximum load regulation 0.05% 0.05%
Number of functions 1 1
Output times 2 2
Number of terminals 5 5
Working temperatureTJ-Max 150 °C 150 °C
Operating temperatureTJ-Mi -40 °C -40 °C
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C
Maximum output current 1 0.75 A 0.75 A
Maximum output current 2 0.01 A 0.01 A
Maximum output voltage 1 5.25 V 5.25 V
Minimum output voltage 1 4.75 V 4.75 V
Nominal output voltage 1 5 V 5 V
Nominal output voltage 2 5 V 5 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TO-263 ZIP
Encapsulate equivalent code SMSIP5H,.6,67TB ZIP5,.15,.2,67TB
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE FLANGE MOUNT
Certification status Not Qualified Not Qualified
Regulator type FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
surface mount YES NO
technology BIPOLAR BIPOLAR
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING THROUGH-HOLE
Terminal pitch 1.7 mm 1.7 mm
Terminal location SINGLE ZIG-ZAG
Maximum voltage tolerance 5% 5%
