182L110 Overview

Toroidal Power Transformer,

182L110 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Transformer type	TOROIDAL POWER TRANSFORMER
Base Number Matches	1

Preview

Download Datasheet

View All

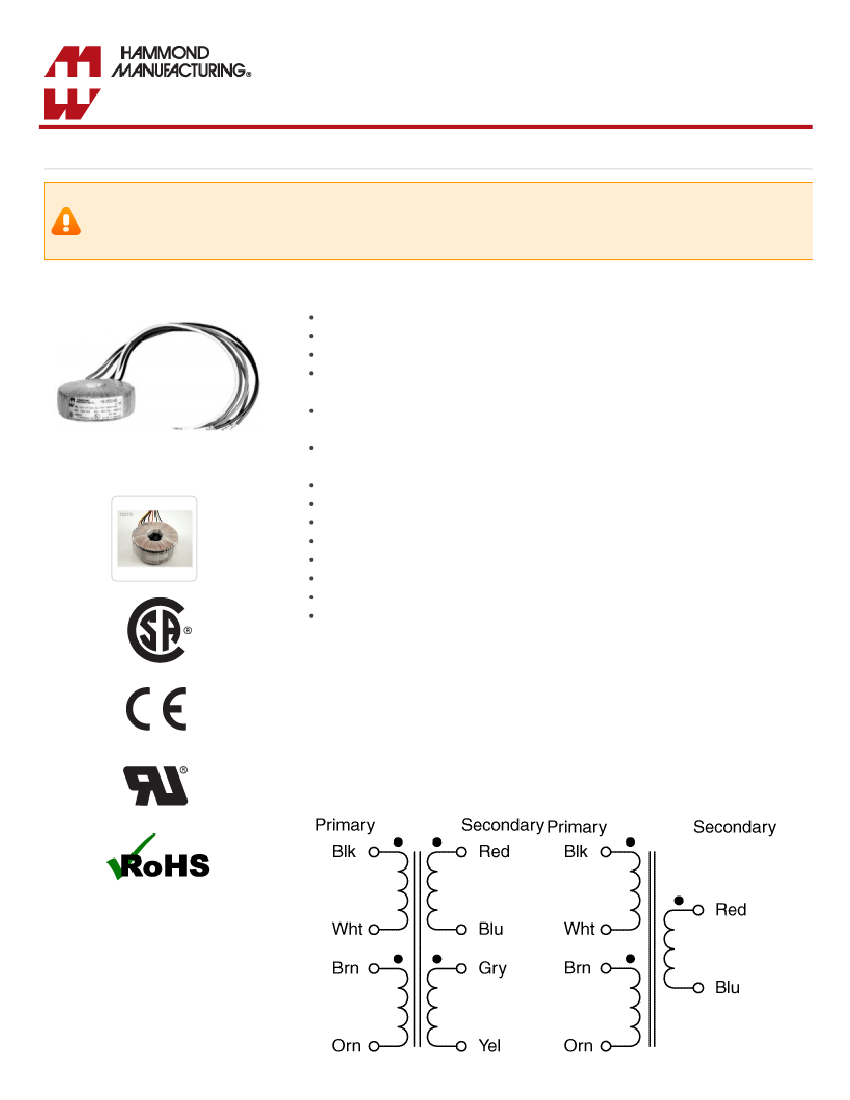

1/30/2018

Toroidal L.V. - Chassis Mount (182 Series) - Hammond Mfg.

Quality Products. Service Excellence.

Toroidal L.V. - Chassis Mount

182 Series

Note:

This product line will soon be discontinued as a stocked series. Available while quantities last. It has been replaced with

1182 Series.

For alternative solution assistance, please contact Hammond Customer Service -

sales@hammfg.com

or USA

(716) 630-7030, Canada and International (519) 822-2960.

Features

Low profile, lightweight, cool running - due to high efficiency toroidal design

Dual 117/234 VAC primary, 50/60 Hz. operation

Units are designed to have all windings engaged.

Center single hole mounting - units over 225VA include a potted center (see photos

below) for extra mounting strength.

Supplied with two rubber insulating pads, one metal centering washer and all mounting

hardware (160VA and under)

Supplied with one bottom rubber insulating pad and mounting hardware (225VA and

larger)

Center bolt size varies with VA - see tables below.

Minimum 8" long flexible leads

Hi-Pot test of 4,000V RMS between primary & secondary

CSA certified to C22.2 #66 - CSA file #209651

UL recognized to UL506 - UL file #E207860

CE certified to IEC950

Note about Inrush Current:

Due to the superior magnetic properties of Toroidal transformers they will be susceptible

to high magnetizing current when initially energized, only limited by the low DC resistance

of the primary winding. Depending on where you are in the AC cycle when the

transformer is energized dictates the chances of overloading the supply circuit. This is

why the transformer may sometimes energize without a problem and other times it will

blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than

a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed

circuit breaker or other form of soft start circuitry for the supply line when using these high

efficient Toroidal transformers.

https://www.hammfg.com/electronics/transformers/power/182

1/5
