166F36A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 166F36A

166F36A: DescriptionSplit Bobbin Power Transformer,; CategoryPower management transformer; File Size229KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com; Environmental Compliance

Download Datasheet Parametric View All

166F36A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	166F36A	-	-	View	Buy Now

166F36A Overview

Split Bobbin Power Transformer,

166F36A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
Base Number Matches	1

Preview

Download Datasheet

View All

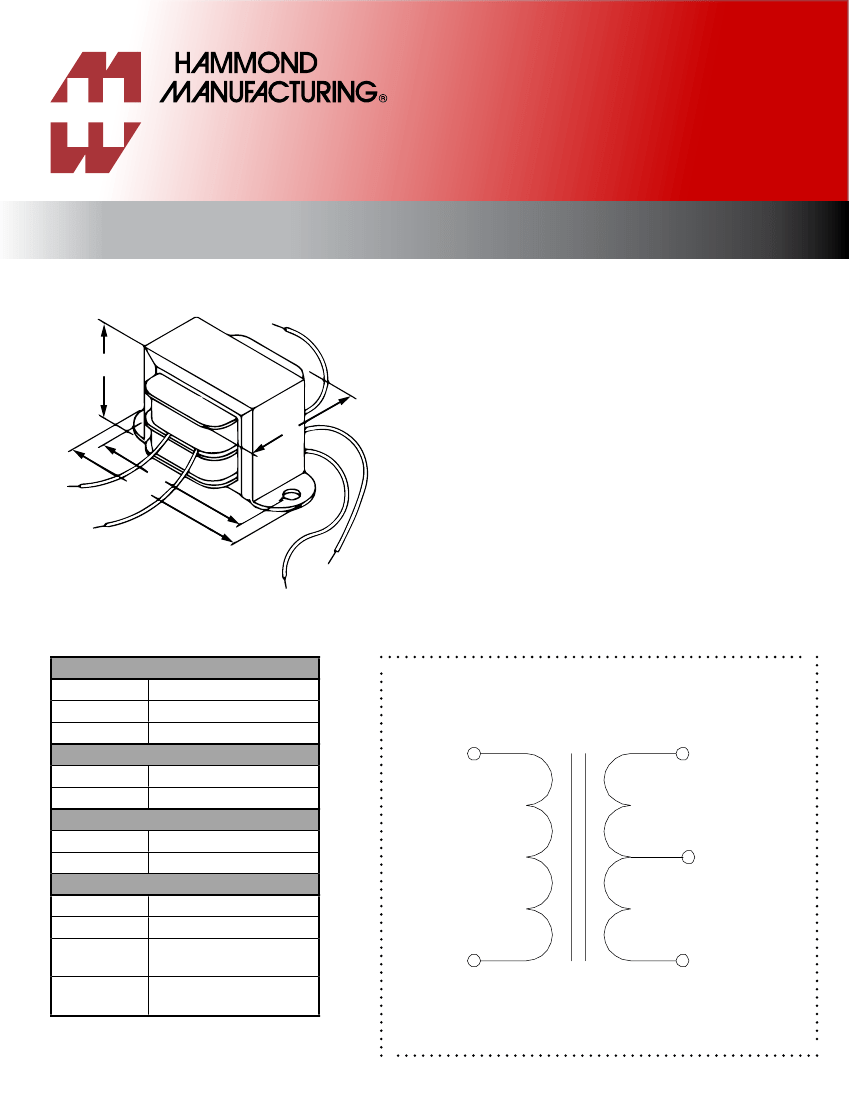

www.hammondmfg.com

166F36A

Power Transformer - Low Voltage/ Filament

Economical Single Primary - Open Style Chassis Mount

GRN

Features

•

Economical single primary 115 VAC, 60 Hz. (or 117

50/60 Hz. see table below)

Open style, channel bracket, chassis mount.

Minimum 6” long leads.

Dual bobbin design - no electrostatic shield required.

Class B insulation (130 degrees, C) for extra protec-

tion -

UL listed

as a Class A (105 degree, C) design

Hi-Pot test of 2,000V RMS.

CSA certified.

•

BLK

GRN

GRN/ YEL

•

BLK

•

Overall Dimensions (in. / mm)

Width-wise

Depth-wise

Size (VA)

Primary

Secondary

VAC

Secondary

Amps

2.81 / 71.4

1.63 / 41.4

1.69 / 42.9

Hole to Hole Mounting Dims

2.38 / 60.5

Schematic

Blk

Grn

Secondary

Primary

Mounting Hole Sizes

0.187 / 4.7

Electrical

10.8

117V 50/60 Hz.

36 C.T.

0.3

Grn/ Yel

Blk

Grn
