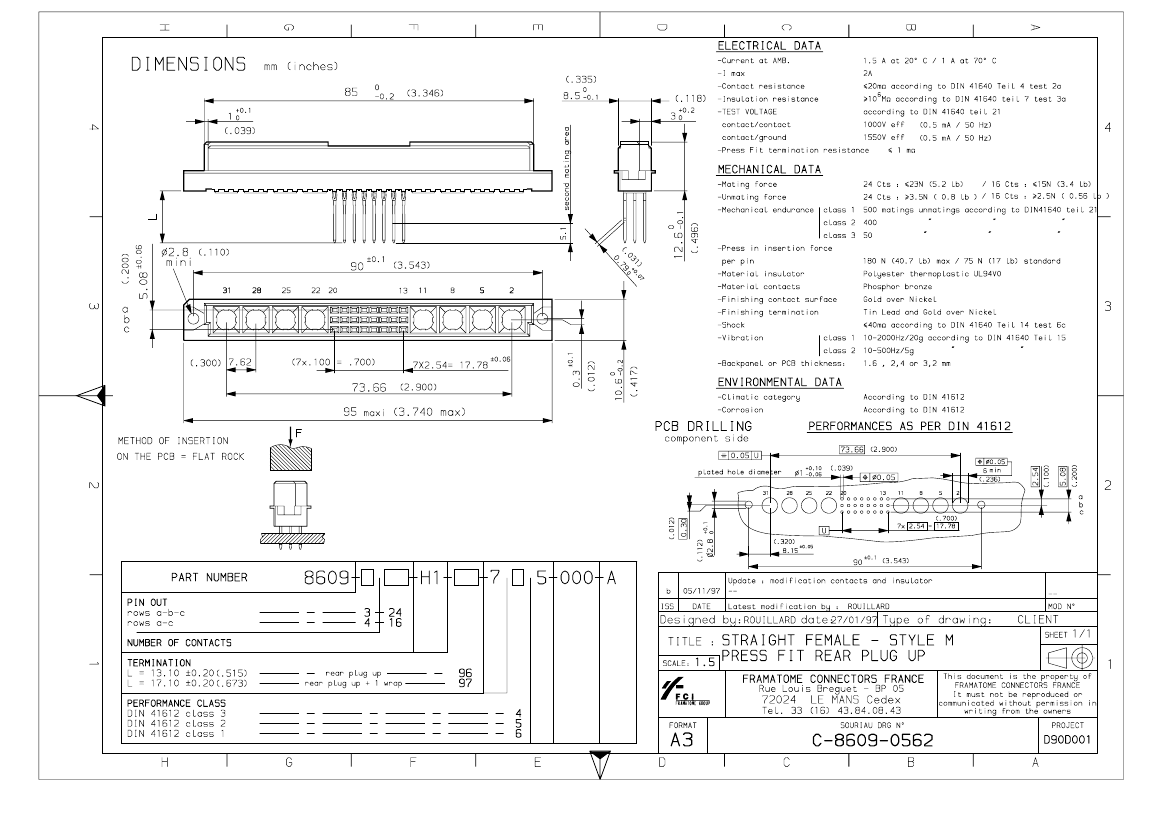

8609-324-H1-96-755-000-A datasheet, PDF

8609-324-H1-96-755-000-A: DescriptionBoard Euro Connector, 24 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-324-H1-96-755-000-A Overview

Board Euro Connector, 24 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	24
UL Flammability Code	94V-0

PDM: Rev:B

STATUS:

Released

Printed: Sep 30, 2005

.
