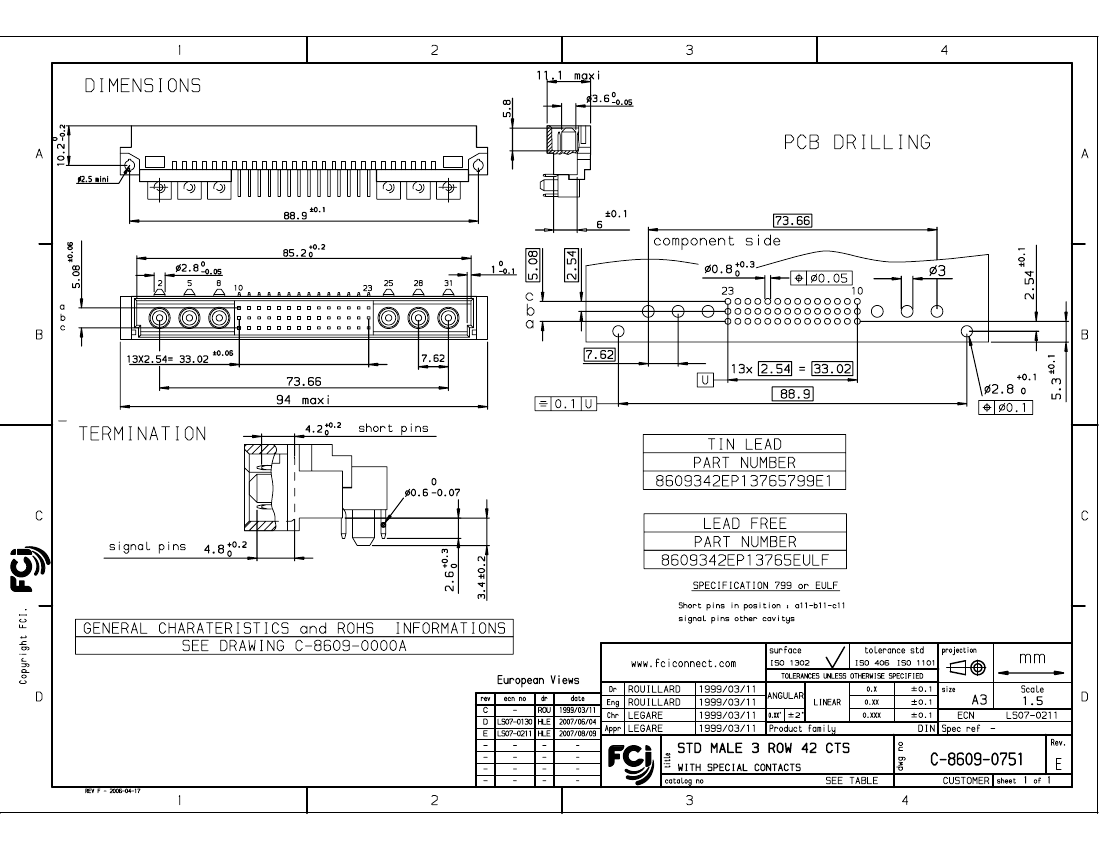

8609-342-EP-13-765-799-E1: Description48 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-342-EP-13-765-799-E1 Overview

48 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	TERMINAL PITCH FOR COAXIAL CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609342EP13765
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0

PDM: Rev:E

STATUS:

Released

Printed: May 14, 2011

.

	8609-342-EP-13-765-799-E1	8609342EP13765799E1	8609342EP13765EULF
Description	48 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	compliant
Other features	TERMINAL PITCH FOR COAXIAL CONTACTS: 7.62 MM	TERMINAL PITCH FOR COAXIAL CONTACTS: 7.62 MM	TERMINAL PITCH FOR COAXIAL CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	8609342EP13765	8609342EP13765	8609342EP13765
Mixed contacts	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	48	48	48
Contact to complete cooperation	TIN LEAD	TIN LEAD	-
Contact completed and terminated	TIN LEAD	TIN LEAD	-
JESD-609 code	e0	e0	-
UL Flammability Code	94V-0	94V-0	-
