PRIMARY
BLK
SECONDARY
RED
PRIMARY #1
117V 50/60Hz
SECONDARY #1
24V @ 20.80Amps
WHT
BLU
GRY
SECONDARY #2
24V @ 20.80Amps
YEL
ORN
PRIMARY LEADS ARE #16 TEW
SECONDARY LEADS ARE #10 TEW
ALL LEADS OUT 8"-9" AND
STRIPPED 0.5" MIN.
WEIGHT: 16.29Lbs +/- 4%
BRN
PRIMARY #2
117V 50/60Hz
50/60Hz VA:1000
PRI: 2x 117V BLK-WHT, BRN-ORN
SEC: 2x 24V @ 20.80A RED-BLU, GRY-YEL
1A1000A000C024024
MADE IN CANADA
DATE PB
1182V24

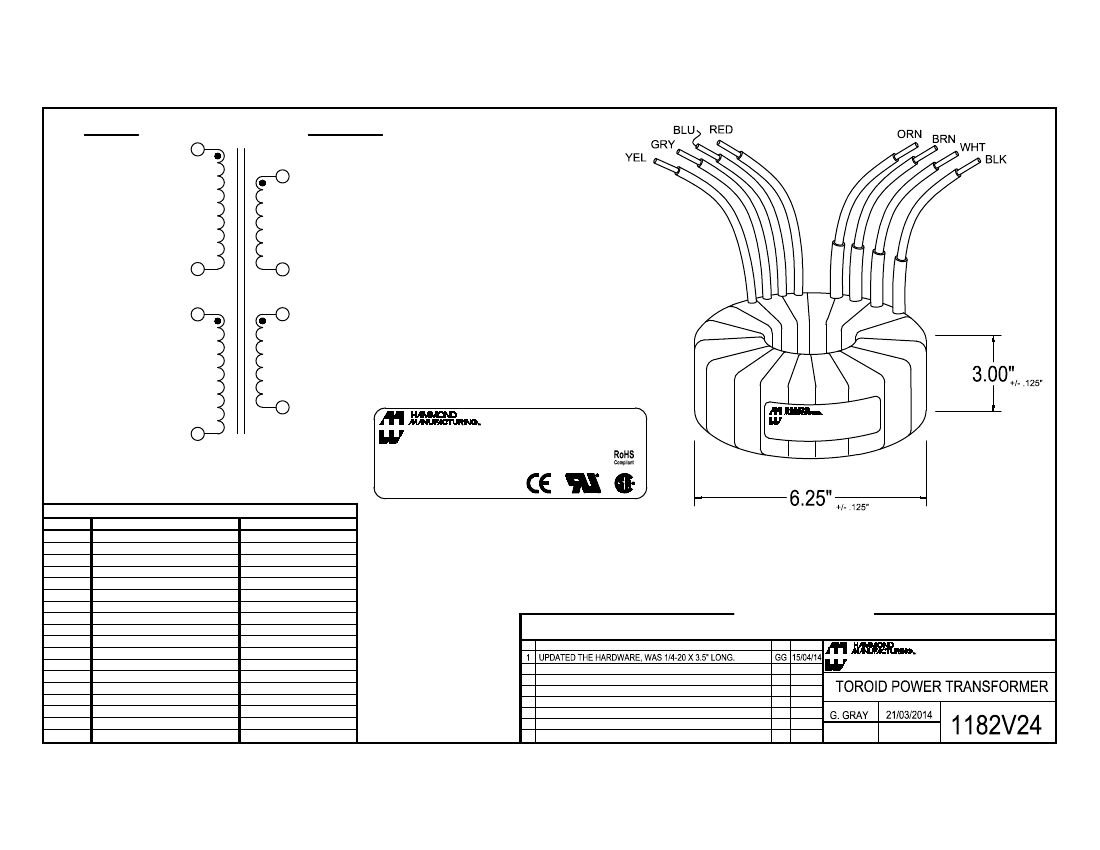

ELECTRICAL DATA:
TESTS
Sec. N.L.V
OR
CONDITIONS
@ 117V, 60Hz
BLK & BRN to WHT & ORN
@ 234V, 50Hz
BLK to ORN (Connect BRN & WHT)
RED - BLU
GRY - YEL
ACCEPTANCE CRITERIA
SUPPLIED WITH: TWO 0.093" T X 4.75" OD RUBBER WASHERS.
ONE 16GA X 4.30" OD STEEL MOUNTING WASHER.
ONE 3/8-16 BOLT 3.50" LONG WITH A LOCK WASHER AND 3/8-16 HEX NUT.
PROPERTY AND COPYRIGHT NOTICE
POLARITY
DCR
IN OHMS
BLK, BRN, RED and GRY.
BLK - WHT
BRN - ORN
RED - BLU
GRY - YEL
ADDITIVE
REV
NOTES
THIS DRAWING AND THE INFORMATION IT CONVEYS ARE THE PROPERTY OF HAMMOND MANUFACTURING. IT MAY NOT BE REPRODUCED,
TRANSMITTED OR USED IN ANY MANNER WHATSOEVER WITHOUT THE WRITTEN PERMISSION OF HAMMOND MANUFACTURING.
BY
DATE
ELECTRONIC DIVISION
52 RANKIN PLACE,
WATERLOO, ONTARIO, N2J 3Z5
PHONE: 519.886.6181 FAX: 519.886.9540
HIPOT
PRIMARY - SECONDARY
PRIMARY - PRIMARY
SECONDARY - SECONDARY
4000V, 60Hz, 1 SEC
600V, 60Hz, 1 SEC
600V, 60Hz, 1 SEC
DRAWN
DATE
NUMBER
APPROVED
DATE
