BRIGHT VIEW
ELECTRONICS CO.,LTD
ULTRA BRIGHTNESS LED LAMP

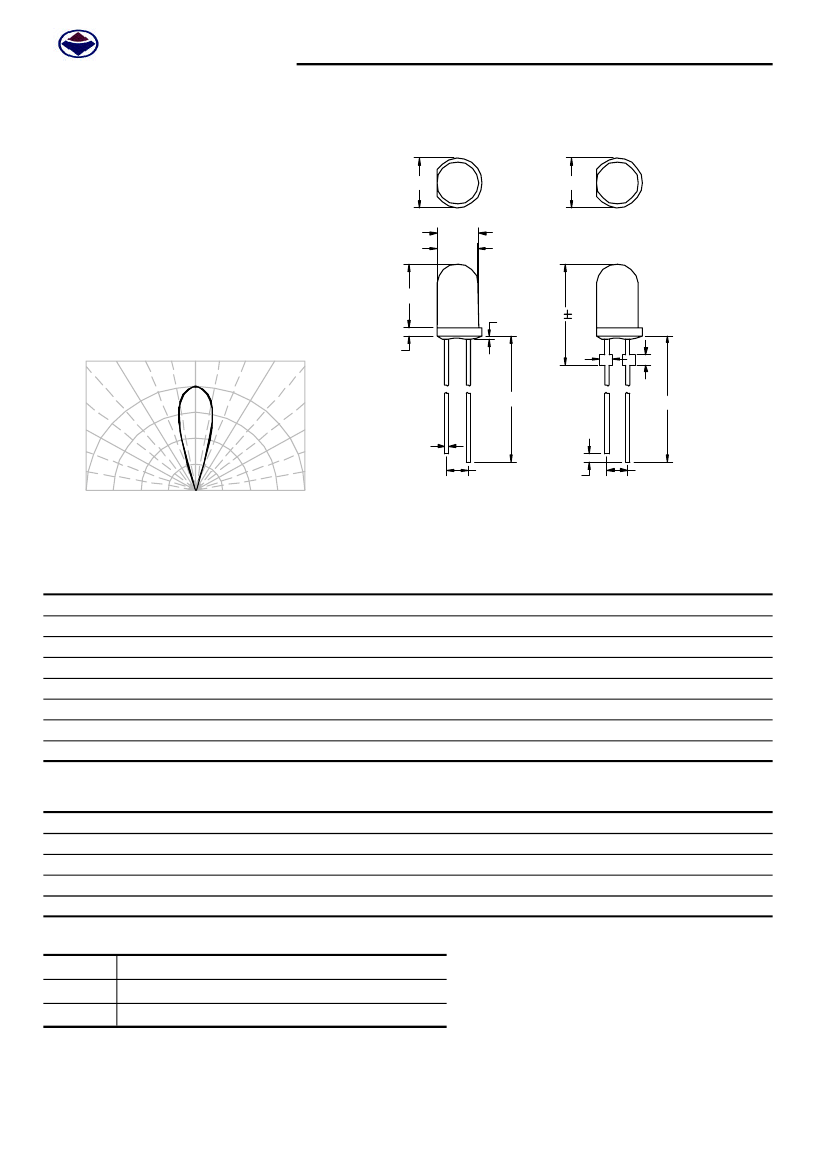

PACKAGE CONFIGURATION
BVU-5M5GN1
5.9
5.9
DESCRIPTION
Dice Material : GaN Green
Light Color : Green Color
Lens Color : Green Diffused
Stand-Off P/N : BVU-5M5GN1 R
7.6
5.0
4.9
RADIATION PATTERN
-30
0
30
1.0
11.8 0.5
1.0Max.
1.3
1.0
25.4Min.
25.4Min.
CATHODE
-60
60
CATHODE
0.5
2.54
1.0Min.
2.54
100 75 50 25 0 25 50 75 100
Relative Luminous Intensity ( Iv % )
Tolerance ± 0.25
ABSOLUTE MAXIMUM RATINGS AT Ta = 25
PARAMETER
Power Dissipation
Continuous Forward Current
Peak Forward Current ( 1/10 Duty Cycle , 0.1ms Pulse Width )
Reverse Voltage
Derating Linear From 50
Operating Temperature Range
Storage Temperature Range
Lead Solder Temperature 1.6 mm Below Package 260
for 5 seconds
MAX.
120
30
100
5
0.4
40
to
40
to
100
100
UNIT
mW
mA
mA
V
mA/
o
C
ELECTRICAL / OPTICAL CHARACTERISTICS AT Ta = 25
SYMBOL
V
F
I
R
PARAMETER
Forward Voltage
Reverse Current
Peak Emission Wavelength
2 1/2
Dominant Wavelength
Viewing Angle
TEST COND.
I
F
= 20 mA
V
R
= 5V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
520
525
30
MIN.
TYP.
3.3
MAX.
4.0
10
UNIT
V
A
nm
nm
Deg
BIN GRADE LIMITS ( I F = 20 mA ) LUMINOUS INTENSITY / mcd
Bin
Min.
Max.
L
1680
2180
M
2180
2800
N
2800
3600
O
3600
4650
P
4650
6000
Q
6000
7800
Tolerance ± 15%mcd
*Bright View reserves the rights to alter specifications and remove availability of products at any time without notice.
*Dominant Wavelength, d is according to CIE Chromaticity Diagram base on color of lamps.
* 1/2 is the off-axis angle where the luminous intensity is one half the on-axis intensity.
*These products are sensitive to static electricity. Caution must be taken strictly to avoid static electricity. PRELIMINARY
2003/10/7 – 1

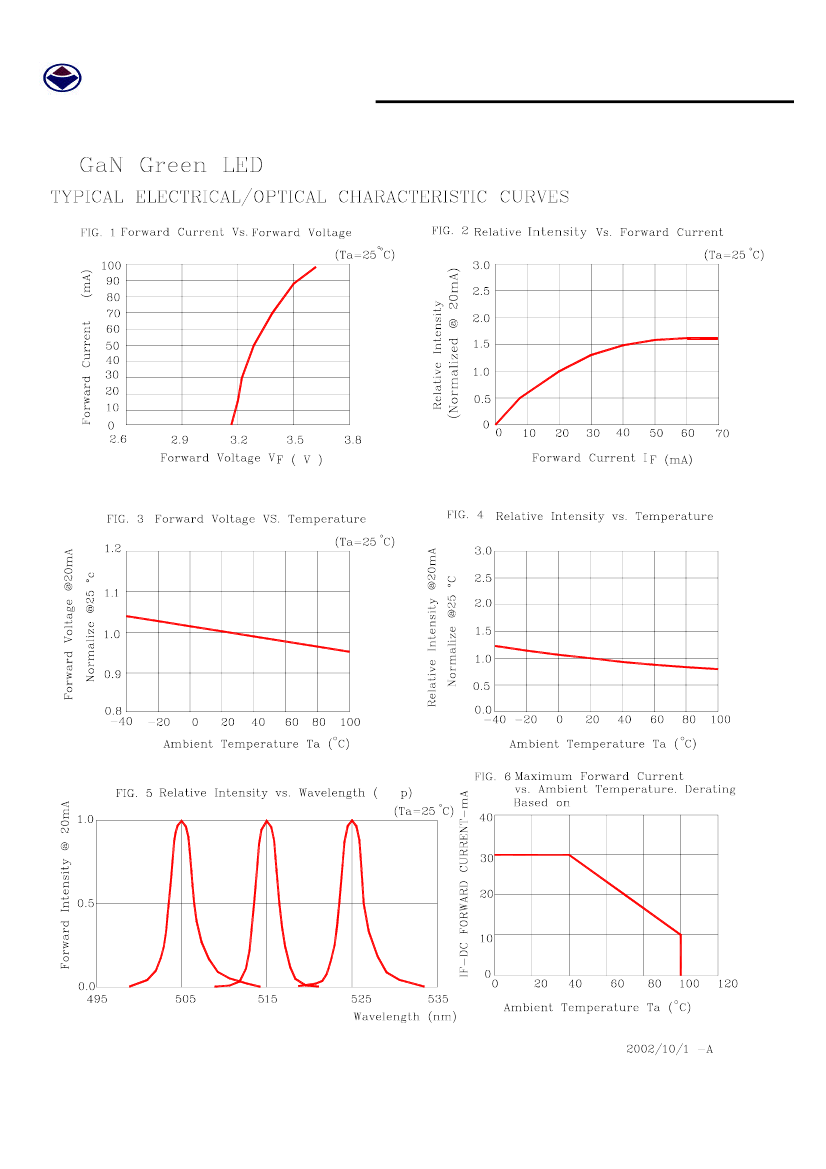

BRIGHT VIEW
ELECTRONICS CO.,LTD
LIGHT EMITTING DIODE
T
JMAX
=
130 C
BRIGHT VIEW
ELECTRONICS CO.,LTD
CAUTION FOR STATIC ELECTRICITY
靜電防治
These products are Gallium Nitride(GaN) or Indium Gallium Nitride(InGaN) light emitting diodes(LEDs). There are
extremely sensitive to static electricity ESD damage. The user must take absolutely secure countermeasures against static
electricity and surge when handling products.
顯明 LED 晶片材質為 Gallium Nitride(GaN)或 Indium Gallium Nitride(InGaN)，此材質對於靜電極為敏感，十分
容易受靜電衝擊而產生破壞，½用者接觸產品時必需做½對靜電衝擊之防護措½。
Bright View Blue, Green, White are GaN or InGaN materials are ESD classified, any manufacturing or workstations
where GaN or InGaN devices are handled should be rated at〝Class1〞50V maximum.
顯明之藍、綠、½光晶片材質為 GaN 或 InGaN ，此材質屬 ESD 規範，任½ GaN 或 InGaN 產品所會被接
觸的½造或工½站必須控制在 50V 以下。
Proper grounding of products (via 1MΩ), use of conductive mat, semiconductive working uniform and shoes, and
semiconductive containers are considered to be effective as countermeters against static electricity and surge.
適當的產品接地（1MΩ）與½用導電桌墊，並評估考慮穿著防靜電工½服、防靜電鞋與防靜電盒來有效地
防制靜電之衝擊。
An ionizer is recommended to be used in the facility or environment where static electricity may be generated easily, and
soldering iron with a grounded tip is also recommended.
建議對於工廠設½與環境中容易產生靜電的地點½用離子風扇吹拂，且也建議½用有接地功½的烙鐵進行
焊接。
To install a protection device, in the LED driving circuit, which does not exceed the max rating for surge current during
on/off switching.
在驅動 LED 的電路上設½保護裝½，½其當開閉時的瞬間電流不會超出最大電壓值。
2003/03/04
-A
BRIGHT VIEW
ELECTRONICS CO.,LTD
LAMP PACKING
Label 2
Label 1
Bright View
PART NO.:
LOT NO.:
GRADE:
Q'ty
X-
-
pcs
Electronics Co.,Ltd.
Bright View
PART NO.:
LOT NO.:
GRADE:
Electronics Co.,Ltd.
BVU-5M5XXXXX
QA
Q'ty
pcs
QA
3mm or 5mm Polybag
X: Bin grade
: Wavelength
: Vf
Anti-electrostatic bag
ELECTROSTATIC SENSITIVE DEVICES
DO NOT OPEN OR HANDLE EXCEPT
AT A STATIC-FREE WORKSTATION
BOX
Dimension(cm): 29*25*15
25
BVU
-5X1XX4XR
BVT
Stand-offs
Luminous Grade-refer
to the selection guide for BIN options
Lens Color-refer
to lens color (1) to (9)
Dice Code-refer
to the selection guide
Lens Configuration
-refer to lens drawing
View Angle-refer
to the selection guide (A) to (Z)
Outline Dimension-refer
to the outline dimension
29
3
15
TYPE
Q'TY
N,W
G,W
C.NO
PCS
KGS
KGS
Label 1 or Label 2 attach on it.
Device
5mm(T-1 3/4)
3mm(T-1)
Blue / Green / White
Q'ty / Polybag (pcs)
1000pcs
1000pcs
500pcs
Polybag / Box A
14 bags
20 bags
18 bags
Fig.
Label 1
Label 1
Label 2
32
53
RE
Y
CARTON
Dimension(cm): 53*32*33
33
ITEM NO.
DEVICE:
Q'TY
N. W.:
G. W.:
PCS.
PCS.
PCS.
4 Boxes / Carton
5mm : 56,000pcs
3mm : 80,000pcs
Blue / Green / White : 36,000pcs
2003 / 9 / 15 - A
