1103-M1S3W4QE2: DescriptionSlide Switch, 3 Positions, SPDT, On-off-on, Maintained, 5A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size283KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric View All

1103-M1S3W4QE2 Overview

Slide Switch, 3 Positions, SPDT, On-off-on, Maintained, 5A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Through Hole-straight

1103-M1S3W4QE2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator angle
Actuator length	0.201 inch
Actuator material	NYLON
Actuator type	SLIDE
Other features	APPROVALS: UL,CSA
body width	6.096 mm
body height	6.2992 mm
Body length or diameter	12.7 mm
center contact material	COPPER
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact function	ON-OFF-ON
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1500VAC V
Electrical life	50000 Cycle(s)
End contact material	COPPER
End contact plating	SILVER
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	1103
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	3
seal	EPOXY
surface mount	NO
Switch action	MAINTAINED
switch function	SPDT
Switch type	SLIDE SWITCH
Terminal length	1.062 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

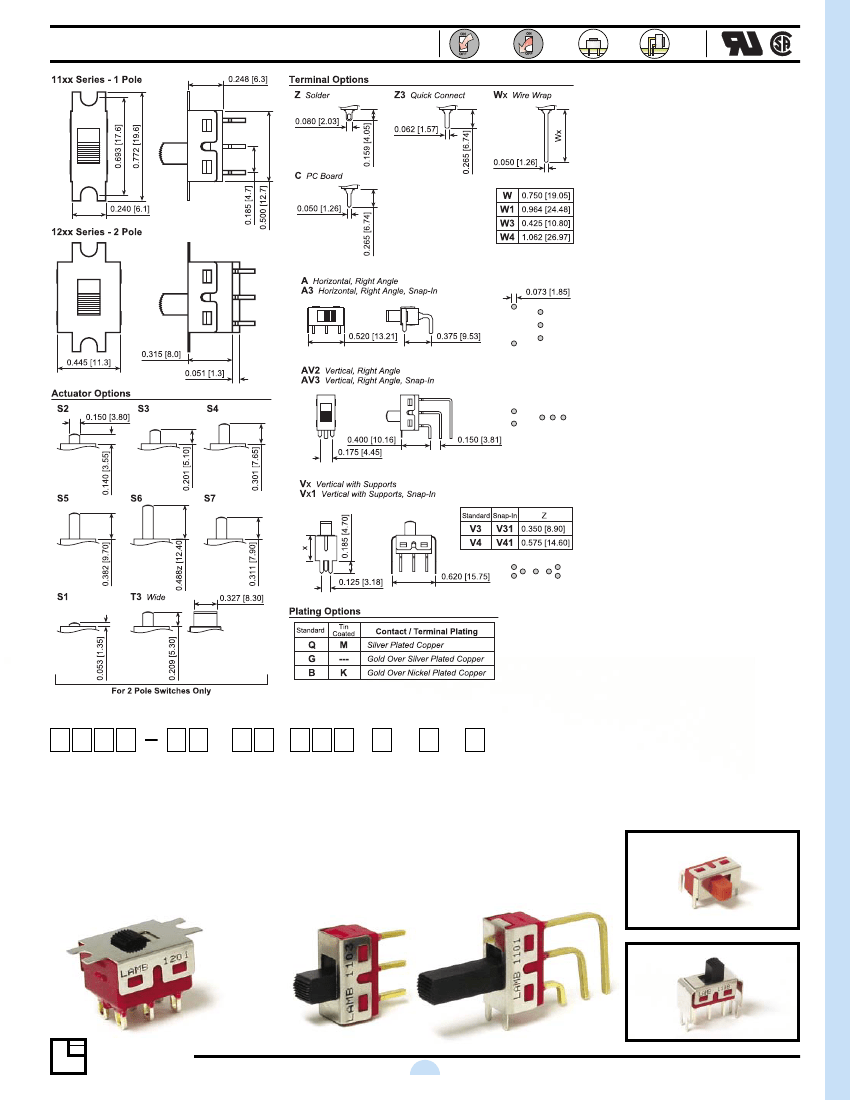

1000-Series

Front

Panel Mount

Rear

Panel Mount

Standard

PCB Mount

Right Angle

PCB Mount

The

1000-Series

slide switch features a

tried and true industry standard design.

A variety of actuator, mounting, and plat-

ing options make this switch useful in

many applications.

SPECIFICATIONS:

R

ATING

:

Q, G, M,

AND

L T

ERMINAL

P

LATING

:

5A 125VAC

2A 250VAC

5A 28VDC

B

AND

K T

ERMINAL

P

LATING

:

0.4VA Max. at 20V AC or DC Max.

T

EMPERATURE

:

-30°C to 85°C

E

LECTRICAL

L

IFE

:

50,000 Cycles

W

ITHSTAND

V

OLTAGE

:

1,500VAC for 1 Minute

I

NSULATION

R

ESISTANCE

:

1,000MΩ

C

ONTACT

R

ESISTANCE

:

10mΩ at 100mA 4VDC

MATERIALS:

B

ODY

:

Diallyl Phthalate (DAP), UL 94V-0

A

CTUATOR

:

Nylon

H

OUSING

:

Stainless Steel

C

ONTACTS

:

See Options

T

ERMINALS

:

See Options

EXAMPLE PART NUMBERS:

1201-M1S1ZQE2:

Photo A

2 Poles, On-On, 5A 125VAC, mounting

ears, 1.35mm black actuator, silver plated,

epoxy sealed, solder terminals.

1103-M2S3CBE2:

Photo B

1 Pole, On-Off-On, 0.4VA 20V, no mount-

ing ears, 5.1mm black actuator, gold

over nickel plated, epoxy sealed, PCB

terminals.

1101-M2S6AV2GE2:

Photo C

1 Pole, On-On, 5A 125VAC, no mounting

ears, 12.25mm black actuator, gold over

silver plated, epoxy sealed, vertical right

angle PCB terminals.

1101-M2S3AQE3:

Photo D

1 Pole, On-On, 5A 125VAC, no mounting

ears, 5.1mm red actuator, silver plated,

epoxy sealed, horizontal right angle PCB

terminals.

1108-M2S3V3QE2:

Photo E

1 Pole, On-(On), 5A 125VAC, no mounting

ears, 5.1mm black actuator, silver plated,

epoxy sealed, supported PCB terminals.

Series

Mounting

Style

Actuator

Options

Terminal

Options

Plating

Options

Epoxy

Sealing

Actuator

Color

1 Pole:

1101

- On-On (*)

1103

- On-Off-On

1108

- On-(On)

2 Pole:

1201

- On-On (*)

1203

- On-Off-On

1208

- On-(On)

For Standard

Terminals:

M1

- Mounting

Ears

For All Terminals:

M2

- No Mounting

Ears

For All Poles:

S2

S3

S4

S5

S6

S7

For 2 Poles:

S1

T3

Standard:

C

Z

Z3

W

W1

W3

W4

PC Board:

A

AV2

V3

V4

Standard:

Q

G

B

None

E

- Sealed

Tin Coated:

(**)

M

K

1

- White

2

- Black

3

- Red

4

- Orange

5

- Yellow

6

- Green

7

- Blue

8

- Brown

9

- Grey

Notes:

* = Unapproved 6A 125VAC option available. Add a 6 between

the Series and the Mounting Style Options.

Example: 1101-M1S2ZQE2 becomes 1101-6-M1S2ZQE2.

Snap-In:

** = Not available for Z and Z3 terminal options.

A3

AV3

V31

V41

D

A

LAMB

INDUSTRIES

B

C

E

Portland, OR USA
