JANTX1N6672 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> JANTX1N6672

Preview

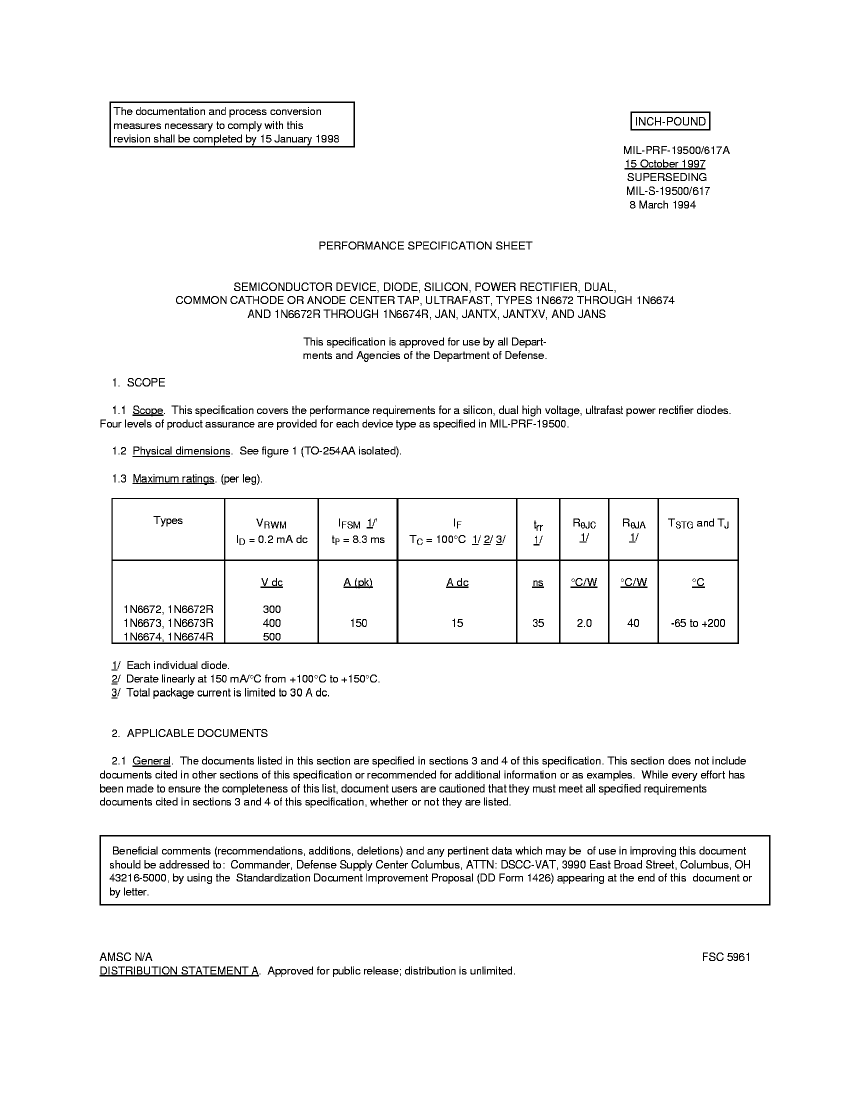

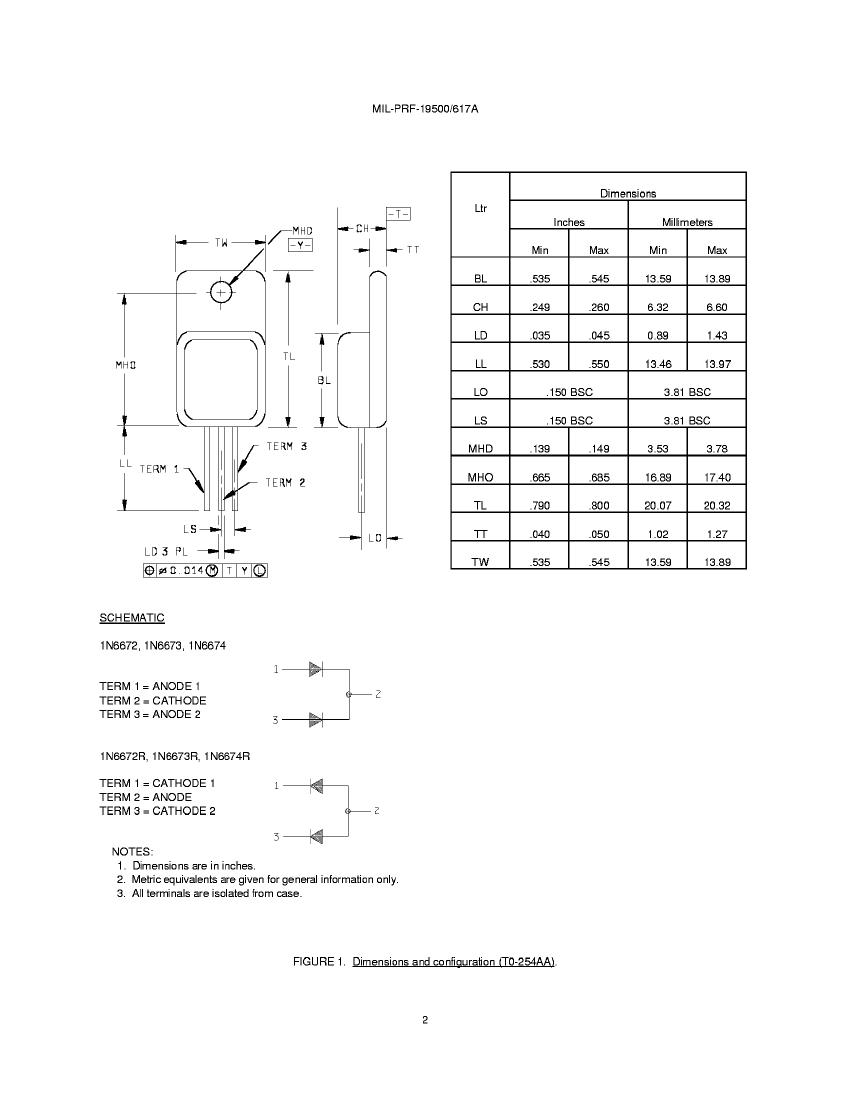

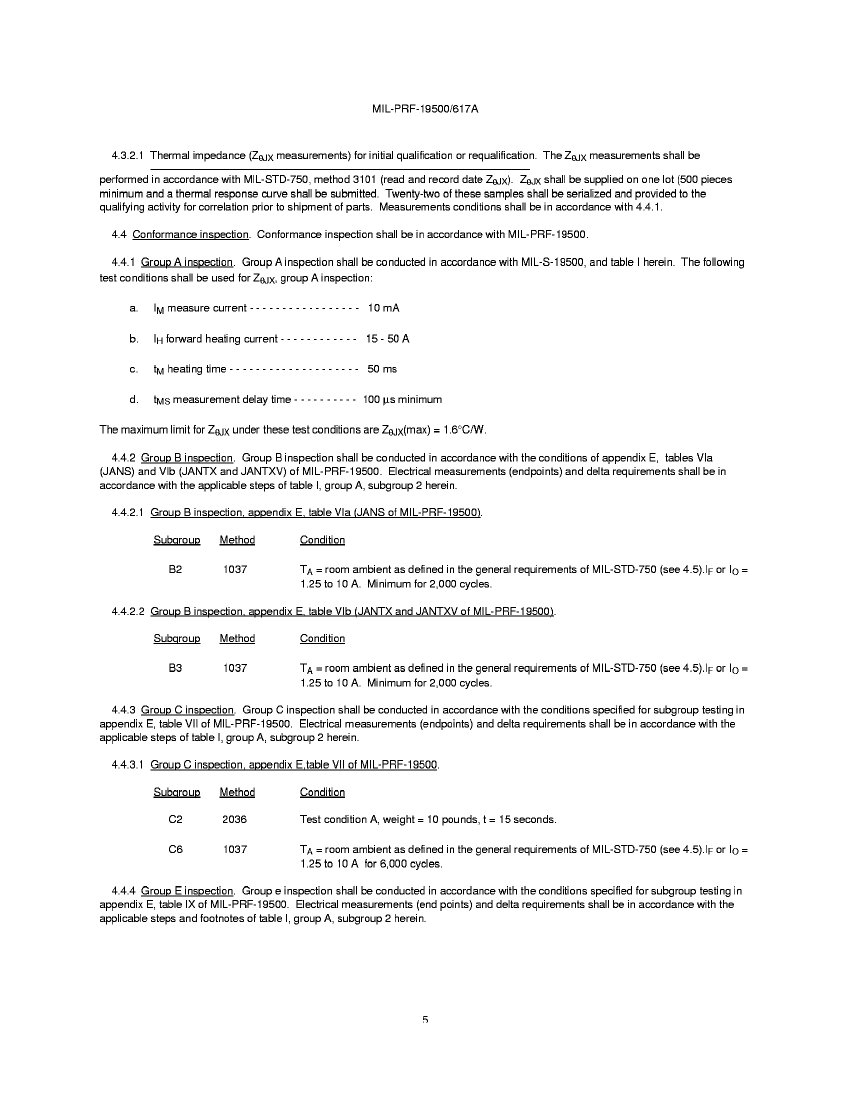

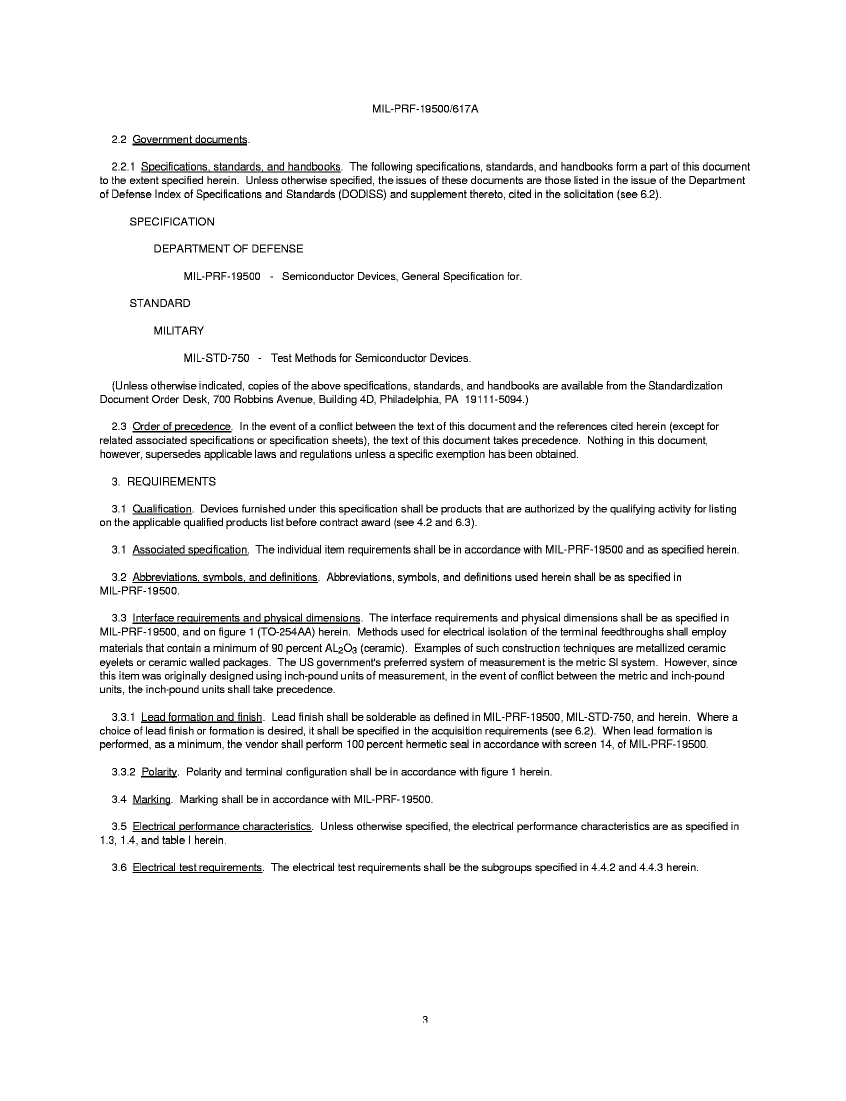

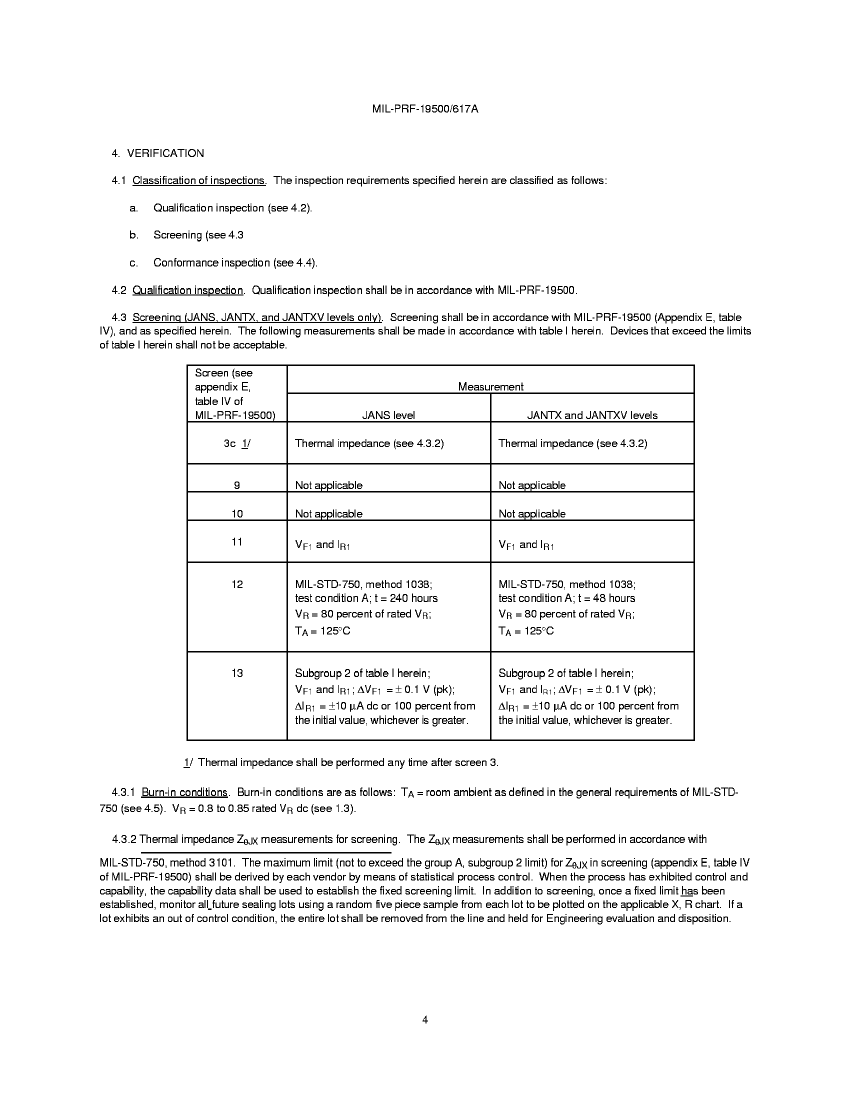

JANTX1N6672: DescriptionRectifier Diode, 1 Phase, 2 Element, 15A, 300V V(RRM), Silicon, TO-254AA,; CategoryDiscrete semiconductor diode; File Size243KB，9 Pages; ManufacturerSertech Laboratories Inc.

Download Datasheet Parametric Compare View All

JANTX1N6672 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTX1N6672	-	-	View	Buy Now

JANTX1N6672 Overview

Rectifier Diode, 1 Phase, 2 Element, 15A, 300V V(RRM), Silicon, TO-254AA,

JANTX1N6672 Parametric

Parameter Name	Attribute value
Maker	Sertech Laboratories Inc.
Reach Compliance Code	unknown
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	15 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

JANTX1N6672 Related Products

	JANTX1N6672	JAN1N6672	JAN1N6673	JAN1N6674	JANTXV1N6673	JANTX1N6673	JANTX1N6674	JANTXV1N6672	JANTXV1N6674
Description	Rectifier Diode, 1 Phase, 2 Element, 15A, 300V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 300V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 400V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 500V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 400V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 400V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 500V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 300V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, 500V V(RRM), Silicon, TO-254AA,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA
JESD-30 code	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A	150 A	150 A	150 A	150 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	300 V	400 V	500 V	400 V	400 V	500 V	300 V	500 V
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	Sertech Laboratories Inc.	Sertech Laboratories Inc.	-	-	Sertech Laboratories Inc.	Sertech Laboratories Inc.	Sertech Laboratories Inc.	Sertech Laboratories Inc.	-
