B0315XT-1WR2

Description
DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5
CategoryPower/power management    The power supply circuit
File Size236KB,5 Pages
ManufacturerMORNSUN
Websitehttp://www.mornsun-power.com
Environmental Compliance
Download Datasheet Parametric Compare View All

B0315XT-1WR2 Overview

DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5

B0315XT-1WR2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMORNSUN
package instructionROHS COMPLIANT, PLASTIC, PACKAGE-8/5
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage3.63 V
Minimum input voltage2.97 V
Nominal input voltage3.3 V
JESD-30 codeR-PDMA-G5
length12.7 mm
Number of functions1
Output times1
Number of terminals5
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Nominal output voltage15 V
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height7.5 mm
surface mountYES
technologyHYBRID
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output1 W
Fine-tuning/adjustable outputNO
width8.3 mm
Base Number Matches1

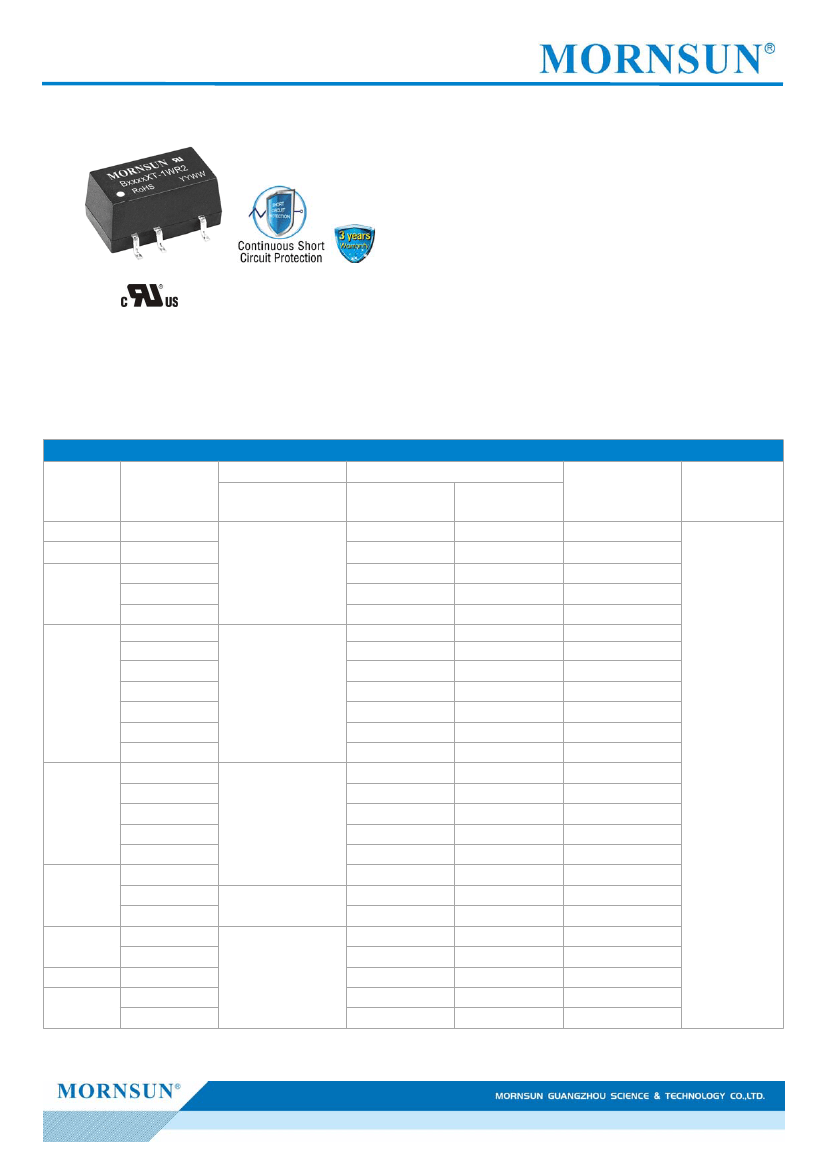

DC/DC Converter
B_XT-1WR2 Series
1W, Fixed input voltage, isolated & unregulated
single output
FEATURES
Continuous short-circuit protection
Operating temperature range: -40℃ to +105℃
Miniature SMD package
Isolation voltage: 1.5K VDC
Internal surface mounted design
No external component required
International standard pin-out
Patent Protection
RoHS
B_XT-1WR2 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are
suitable for
1. Where the voltage of the input power supply is stable (voltage variation: ±10%Vin);
2. Where isolation between input and output is necessary (isolation voltage
≤1500VDC);
3. Where the output voltage regulation and the ripple & noise of the output voltage is not strictly required;
4. Typical application: digit circuit condition; normal low-frequency artificial circuit condition; relay drive circuit condition, etc.
Selection Guide
Input Voltage (VDC)
Certification
--
UL
--
Part No.
B0303XT-1WR2
B0305XT-1WR2
B0312XT-1WR2
B0315XT-1WR2
B0324XT-1WR2
B0503XT-1WR2
B0505XT-1WR2
B0506XT-1WR2
UL
B0509XT-1WR2
B0512XT-1WR2
B0515XT-1WR2
B0524XT-1WR2
B1203XT-1WR2
B1205XT-1WR2
UL
B1209XT-1WR2
B1212XT-1WR2
B1215XT-1WR2
B1224XT-1WR2
--
B1505XT-1WR2
B1515XT-1WR2
UL
--
UL
B2405XT-1WR2
B2409XT-1WR2
B2412XT-1WR2
B2415XT-1WR2
B2424XT-1WR2
24
(21.6-26.4)
15
(13.5-16.5)
12
(10.8-13.2)
5
(4.5-5.5)
3.3
(2.97-3.63)
Nominal
(Range)
(VDC)
3.3
5
12
15
24
3.3
5
6
9
12
15
24
3.3
5
9
12
15
24
5
15
5
9
12
15
24
Output
Output Voltage
Output Current
(mA)(Max./Min.)
303/30
200/20
84/9
67/7
42/4
303/30
200/20
167/17
111/12
84/9
67/7
42/4
303/30
200/20
111/12
84/9
67/7
42/4
200/20
67/7
200/20
111/12
84/9
67/7
42/4
Efficiency
(%,Min./Typ.)
@ Full Load
65/69
70/74
76/80
76/80
76/80
68/72
76/80
76/80
76/80
76/80
76/80
76/80
68/72
76/80
76/80
76/80
76/80
76/80
76/80
76/80
76/80
76/80
76/80
76/80
76/80
220
Max. Capacitive
Load
(μF)
2015.04.03-A/3
Page 1 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation

B0315XT-1WR2 Related Products

B0315XT-1WR2 B2415XT-1WR2 B1215XT-1WR2 B1515XT-1WR2 B0515XT-1WR2 B0312XT-1WR2
Description DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, PLASTIC, PACKAGE-8/5
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
package instruction ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 ROHS COMPLIANT, PLASTIC, PACKAGE-8/5 ,
Reach Compliance Code unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Analog Integrated Circuits - Other Types DC-DC UNREGULATED POWER SUPPLY MODULE DC-DC UNREGULATED POWER SUPPLY MODULE DC-DC UNREGULATED POWER SUPPLY MODULE DC-DC UNREGULATED POWER SUPPLY MODULE DC-DC UNREGULATED POWER SUPPLY MODULE DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage 3.63 V 26.4 V 13.2 V 16.5 V 5.5 V 3.63 V
Minimum input voltage 2.97 V 21.6 V 10.8 V 13.5 V 4.5 V 2.97 V
Nominal input voltage 3.3 V 24 V 12 V 15 V 5 V 3.3 V
JESD-30 code R-PDMA-G5 R-PDMA-G5 R-PDMA-G5 R-PDMA-G5 R-PDMA-G5 R-PDMA-G5
length 12.7 mm 12.7 mm 12.7 mm 12.7 mm 12.7 mm 12.7 mm
Number of functions 1 1 1 1 1 1
Output times 1 1 1 1 1 1
Number of terminals 5 5 5 5 5 5
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Nominal output voltage 15 V 15 V 15 V 15 V 15 V 12 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum seat height 7.5 mm 7.5 mm 7.5 mm 7.5 mm 7.5 mm 7.5 mm
surface mount YES YES YES YES YES YES
technology HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum total power output 1 W 1 W 1 W 1 W 1 W 1 W
Fine-tuning/adjustable output NO NO NO NO NO NO
width 8.3 mm 8.3 mm 8.3 mm 8.3 mm 8.3 mm 8.3 mm
Base Number Matches 1 1 1 1 1 1
Maker MORNSUN MORNSUN MORNSUN MORNSUN MORNSUN -
