86093637113H40NDLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86093637113H40NDLF

86093637113H40NDLF: DescriptionBoard Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093637113H40NDLF Overview

Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE

86093637113H40NDLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	63
UL Flammability Code	94V-0

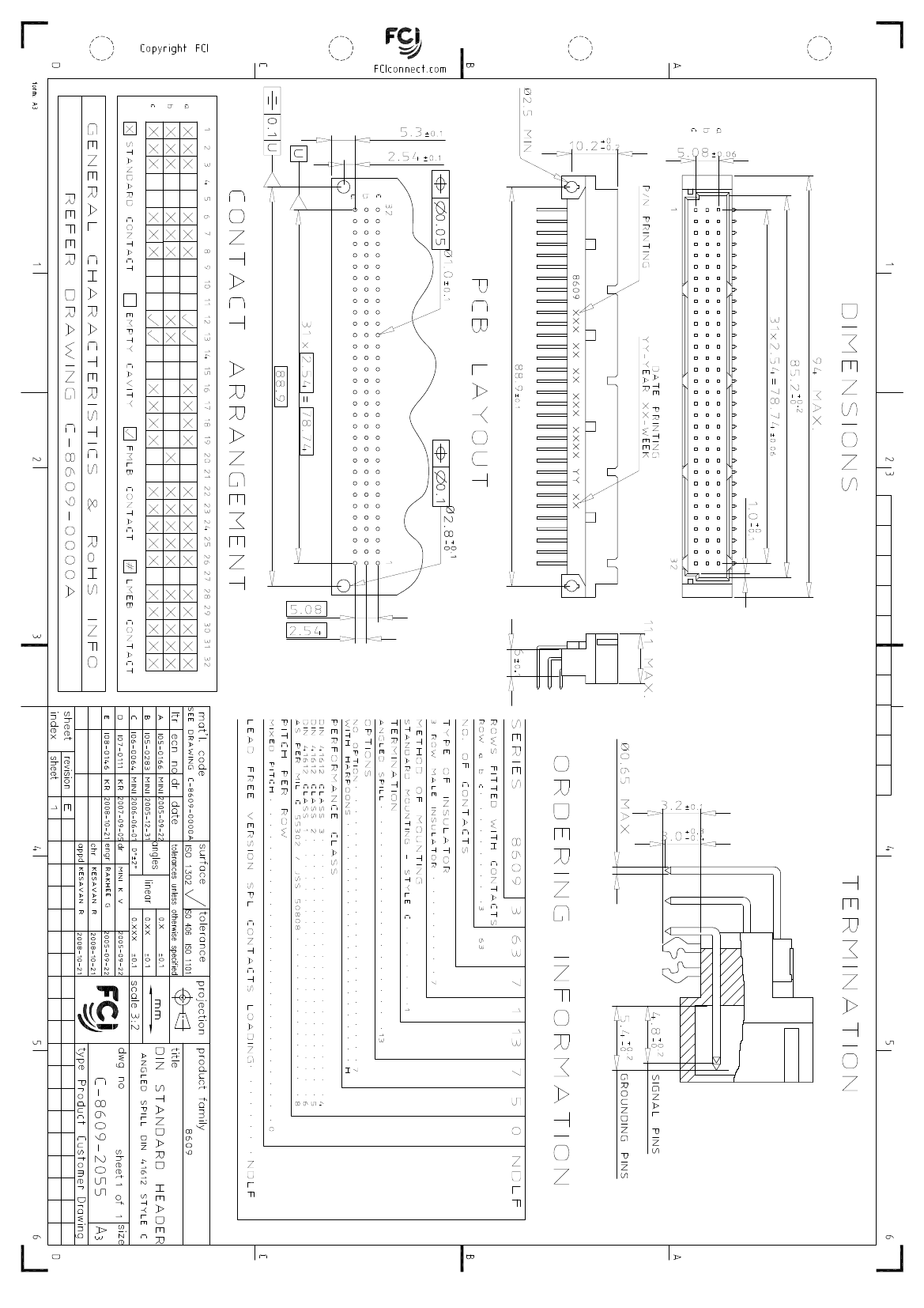

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: May 14, 2011

86093637113H40NDLF Related Products

	86093637113H40NDLF	86093637113760NDLF	86093637113780NDLF	86093637113750NDLF	86093637113H80NDLF	86093637113H50NDLF	86093637113H60NDLF	86093637113740NDLF
Description	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 63 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	63	63	63	63	63	63	63	63
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
JESD-609 code	e3	e3	e3	-	e3	e3	e3	e3
Manufacturer's serial number	8609	8609	8609	-	8609	8609	8609	8609
