Product Data Sheet |
Anixter Catalog Page
1007 (0.015 in. Wall, 300 V)
Product Description

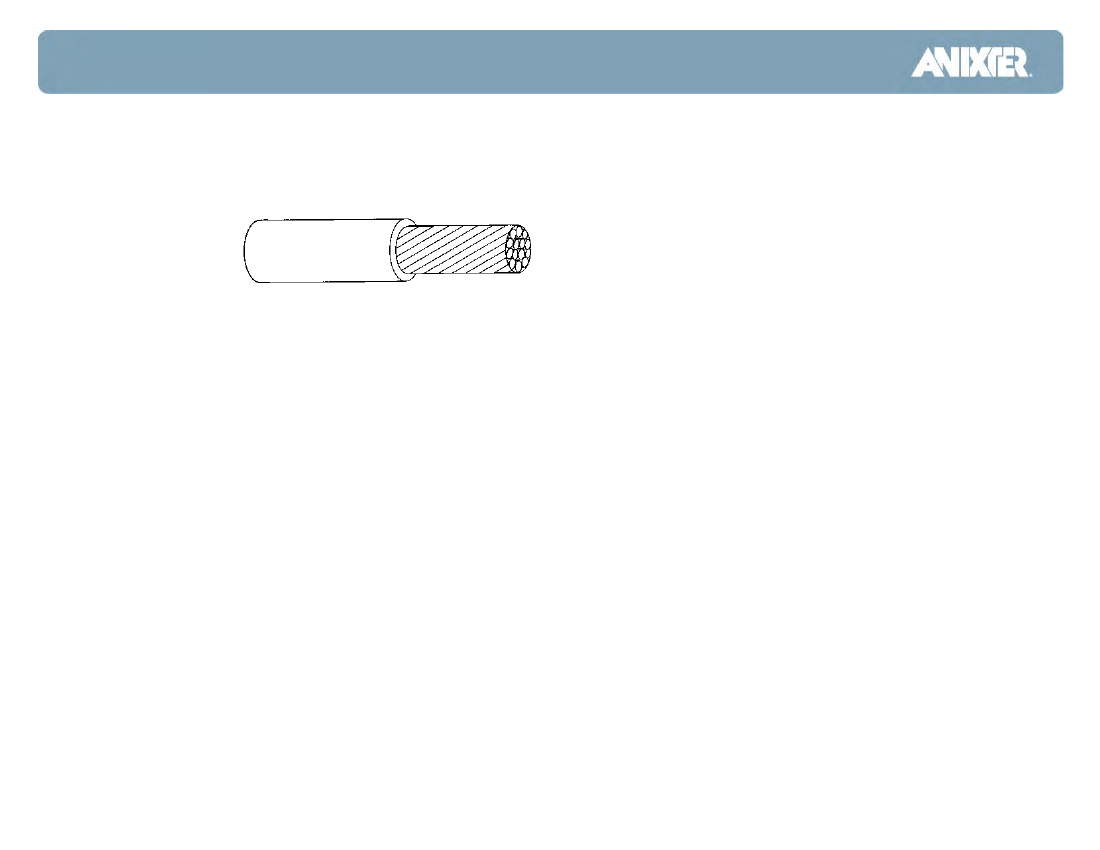

PVC insulation
Stranded and solid conductor
Applications
Internal wiring of electrical and electronic equipment.
Specifications
– CONDUCTOR: Tinned copper
– INSULATION: Polyvinyl Chloride (PVC)
– STANDARDS: UL recognized AWM Styles 1007/1569 per UL 758. Styles 1007/1569 (28-16 AWG) and
1569/1581 (14-10 AWG) pass VW-1 vertical test. CSA AWM I A/B, TR-64. All sizes pass FT-1 flame test
– TEMPERATURE: -10ºC to 80ºC (UL Style 1007/1581), 105ºC (UL Style 1569), 90ºC (CSA)
– VOLTAGE: 300 V
All part numbers require color code designation. If conductor coating differs from standard part number add identifier after stranding (i.e., UL
1007 16/26 prebond light blue with white stripe = 1007-16/26P-L69).28 through 16 AWG also rated 1569, AWM/TR 64(CSA). 14 AWG rated as
1569/1581, AWM/TR 64. 12 and 10 AWG rated as 1569/1581, AWM.
Electrical and Electronic Wire & Cable • Enterprise Cabling & Security Solutions • Fasteners
Anixter Inc. World Headquarters • 2301 Patriot Boulevard, Glenview, IL 60026-8020 • 1.800.ANIXTER • 224.521.8000 • anixter.com
Anixter is a leading global supplier of communications and security products, electrical and electronic wire and cable, fasteners and other small components. We help our customers specify solutions and make informed purchasing
decisions around technology, applications and relevant standards. Throughout the world, we provide innovative supply chain management solutions to reduce our customers’ total cost of production and implementation.
Anixter does not manufacture the items described in this publication. Any applicable product warranties are provided by the manufacturers. To the fullest extent permitted by law, Anixter disclaims all warranties, either express or implied.
The information provided and any images shown are for descriptive purposes only. Anixter makes no warranty or representation, express or implied, about the accuracy or completeness of any information provided. Data and suggestions made in the publication
are not to be construed as recommendations to purchase or as authorizations to use any products in violation of any law or regulation. All products are sold subject to Anixter’s General Conditions of Sale.
Product Data Sheet |
Anixter Catalog Page
Part No.
1007-28/7-XX
1007-26/1-XX
1007-26/7-XX
1007-24/1-XX
1007-24/7-XX
1007-22/1-XX
1007-22/7-XX
1007-20/10-XX
1007-18/1-XX
1007-18/16-XX
1007-16/26-XX
1569-14/41-XX
1569-12/65-XX
1569-10/105-XX
Conductor
AWG
28
26
26
24
24
22
22
20
18
18
16
14
12
10
Stranding No. x
AWG
7x36
Solid
7x34
Solid
7x32
Solid
7x30
10x30
Solid
16x30
26x30
41x30
65x30
105x30
Conductor Nom.
Dia.
0.015
0.016
0.019
0.020
0.024
0.025
0.030
0.037
0.040
0.048
0.060
0.075
0.096
0.130
Wire O.D.
0.047
0.048
0.050
0.052
0.057
0.062
0.062
0.067
0.079
0.079
0.091
0.110
0.123
0.161
Approx. Wt.
lb./1,000 ft.
1.6
1.8
2.0
2.4
2.8
3.3
3.7
4.8
6.7
7.0
10.5
15.0
23.0
35.0
Hook Up and Lead Wire Insulation Color Code Chart
0..........black
1..........brown
2..........red
3..........orange
4..........yellow
5..........green
6..........blue
7..........violet/purple
8..........gray
9..........white
P..........pink
T..........tan
D..........dark (i.e. D6=dark blue)
L...........light (i.e. L6=light blue)
For white with black stripe - 90
For green with yellow stripe - 54
For white with a black and red stripe - 902
For white and black twisted conductor - 9/0
For white, black and red twisted conductors - 9/0/2
Electrical and Electronic Wire & Cable • Enterprise Cabling & Security Solutions • Fasteners
Anixter Inc. World Headquarters • 2301 Patriot Boulevard, Glenview, IL 60026-8020 • 1.800.ANIXTER • 224.521.8000 • anixter.com
Anixter is a leading global supplier of communications and security products, electrical and electronic wire and cable, fasteners and other small components. We help our customers specify solutions and make informed purchasing
decisions around technology, applications and relevant standards. Throughout the world, we provide innovative supply chain management solutions to reduce our customers’ total cost of production and implementation.
Anixter does not manufacture the items described in this publication. Any applicable product warranties are provided by the manufacturers. To the fullest extent permitted by law, Anixter disclaims all warranties, either express or implied.
The information provided and any images shown are for descriptive purposes only. Anixter makes no warranty or representation, express or implied, about the accuracy or completeness of any information provided. Data and suggestions made in the publication
are not to be construed as recommendations to purchase or as authorizations to use any products in violation of any law or regulation. All products are sold subject to Anixter’s General Conditions of Sale.
