86093967897765LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86093967897765LF

86093967897765LF: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093967897765LF Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

86093967897765LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	96

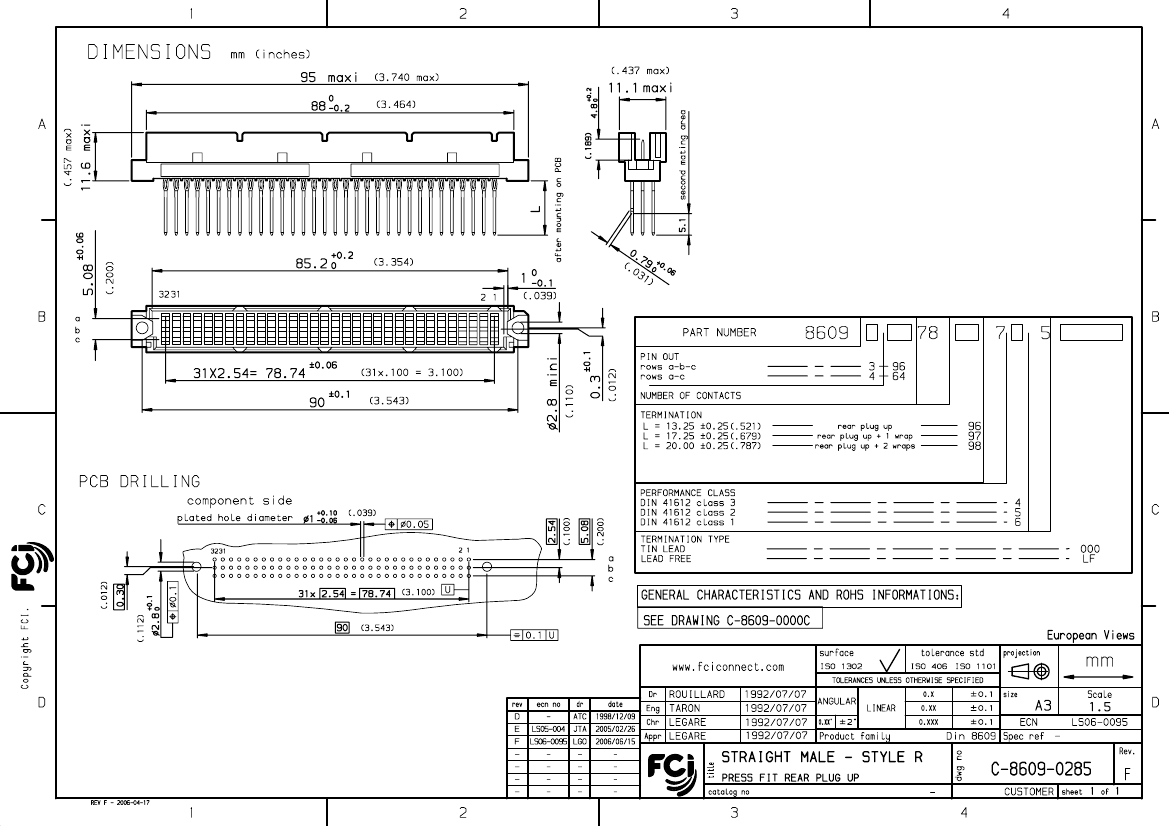

Preview

Download Datasheet

View All

PDM: Rev:F

STATUS:

Released

Printed: Aug 26, 2006

86093967897765LF Related Products

	86093967897765LF	86093967897745LF	86093967897755000	86093967898745000	86093967896745000	86093967896765000	86093967897745000	86093967897765000	86093967898755000	86093967898765000
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8609	8609	8609	8609	8609	8609	8609	8609	8609	8609
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	96	96	96	96	96	96	96	96	96	96
Maker	Amphenol	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Base Number Matches	-	-	1	1	1	1	1	1	1	1
