Part Number

Search

86093968894755000E3

Description
Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle
CategoryThe connector    The connector
File Size172KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

86093968894755000E3 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle

86093968894755000E3 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Other featuresSTANDARD: DIN 41612
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
DIN complianceYES
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number8609
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded3
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts96
UL Flammability Code94V-0

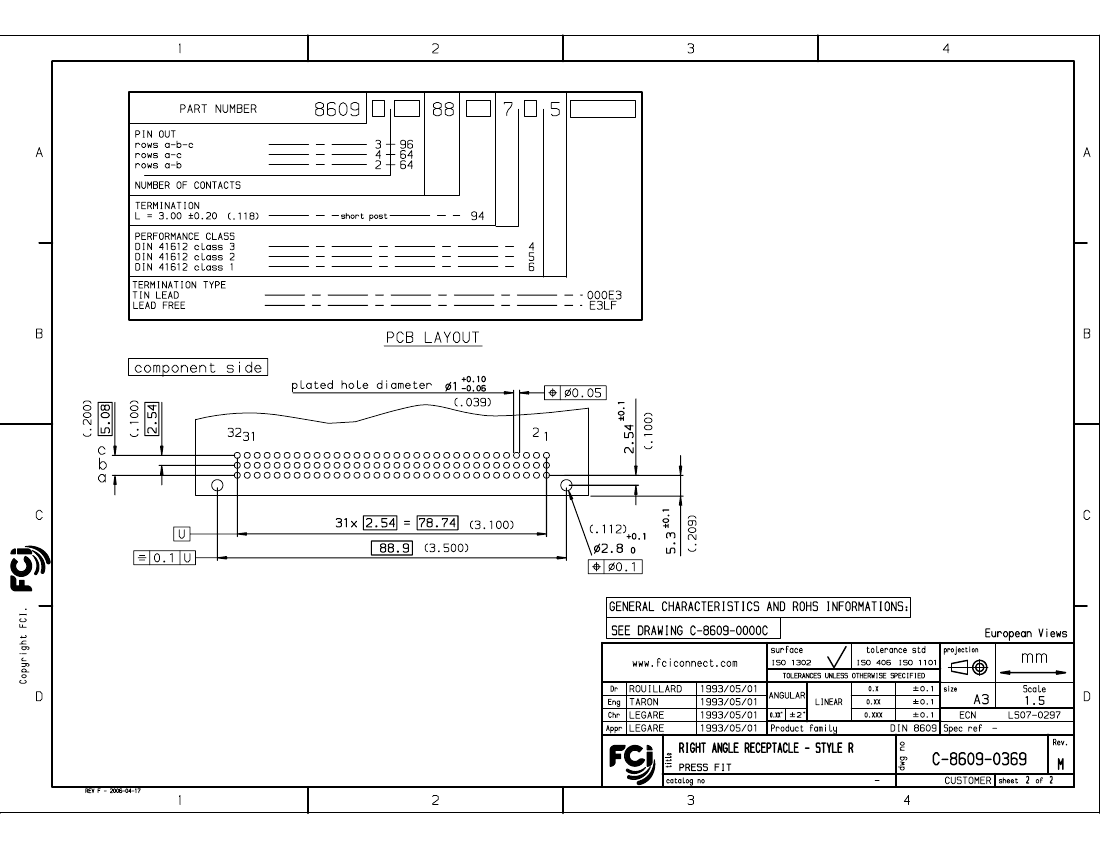

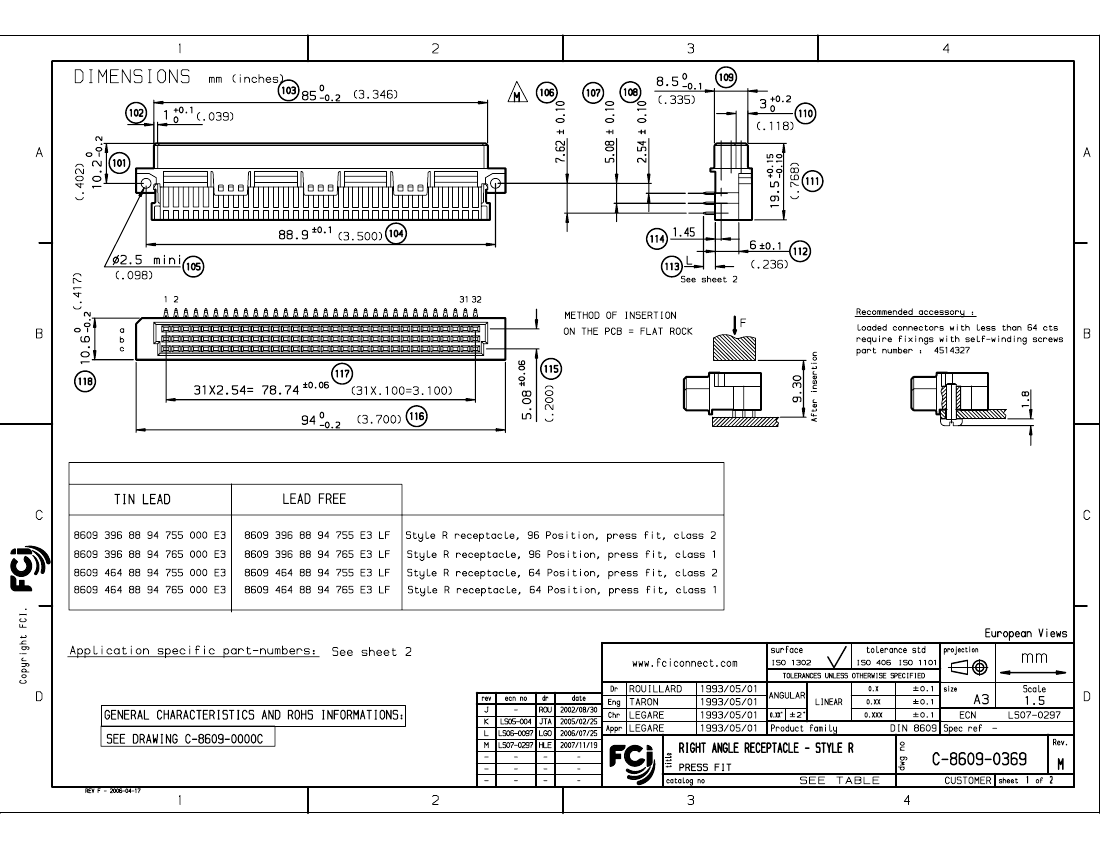

PDM: Rev:M
STATUS:
Released
Printed: May 14, 2011
.

86093968894755000E3 Related Products

86093968894755000E3 86093968894765000E3 86094648894765E3LF 86093968894755E3LF 86093968894765E3LF 86094648894755E3LF
Description Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle DIN RA RECEPT PRESSFIT F DIN RA RECEPT PRESSFIT F DIN RA RECEPT PRESSFIT F DIN RECEPT RA PF R
Maker Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant compliant compliant compliant
Other features STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
DIN compliance YES YES YES YES YES YES
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 3 3 2 3 3 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm 5.08 mm 2.54 mm 2.54 mm 5.08 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 96 96 64 96 96 64
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Is it Rohs certified? - incompatible conform to conform to conform to conform to
Contact material - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
package instruction - - LEAD FREE LEAD FREE LEAD FREE LEAD FREE
Factory Lead Time - - 7 weeks 7 weeks 7 weeks 7 weeks
