TCS8077-015277: DescriptionCircular DIN Connector, 7 Contact(s), Female, Cable Mount, Solder Terminal, Socket; CategoryThe connector The connector; File Size148KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric View All

TCS8077-015277 Overview

Circular DIN Connector, 7 Contact(s), Female, Cable Mount, Solder Terminal, Socket

TCS8077-015277 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
Contact pitch circle diameter	7 mm
DIN compliance	YES
DIN standard	45329
Electromagnetic interference shielding	NO
IEC compliance	NO
MIL compliance	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	7
Base Number Matches	1

Preview

Download Datasheet

View All

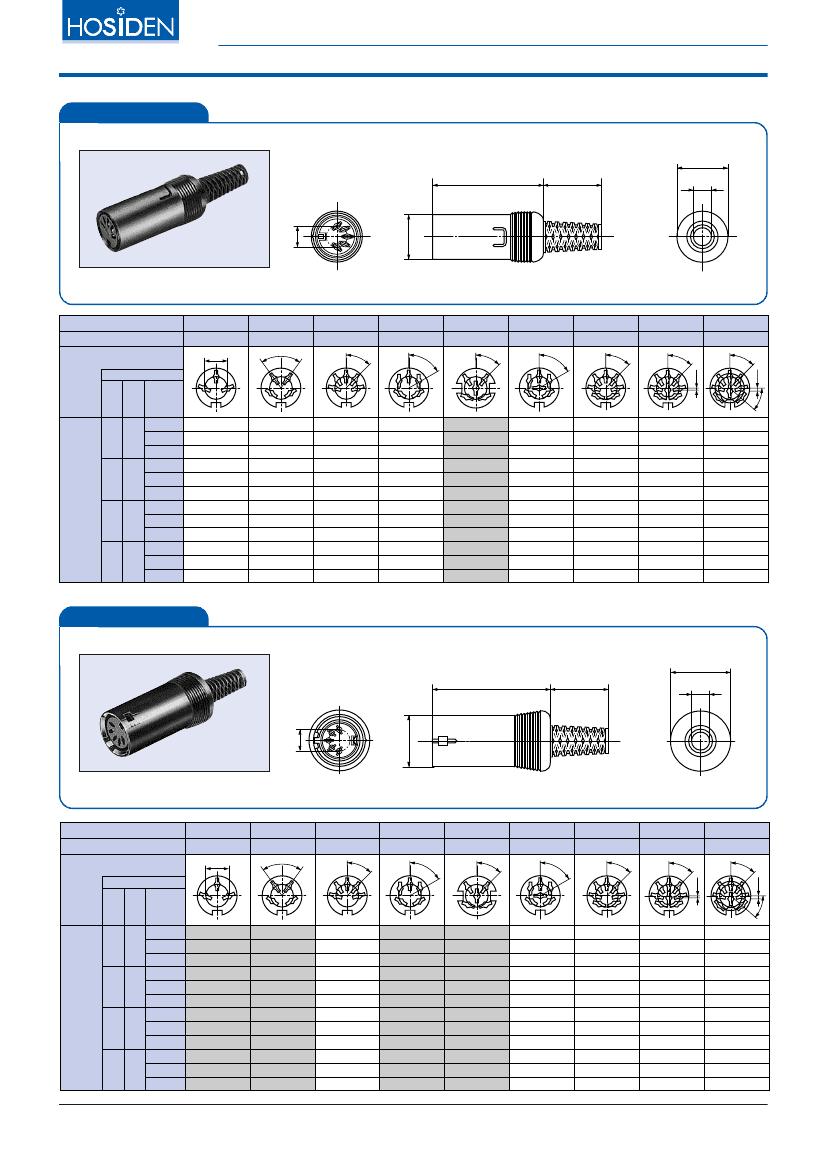

DIN Connectors (In-Line Sockets)
