LM108 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> LM108

LM108: DescriptionOP-AMP, 7500 uV OFFSET-MAX, PDIP8; Categorysemiconductor Analog mixed-signal IC; File Size441KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LM108 Overview

OP-AMP, 7500 uV OFFSET-MAX, PDIP8

LM108 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Maximum supply/operating voltage	18 V
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Maximum negative supply voltage	-18 V
Maximum input offset voltage	7500 mV
Processing package description	PLASTIC, DIP-8
state	DISCONTINUED
Craftsmanship	BIPOLAR
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	COMMERCIAL
Amplifier type	OP-AMP
Rated common mode rejection ratio	100 dB
Maximum input bias current IIB	0.0070 uA

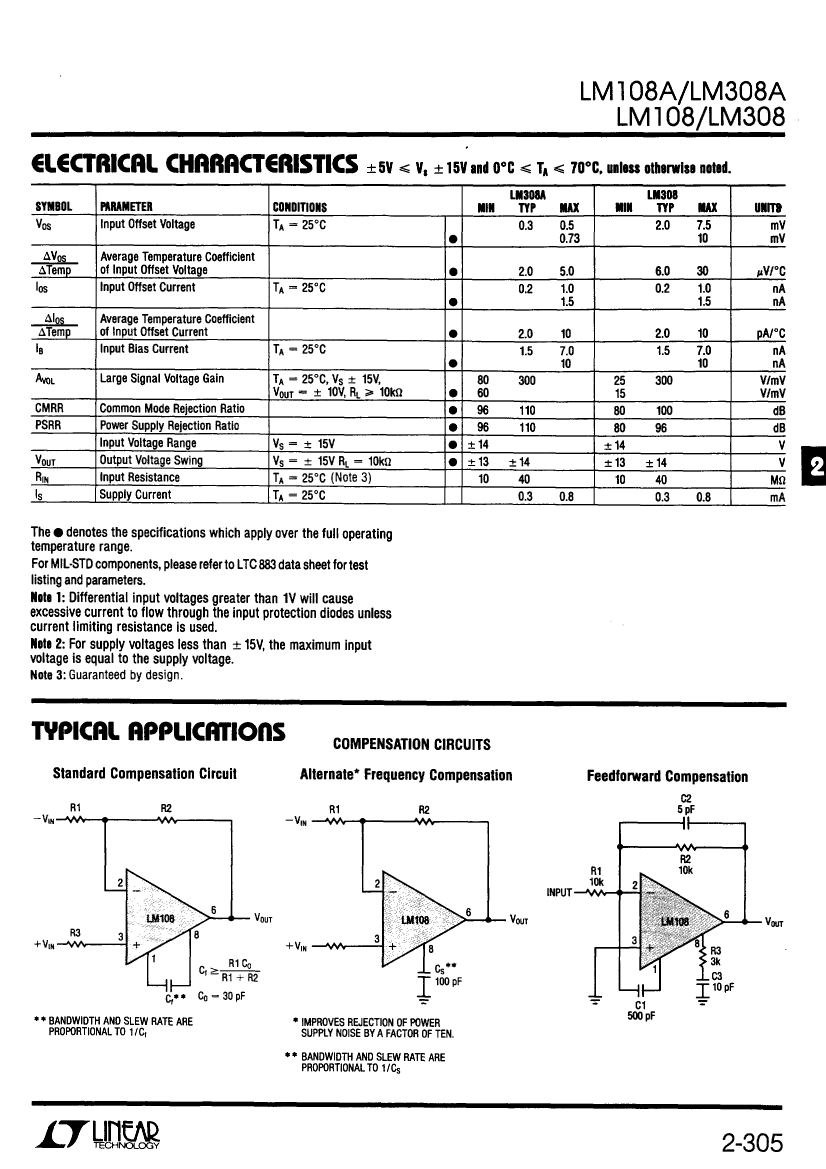

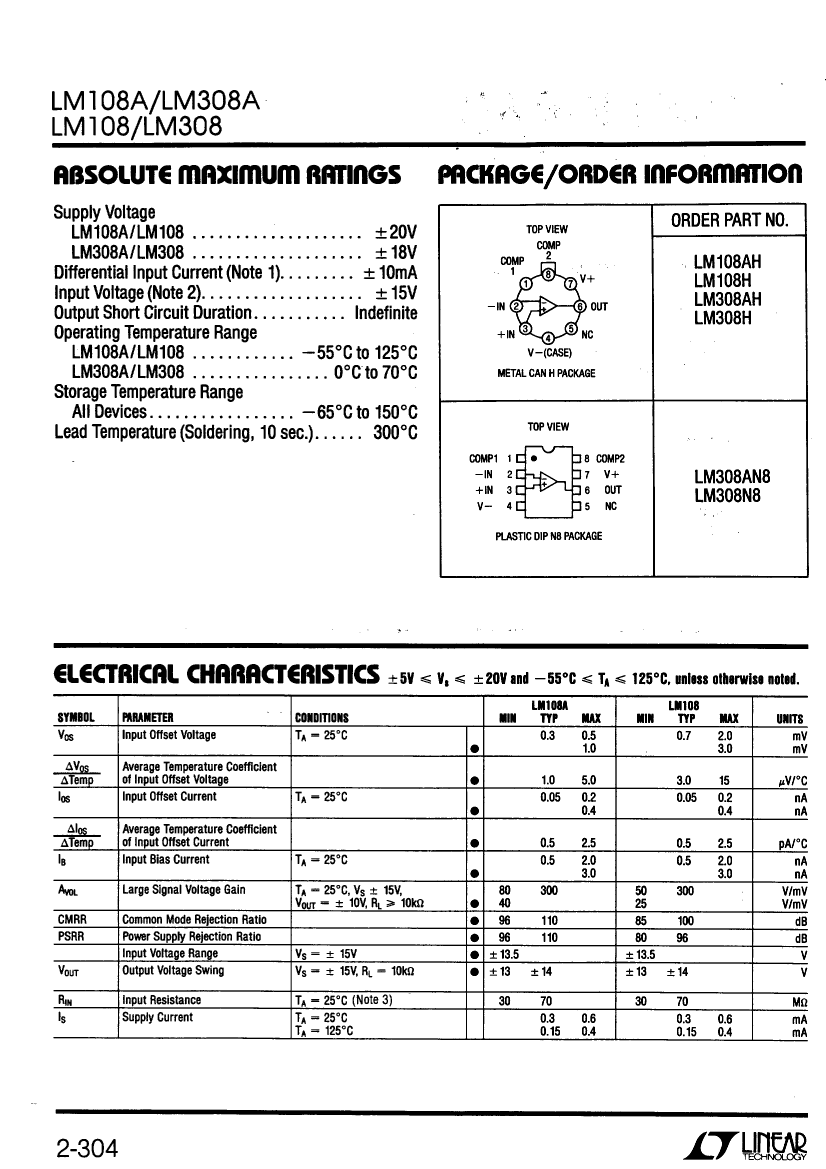

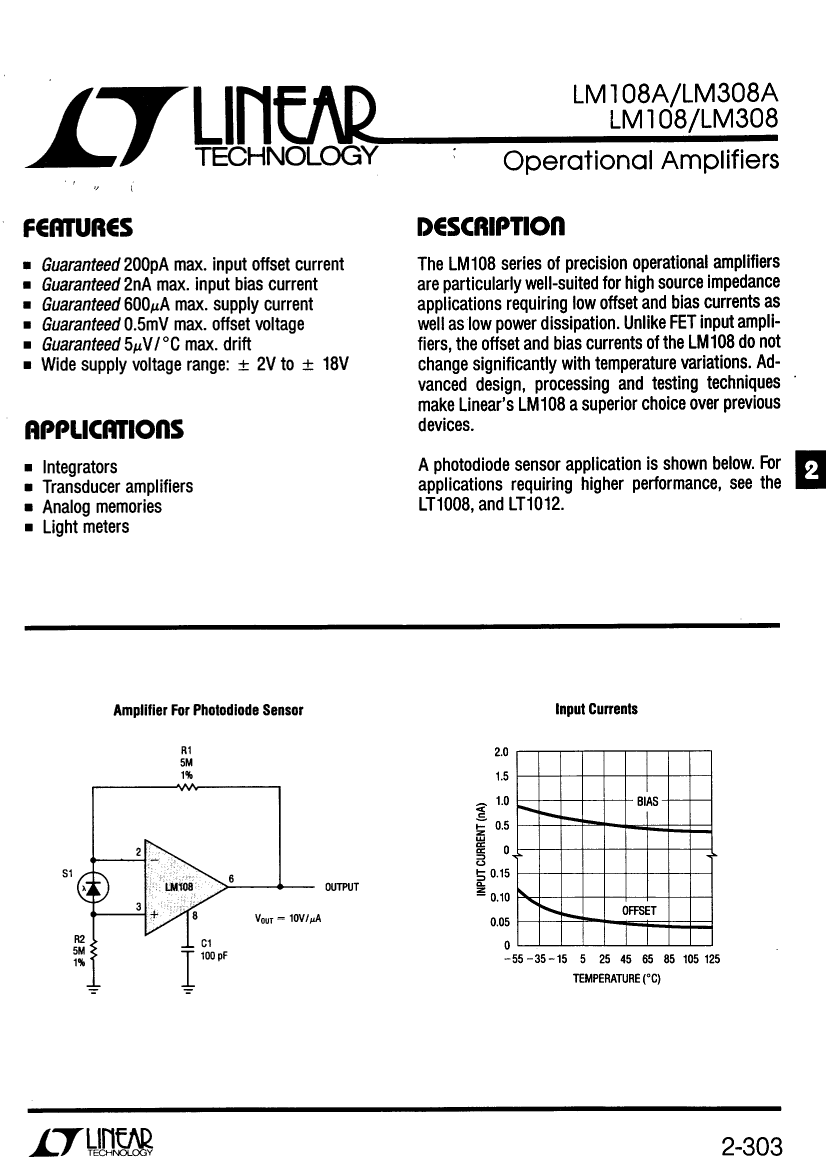

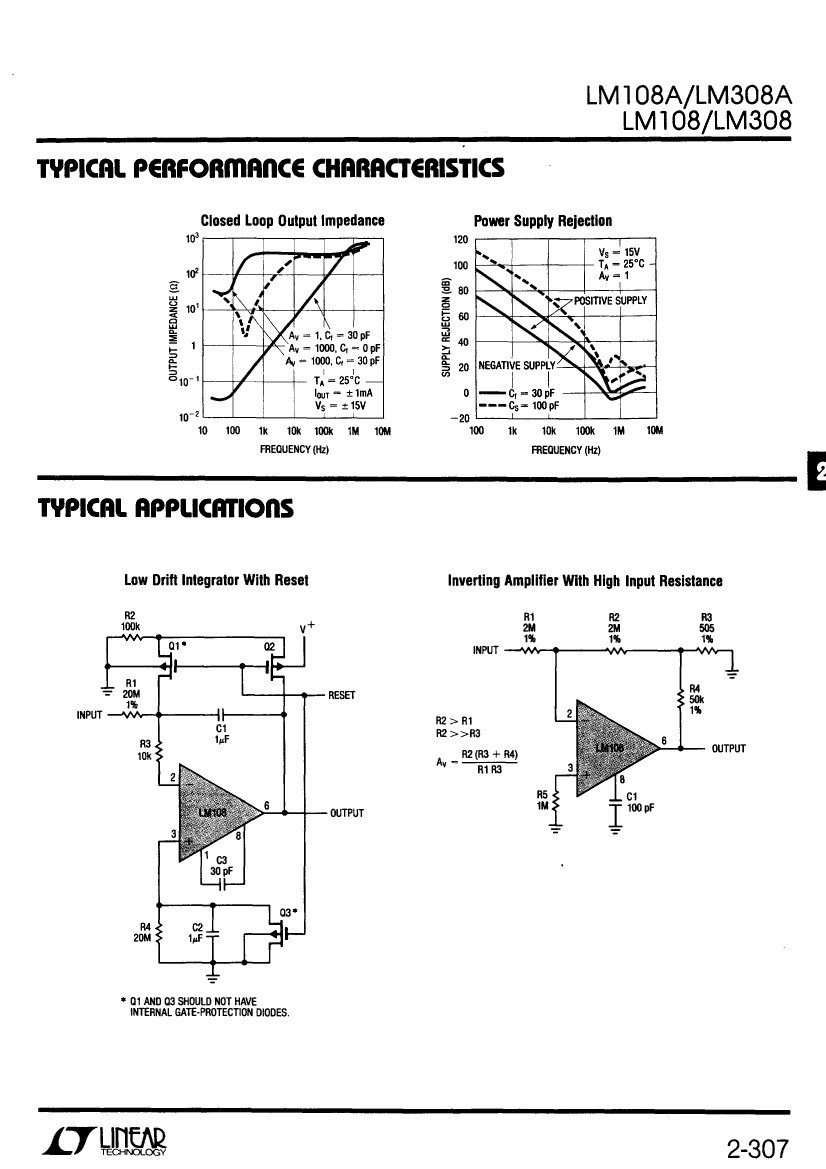

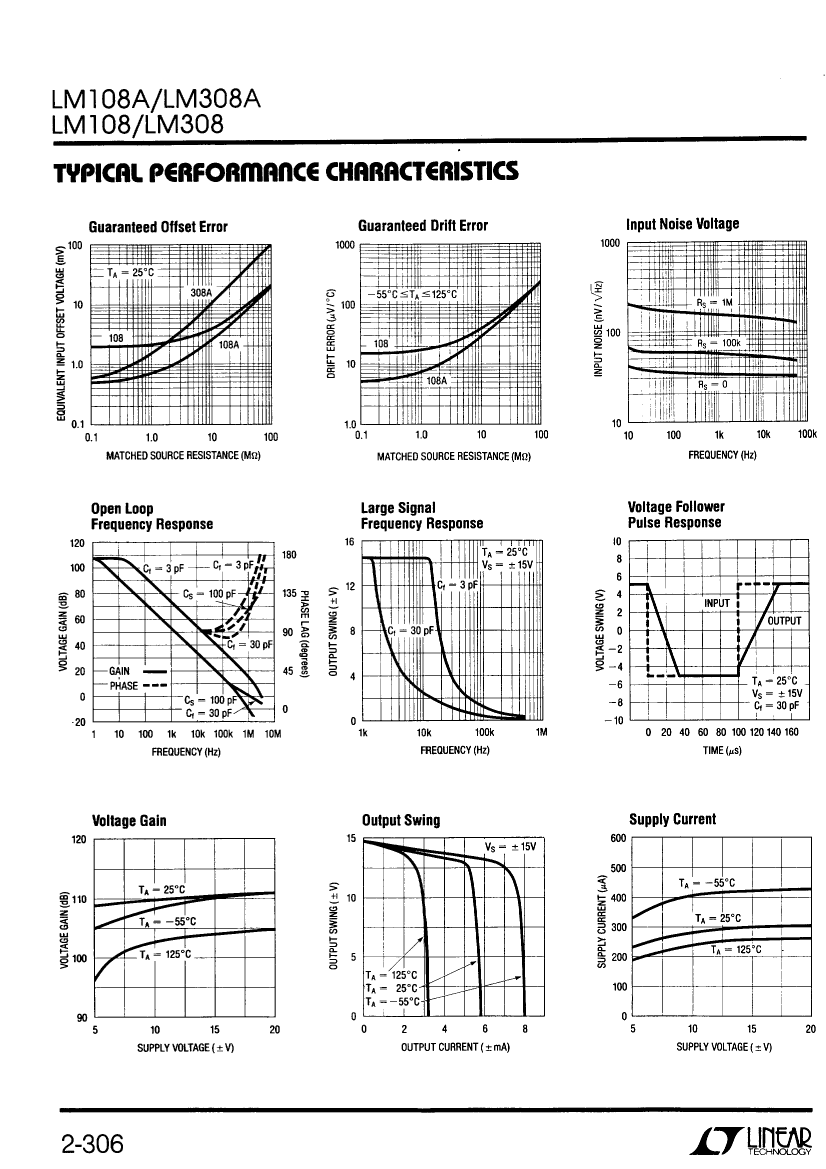

Preview

Download Datasheet

View All

LM108 Related Products

	LM108	LM308N8	LM308H	LM308AN8	LM308AH	LM308A	LM308	LM108H	LM108A	LM108AH
Description	OP-AMP, 7500 uV OFFSET-MAX, PDIP8	OP-AMP, 7500 uV OFFSET-MAX, PDIP8	OP-AMP, 10000 uV OFFSET-MAX, MBCY8	OP-AMP, 500 uV OFFSET-MAX, PDIP8	OP-AMP, 730 uV OFFSET-MAX, MBCY8	OP-AMP, 7500 uV OFFSET-MAX, PDIP8	OP-AMP, 7500 uV OFFSET-MAX, PDIP8	OP-AMP, 3000 uV OFFSET-MAX, MBCY8	OP-AMP, 7500 uV OFFSET-MAX, PDIP8	OP-AMP, 1000 uV OFFSET-MAX, MBCY8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8	8
Maximum operating temperature	70 Cel	70 °C	70 °C	70 °C	70 °C	70 Cel	70 Cel	125 °C	70 Cel	125 °C
Minimum operating temperature	0.0 Cel	-	-	-	-	0.0 Cel	0.0 Cel	-55 °C	0.0 Cel	-55 °C
Maximum input offset voltage	7500 mV	7500 µV	7500 µV	500 µV	500 µV	7500 mV	7500 mV	3000 µV	7500 mV	1000 µV
Terminal form	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE
Terminal location	DUAL	DUAL	BOTTOM	DUAL	BOTTOM	DUAL	DUAL	BOTTOM	DUAL	BOTTOM
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY
Amplifier type	OP-AMP	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OP-AMP	OP-AMP	OPERATIONAL AMPLIFIER	OP-AMP	OPERATIONAL AMPLIFIER
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	-	-	incompatible	-	incompatible
Maker	-	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	-	-	Linear ( ADI )	-	Linear ( ADI )
Parts packaging code	-	DIP	BCY	DIP	BCY	-	-	BCY	-	METAL CAN
package instruction	-	DIP, DIP8,.3	, CAN8,.2	DIP, DIP8,.3	METAL CAN-8	-	-	METAL CAN-8	-	, CAN8,.2
Contacts	-	8	8	8	8	-	-	8	-	8
Reach Compliance Code	-	compli	unknow	compli	compli	-	-	unknow	-	unknow
ECCN code	-	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	-	EAR99
Architecture	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-	-	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	-	0.007 µA	0.007 µA	0.007 µA	0.007 µA	-	-	0.002 µA	-	0.002 µA
Maximum bias current (IIB) at 25C	-	0.007 µA	0.007 µA	0.007 µA	0.007 µA	-	-	0.002 µA	-	0.002 µA
Minimum Common Mode Rejection Ratio	-	80 dB	80 dB	96 dB	96 dB	-	-	85 dB	-	96 dB
Nominal Common Mode Rejection Ratio	-	100 dB	100 dB	110 dB	110 dB	-	-	100 dB	-	110 dB
frequency compensation	-	NO	NO	NO	NO	-	-	NO	-	NO
JESD-30 code	-	R-PDIP-T8	O-MBCY-W8	R-PDIP-T8	O-MBCY-W8	-	-	O-MBCY-W8	-	O-MBCY-W8
JESD-609 code	-	e0	e0	e0	e0	-	-	e0	-	e0
low-dissonance	-	NO	NO	YES	YES	-	-	NO	-	NO
Negative supply voltage upper limit	-	-18 V	-18 V	-18 V	-18 V	-	-	-20 V	-	-20 V
Package body material	-	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	METAL	-	-	METAL	-	METAL
Encapsulate equivalent code	-	DIP8,.3	CAN8,.2	DIP8,.3	CAN8,.2	-	-	CAN8,.2	-	CAN8,.2
Package shape	-	RECTANGULAR	ROUND	RECTANGULAR	ROUND	-	-	ROUND	-	ROUND
Package form	-	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	-	-	CYLINDRICAL	-	CYLINDRICAL
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	-	NOT SPECIFIED
power supply	-	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	-	-	+-5/+-20 V	-	+-5/+-20 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	-	Not Qualified
Maximum slew rate	-	0.8 mA	0.8 mA	0.8 mA	0.8 mA	-	-	0.6 mA	-	0.6 mA
Supply voltage upper limit	-	18 V	18 V	18 V	18 V	-	-	20 V	-	20 V
surface mount	-	NO	NO	NO	NO	-	-	NO	-	NO
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-	-	BIPOLAR	-	BIPOLAR
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	-	NOT SPECIFIED
Minimum voltage gain	-	25000	25000	80000	80000	-	-	50000	-	80000
