LM-2512 datasheet, PDF - EEWORLD Datasheet

LM-2512: Description16 x 32 matrix display; File Size75KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet View All

LM-2512 Overview

16 x 32 matrix display

LED displays

16

32 matrix display

FExternal

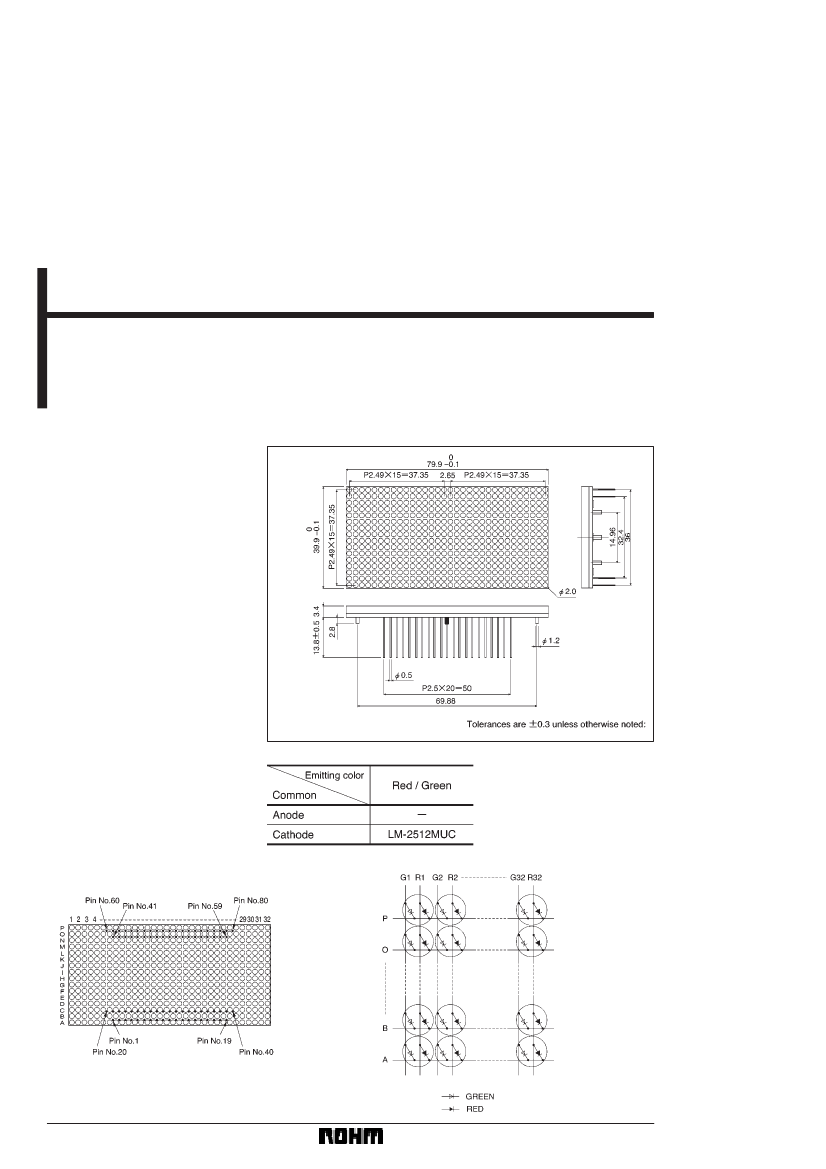

dimensions (Units: mm)

LM-2512 Series

The LM-2512 series are a 16 32 ma-

trix display which can be used in a wide

variety of applications, including alpha-

bet, numeric, symbol, and graphic dis-

plays. Dual-color red / green is avail-

able.

FApplications

Light sources for displays

FFeatures

1) 16

32 dot matrix

Circular emitters : 2.0 mm diameter

2) External dimensions: 39.9 79.9 6.2

mm

3) Black package.

FSelection

guide

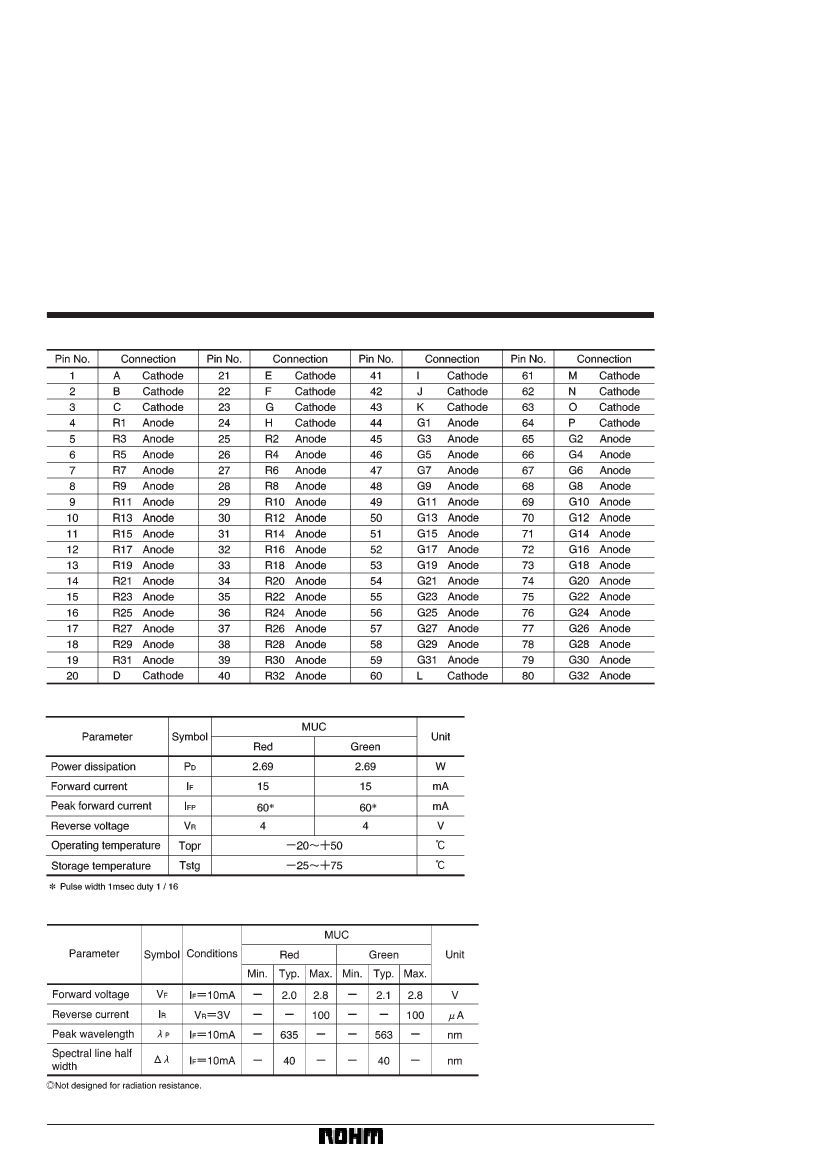

FPin

assignments

FInternal

circuit schematic
