B-15/13-622-TDPM-SMU4-60 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> B-15/13-622-TDPM-SMU4-60

B-15/13-622-TDPM-SMU4-60: DescriptionTransceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), MU Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size817KB，6 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-15/13-622-TDPM-SMU4-60 Overview

Transceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), MU Connector, Through Hole Mount

B-15/13-622-TDPM-SMU4-60 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IT ALSO OPERATES FROM 1480 NM TO 1580 NM
body width	25.4 mm
body height	9.8 mm
Body length or diameter	39.1 mm
Communication standards	GR-468, OC-12, SDH, SONET, STM-4
Connection Type	MU CONNECTOR
Data rate (receive)	622 Mbps
Data rate (send)	622 Mbps
Emitter/Detector Type	LASER DIODE
Fiber optic equipment types	TRANSCEIVER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.891 mW
minimum return loss	14 dB
Sensitivity	-28 dBm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

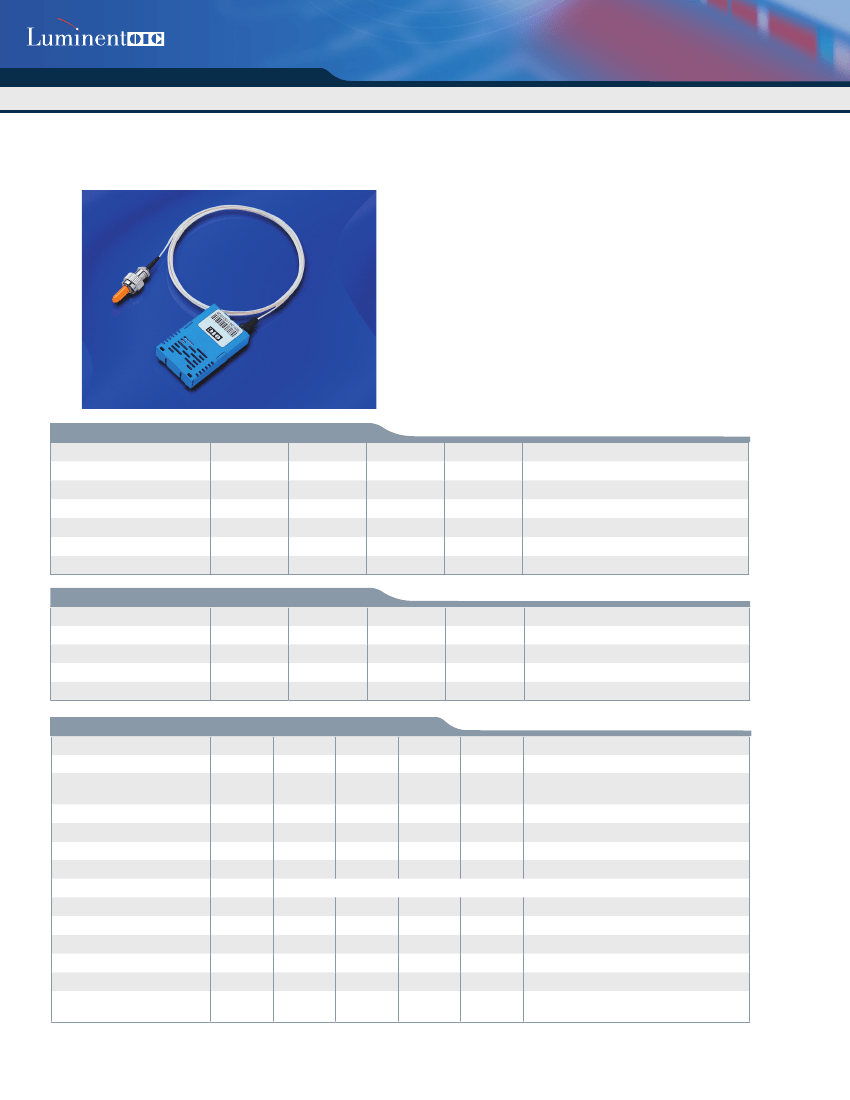

622 Mbps Bi-directional Single Fiber Transceiver

B-15/13-622-TDPM(3)-SXX4-60

Features

• Coaxial single mode single ﬁber package with optional

SC/FC/ST/MU connector

• Wavelength Tx 1530 nm/ Rx 1310nm

• SONET OC-12 SDH STM-4

• Single +5V/+3.3V Power Supply

• PECL/LVPECL Differential Inputs and Outputs

• Wave Solderable and Aqueous washable

• Class 1 Laser Int. Safety Standad IEC 825 Compliant

• Uncooled laser diode with MQW structure DFB Laser

• Complies with Telcordia (Bellcore) GR-468-CORE

• Temperature Range: 0 to 70ºC

• Optical Isolation >30 dB

• Cross Talk < -33 dB

• Optical Return Loss > 14dB

Absolute Maximum Rating

Parameter

Power Supply Voltage (5V)

Power Supply Voltage (3.3V)

Output Current

Soldering Temperature

Operating Temperature

Storage Temperature

Symbol

out

Min.

-40

Max.

3.6

260

Unit

ºC

Note

B-15/13-622-TDPM-SXX4-60

B-15/13-622-TDPM3-SXX4-60

10 seconds on leads only

opr

stg

Recommended Operating Condition

Parameter

Power Supply Voltage (5V)

Power Supply Voltage (3.3V)

Operating Temperature (Case)

Data Rate

Transmitter Speciﬁcations

Parameter

Optical

Optical Transmit Power

Output center Wavelength

Output Spectrum Width

Side Mode Suppression Ratio

Extinction Ratio

Output Eye

Optical Rise Time

Optical Fall Time

Optical Isolation

Optical Return Loss

Relative Intensity Noise

Total Jitter

Symbol

opr

Min.

4.75

3.1

Typ.

3.3

622

Max.

5.25

3.5

Unit

ºC

Mbps

Symbol

Min

Typical

Max

Unit

Notes

Output power is coupled into a 9/125 µm

single mode ﬁber

-20 dB, width

CW, P

=5mW (0 to 70ºC)

∆λ

-3

1480

8.2

1580

1.2

-120

0.55

dBm

dB/Hz

Compliant with Bellcore TR-NWT-000253 and ITU recommendation G.957

10% to 90% Values

Tx:1530 nm/ Rx:1310 nm

RIN

Measured with 2

-1 PRBS with 72 ones and

72 zeros.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS832-Apr1905

rev. A.0

B-15/13-622-TDPM-SMU4-60 Related Products

	B-15/13-622-TDPM-SMU4-60	B-15/13-622-TDPM3-SMU4-60
Description	Transceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), MU Connector, Through Hole Mount	Transceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), MU Connector, Through Hole Mount
Reach Compliance Code	unknown	unknown
Other features	IT ALSO OPERATES FROM 1480 NM TO 1580 NM	IT ALSO OPERATES FROM 1480 NM TO 1580 NM
body width	25.4 mm	25.4 mm
body height	9.8 mm	9.8 mm
Body length or diameter	39.1 mm	39.1 mm
Communication standards	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4
Connection Type	MU CONNECTOR	MU CONNECTOR
Data rate (receive)	622 Mbps	622 Mbps
Data rate (send)	622 Mbps	622 Mbps
Emitter/Detector Type	LASER DIODE	LASER DIODE
Fiber optic equipment types	TRANSCEIVER	TRANSCEIVER
Fiber type	9/125, SMF	9/125, SMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C
Maximum operating wavelength	1360 nm	1360 nm
Minimum operating wavelength	1260 nm	1260 nm
Nominal operating wavelength	1310 nm	1310 nm
Nominal optical power output	0.891 mW	0.891 mW
minimum return loss	14 dB	14 dB
Sensitivity	-28 dBm	-28 dBm
Maximum supply voltage	5.25 V	3.5 V
Minimum supply voltage	4.75 V	3.1 V
Nominal supply voltage	5 V	3.3 V
surface mount	NO	NO
Base Number Matches	1	1
