2025-6017-06

Description
Directional Coupler, 6000MHz Min, 18000MHz Max, 0.7dB Insertion Loss-Max, CASE 5
CategoryWireless rf/communication    Radio frequency and microwave
File Size43KB，1 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric Compare View All

2025-6017-06 Online Shopping

Suppliers Part Number Price MOQ In stock
2025-6017-06 - - View Buy Now

2025-6017-06 Overview

Directional Coupler, 6000MHz Min, 18000MHz Max, 0.7dB Insertion Loss-Max, CASE 5

2025-6017-06 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionCASE 5
Reach Compliance Codecompliant
Other featuresSMA
structureCOAXIAL
Maximum input power (CW)46.99 dBm
Maximum insertion loss0.7 dB
Maximum operating frequency18000 MHz
Minimum operating frequency6000 MHz
Maximum operating temperature125 °C
Minimum operating temperature-54 °C
RF/Microwave Device TypesDIRECTIONAL COUPLER
Maximum voltage standing wave ratio1.4
Base Number Matches1

Preview

Download Datasheet

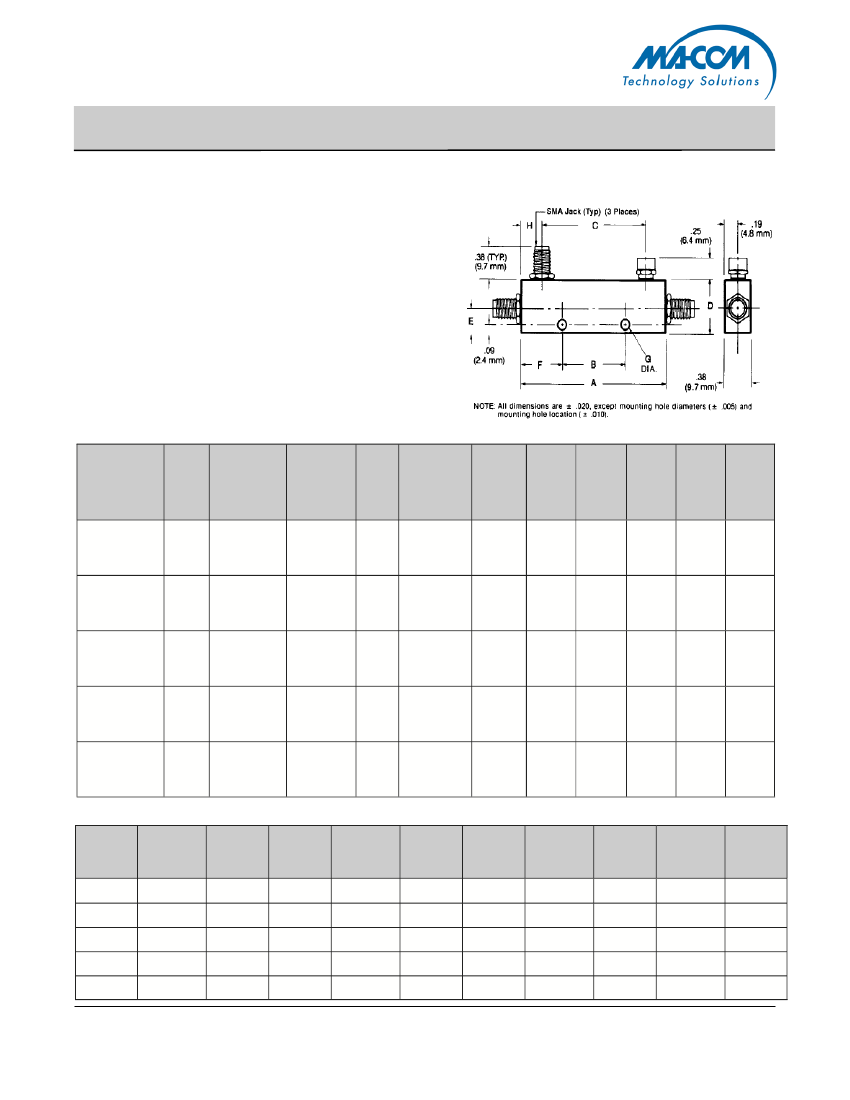

2025 Series
Directional Couplers,
Multi-Octave
Features
•
•
•
•
•
Flat Frequency Response
Frequency Range: 0.5 - 18 GHz
Multi-Octave Bandwidths
Temperature Range: -54°C to +125°C
Meets MIL-E-5400 Environments
Rev. V2
Outline Drawing
Specifications
Part Number Case
Style
Freq.
Range
(GHz)
Coupling Freq. Insertion
(Include. Sens Loss Max
Freq.
. (dB)
(dB)
Sens.(dB)
6 ± 1.0
10 ± 1.0
16 ± 1.0*
20 ± 1.0
6 ± 1.0
10 ± 1.0
16 ± 1.0*
20 ± 1.0
6 ± 1.0
10 ± 1.0
20 ± 1.0
6 ± 1.0
10 ± 1.0
16 ± 1.0*
20 ± 1.0
6 ± 1.0
10 ± 1.0
16 ± 1.0*
20 ± 1.0
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.3
±0.3
±0.3
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
0.4
0.35
0.3
0.3
0.35
0.3
0.3
0.3
0.4
0.35
0.35
0.5
0.5
0.5
0.5
0.7
0.6
0.6
0.6
Direct.
Min.
(dB)
VSWR
Max
Prim
Line
1.15
1.15
1.15
1.15
1.20
1.20
1.20
1.20
1.25
1.25
1.25
1.30
1.30
1.30
1.30
1.40
1.40
1.40
1.40
VSWR Power Power Power
Max (Input) (Input) (Input)
Sec
Avg.
Avg.
Pk.
Line
In. (w) Refl.
(kW)
(W)
1.15
1.15
1.15
1.15
1.20
1.20
1.20
1.20
1.25
1.25
1.25
1.30
1.30
1.30
1.30
1.40
1.40
1.40
1.40
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
4
10
40
50
4
10
40
50
4
10
50
4
10
40
50
4
10
40
50
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
2025-6001-06
2025-6002-10
2025-6003-16
2025-6004-20
2025-6005-06
2025-6006-10
2025-6007-16
2025-6008-20
2025-6009-06
2025-6010-10
2025-6012-20
2025-6013-06
2025-6014-10
2025-6015-16
2025-6016-20
2025-6017-06
2025-6018-10
2025-6019-16
2025-6020-20
1
1
1
1
2
2
2
2
3
3
3
4
4
4
4
5
5
5
5
0.5-2.0
18
18
22
22
18
18
22
22
18
18
20
15
15
15
15
15
16
16
15
1.0-4.0
2.0-8.4
4.0-12.4
6.0-18.0
Mechanical Specifications
Case
Style
1
2
3
4
5
1
*Reference to output port for use as leveling coupler.
A
Inch
(mm)
4.92 (125)
2.66( 67.6)
1.99 (50.5)
1.21 (30.7)
1.16 (29.5)
B
Inch
(mm)
3.5 (89)
C
Inch
(mm)
4.42 (112)
D
Inch
(mm)
0.60 (15.2)
0.60 (15.2)
0.63 (15.9)
0.60 (15.2)
0.57 (14.4)
E
Inch
(mm)
F
Inch
(mm)
G
Inch
(mm)
H
Inch
(mm)
0.25 (6.4)
Weight
oz
2.10
1.26
1.05
0.74
0.69
Weight
g
58.8
35.3
29.4
20.7
19.3
0.27 (6.73) 0.71 (18.1) 0.143 (3.63)
0.27 (6.73)
0.59 (15)
1.48 (37.6) 2.22 (56.4)
0.88 (22.2) 1.44 (36.6)
0.38 (9.7)
0.69 (17.6)
0.143 (3.63) 0.22 (5.59)
0.28 (7.11) 0.56 (14.2) 0.143 (3.63) 0.28 (7.06)
0.22 (5.56) 0.42 (10.6) 0.104 (2.64) 0.26 (6.55)
0.25 (6.35) 0.33 (8.33) 0.104 (2.64) 0.25 (6.45)
0.50 (12.7) 0.65 (16.5)
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.

2025-6017-06 Related Products

2025-6017-06 2025-6014-10 2025-6019-16 2025-6003-16 2025-6007-16 2025-6012-20 2025-6015-16 2025-6005-06 2025-6013-06
Description Directional Coupler, 6000MHz Min, 18000MHz Max, 0.7dB Insertion Loss-Max, CASE 5 Directional Coupler, 4000MHz Min, 12400MHz Max, 0.5dB Insertion Loss-Max, CASE 4 Directional Coupler, 6000MHz Min, 18000MHz Max, 0.6dB Insertion Loss-Max, CASE 5 Directional Coupler, 500MHz Min, 2000MHz Max, 0.3dB Insertion Loss-Max, CASE 1 Directional Coupler, 1000MHz Min, 4000MHz Max, 0.3dB Insertion Loss-Max, CASE 2 Directional Coupler, 2000MHz Min, 8400MHz Max, 0.35dB Insertion Loss-Max, CASE 3 Directional Coupler, 4000MHz Min, 12400MHz Max, 0.5dB Insertion Loss-Max, CASE 4 Directional Coupler, 1000MHz Min, 4000MHz Max, 0.35dB Insertion Loss-Max, CASE 2 Directional Coupler, 4000MHz Min, 12400MHz Max, 0.5dB Insertion Loss-Max, CASE 4
package instruction CASE 5 CASE 4 CASE 5 CASE 1 CASE 2 CASE 3 CASE 4 CASE 2 CASE 4
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
Other features SMA SMA SMA SMA SMA SMA SMA SMA SMA
structure COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL
Maximum input power (CW) 46.99 dBm 46.99 dBm 46.99 dBm 46.99 dBm 46.99 dBm 46.99 dBm 46.99 dBm 46.99 dBm 46.99 dBm
Maximum insertion loss 0.7 dB 0.5 dB 0.6 dB 0.3 dB 0.3 dB 0.35 dB 0.5 dB 0.35 dB 0.5 dB
Maximum operating frequency 18000 MHz 12400 MHz 18000 MHz 2000 MHz 4000 MHz 8400 MHz 12400 MHz 4000 MHz 12400 MHz
Minimum operating frequency 6000 MHz 4000 MHz 6000 MHz 500 MHz 1000 MHz 2000 MHz 4000 MHz 1000 MHz 4000 MHz
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -54 °C -54 °C -54 °C -54 °C -54 °C -54 °C -54 °C -54 °C -54 °C
RF/Microwave Device Types DIRECTIONAL COUPLER DIRECTIONAL COUPLER DIRECTIONAL COUPLER DIRECTIONAL COUPLER DIRECTIONAL COUPLER DIRECTIONAL COUPLER DIRECTIONAL COUPLER DIRECTIONAL COUPLER DIRECTIONAL COUPLER
Maximum voltage standing wave ratio 1.4 1.3 1.4 1.15 1.2 1.25 1.3 1.2 1.3
Base Number Matches 1 1 1 1 1 1 1 1 1

Recommended Resources
