203X Series
3 dB Hybrid Couplers
Rev. V3
Features
•
•
•
•
•
90
o
Quadrature Phase
Frequency Range: 0.05 - 18 GHz
Temperature Range: -65
o
to 125
o
C
Meets MIL-E-5400 Environments
Non-crossover Versions Available

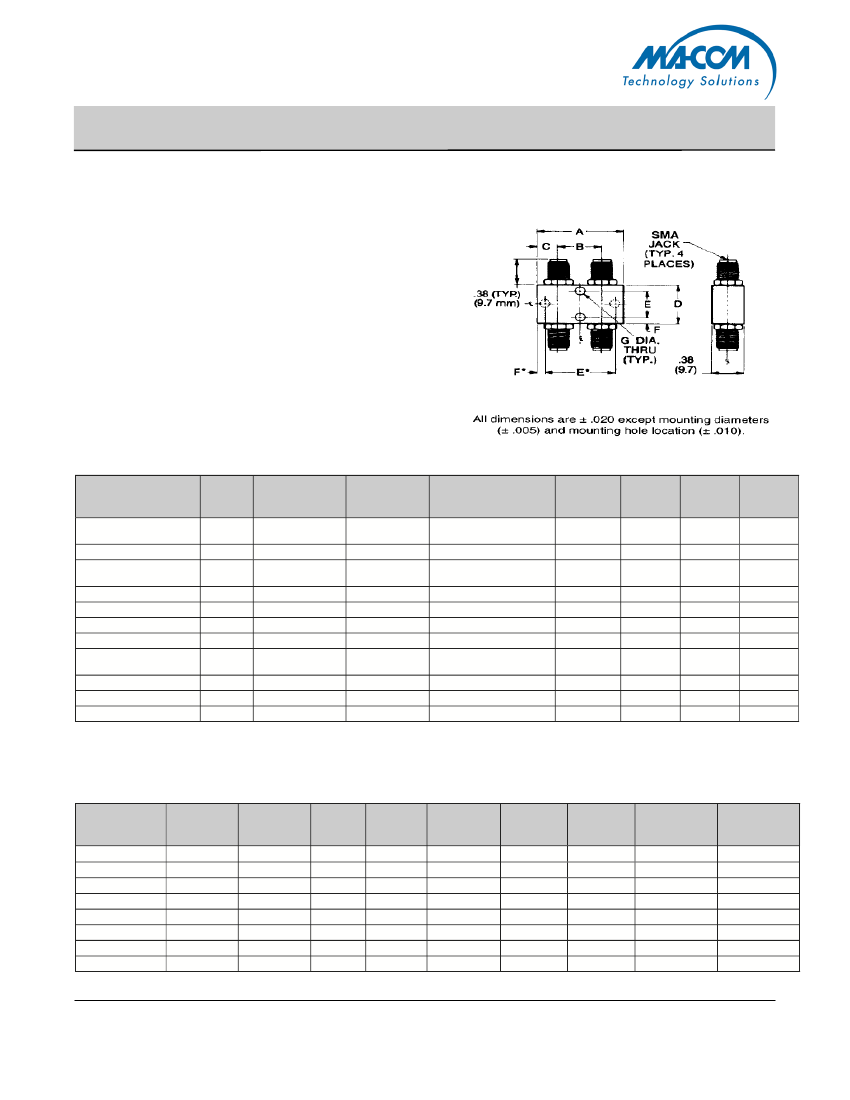

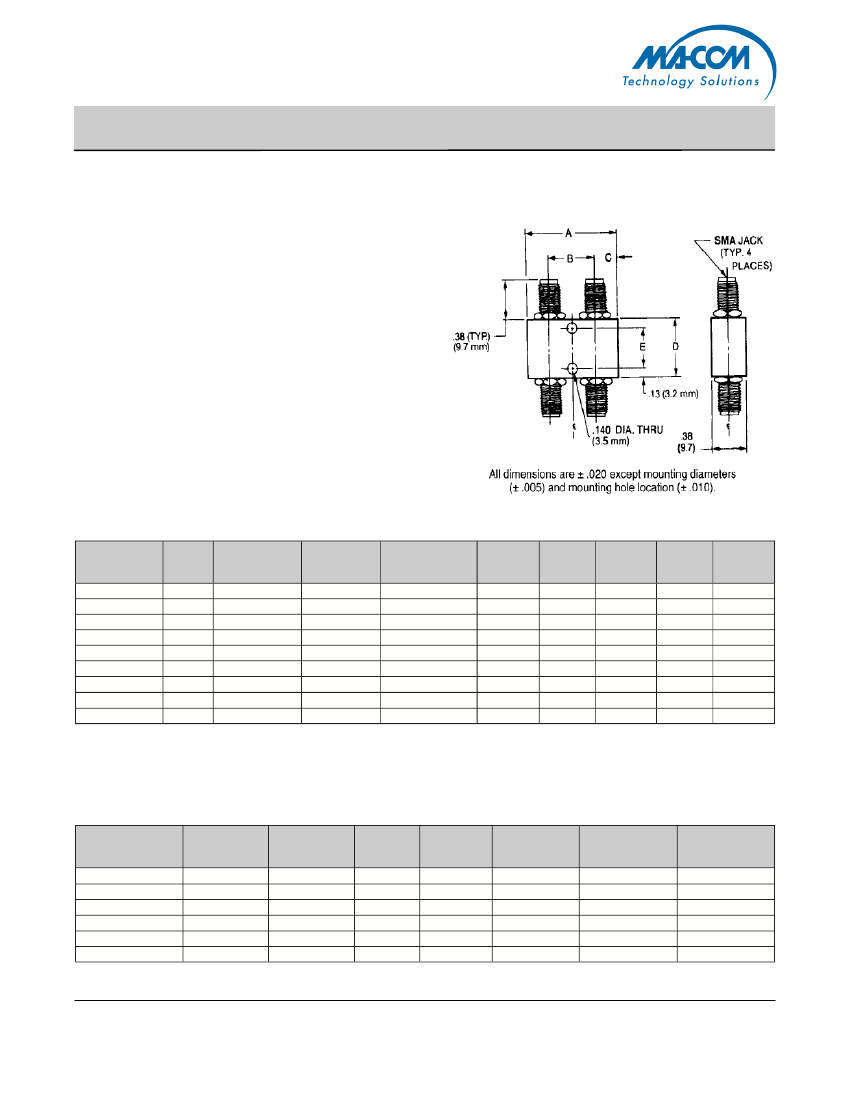

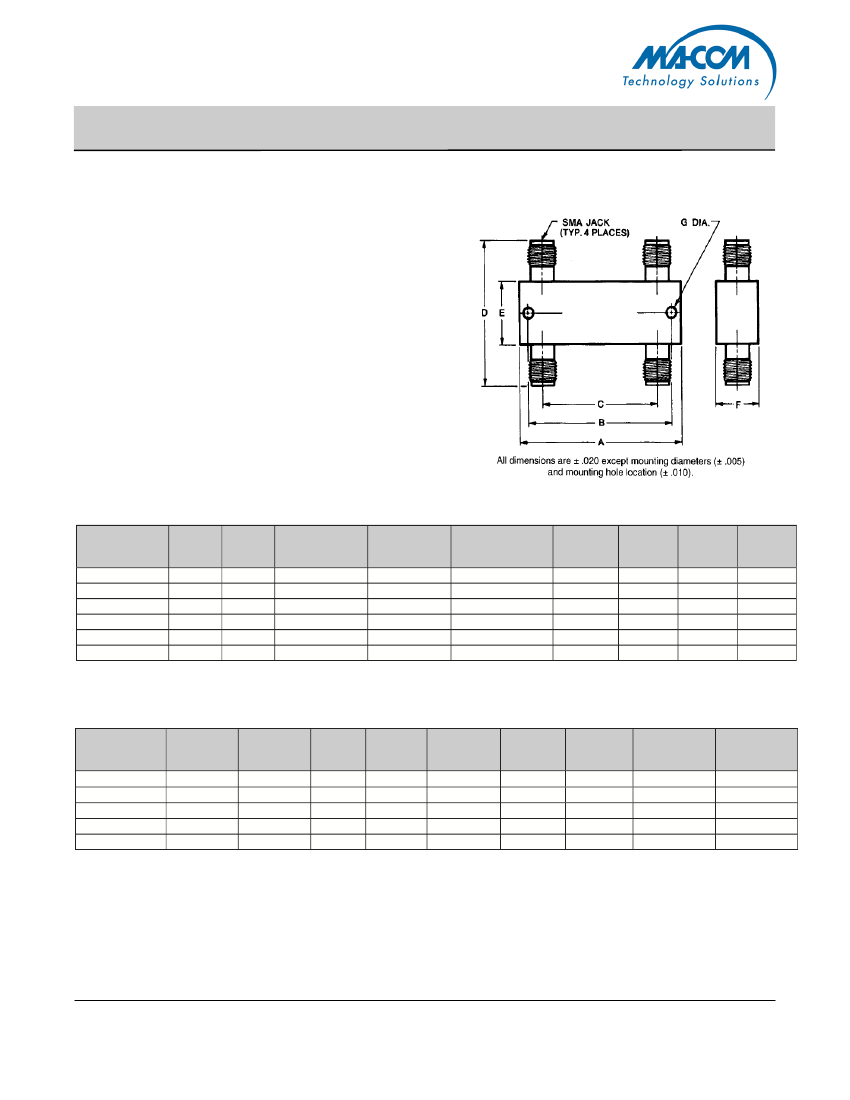

Outline Drawing
Description
3 dB quadrature mini-hybrids are the ultimate in
compact, rugged high stress environment
components. The crossover feature of the location
of both outputs on one side allows simplicity in
system or subsystem design. Multi-octave coverage
of the complete frequency spectrum, along with high
isolation performance, qualifies them as an asset to
any system.
90
o
Crossover Electrical Specifications
Part Number
Case
Style
3
4
5
5
5
6
7
8
10
5
11
Freq.
Range (GHz)
1.0 - 2.0
2.0 - 4.0
4.0 - 8.0
8.0 - 12.4
12.4 - 18.0
0.5 - 2.0
2.0 - 8.0
4.0 - 12.4
2.0 - 18.0
6.5 - 18.0
4.0 - 18.0
Amplitude
Balance (dB)
± 0.5
± 0.5
± 0.5
± 0.5
± 0.5
± 0.5
± 0.5
± 0.5
± 1.0
± 0.5
± 0.5
Insertion Loss Max
(dB)
0.20
0.25
0.30
0.50
0.50
0.60
0.50
0.60
0.60***
0.60
1.0
Isolation
Min. (dB)
22
22
20
18
18
24
20
20
20****
18
18
VSWR
Max
1.20
1.25
1.25
1.35
1.45
1.20
1.30
1.25
1.45
1.35
1.45
Power
Avg. (W)
30
30
30
30
30
30
30
50
50
30
100
Power
Pk. (kW)
3
3
3
3
3
3
3
3
3
3
5
2032-6344-00
2032-6345-00
2032-6347-00
2032-6348-00
2032-6349-00
2032-6350-00
2032-6352-00
2032-6354-00
2032-6371-00
2032-6374-00
2032-6375-00
*** Insertion loss is 1.2 dB from 6.0 to 12.4 GHz and 1.5 dB from 12.4 to 18.0 GHz.
**** Isolation is 15 dB from 12.4 to 18.0 GHz.
2032-6350-00 to 2032-6375-00 are multi-octave.
2032-6375-00 is high power.
90
o
Crossover Mechanical Specifications
Case Style
A
Inch (mm)
1.78 (45.2)
1.16 (29.4)
1.0 (25.4)
5.58 (141.7)
1.71 (43.4)
1.72 (43.7)
1.88 (47.6)
1.50 (38.1)
B
Inch (mm)
1.28 (32.5)
0.66 (16.7)
0.50 (12.7)
5.0 (127)
1.21 (30.7)
1.22 (31)
1.41 (35.9)
1.00 (25.4)
C
Inch
(mm)
0.25 (6.35)
0.25 (6.35)
0.25 (6.35)
0.29 (7.3)
0.25 (6.33)
0.25 (6.33)
0.23 (5.7)
0.25 (6.4)
D
Inch
(mm)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.70 (17.9)
0.50 (12.7)
1.07 (27.2)
1.3 (33)
1.10 (28.0)
E
Inch (mm)
0.31 (7.9)
0.31 (7.9)
0.31 (7.9)
5.42 (137.7)
0.31 (7.9)
0.58 (14.7)
1.06 (26.9)
0.90 (23.0)
F
Inch
(mm)
0.09 (2.4)
0.09 (2.4)
0.09 (2.4)
0.08 (2.0)
0.09 (2.4)
0.57 (14.5)
0.12 (3.1)
0.10 (2.5)
G
Inch
(mm)
0.104 (2.6)
0.104 (2.6)
0.104 (2.6)
0.093 (2.4)
0.104 (2.6)
0.104 (2.6)
0.14 (3.6)
0.104 (2.6)
Weight
oz
0.84
0.65
0.60
2.35
0.82
1.40
1.76
1.41
Weight
g
24
19
17
67
23
40
50
40
3
4
5
6
7
8
10
11
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
203X Series
3 dB Hybrid Couplers
Rev. V3
Features
•
•
•
•
•
•
Air Dielectric
Non-crossover Design
90
o
Quadrature Phase
Frequency Range: 1.0 - 18 GHz
Temperature Range: -50
o
to +110
o
C
Meets MIL-E-5400 Environments and
MIL-E-16400 Environments
•
MIL-C-15370/8 Equivalent
Outline Drawing
Description
These 3dB coaxial hybrids are ultra-compact. A
signal applied into any terminal appears at both
outputs with one-half the amplitude and shifted 90
degrees out of phase. The units mount four SMA
jack, low VSWR connectors. These couplers may
be used in mixers, duplexers and other applications
requiring equal power division.
90
o
Non-Crossover Electrical Specifications
Part Number
Model
No.
20153-3
20154-3
201545-3
20155-3
20156-3
20157-3
Case
Style
1
2
3
4
5
5
Freq.
Range (GHz)
1.0 - 2.0
2.0 - 4.0
2.6 - 5.2
4.0 - 8.0
8.0 - 12.4
12.4 - 18.0
Amplitude
Balance (dB)
± 0.4
± 0.5
± 0.5
± 0.5
± 0.5
± 0.5
Insertion
Loss Max (dB)
0.20
0.20
0.20
0.30
0.35
0.35
Isolation
Min. (dB)
20
18
18
18
15
15
VSWR
Max
1.25
1.25
1.25
1.25
1.30
1.35
Power
Avg. (W)
50
50
50
50
50
50
Power
Pk. (kW)
3
3
3
3
3
5
2035-6364-00
2035-6365-00
2035-6366-00
2035-6367-00
2035-6368-00
2035-6369-00
90
o
Non-Crossover Mechanical Specifications
Case Style
A
Inch (mm)
2.55 (64.8)
1.69 (42.7)
1.41 (35.6)
1.13 (28.7)
1.08 (27.4)
B
Inch (mm)
2.39 (60.8)
1.52 (38.7)
1.24 (31.5)
0.97 (24.7)
0.92 (23.4)
C
Inch
(mm)
1.97 (50.1)
1.11 (28.2)
0.82 (20.8)
0.55 (14)
0.50 (12.7)
D
Inch
(mm)
1.16 (29.5)
1.16 (29.5)
1.16 (29.5)
1.16 (29.5)
1.28 (32.5)
E
Inch (mm)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.63 (15.9)
F
Inch
(mm)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
G
Inch
(mm)
0.093 (2.4)
0.093 (2.4)
0.093 (2.4)
0.093 (2.4)
0.093 (2.4)
Weight
oz
1.80
1.10
0.99
0.89
0.93
Weight
g
52
32
28
26
27
1
2
3
4
5
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
203X Series
3 dB Hybrid Couplers
Rev. V3
Features
•
•
•
•
•
•
•
Crossover Design
0
o
or 180
o
Phase Difference
High Isolation
Low VSWR
Multi-Octave Frequency Range
Temperature Range: -65
o
to +125
o
C
Meets MIL-E-5400 and MIL-E-16400
Environments
Outline Drawing
Description
These 3 dB 180
o
mini-hybrids are highly reliable
rugged stripline-constructed units that can be used
either to divide or combine R.F. power. A signal
incident at the sum (Σ) port will yield in-phase
amplitude balanced signals at the output ports.
Conversely, a signal applied to the difference (Δ)
port will yield amplitude balanced and 180
o
out of
phase signals at the output ports.
180
o
Crossover Electrical Specifications
Part Number
Case
Style
1
2
3
4
4
7
7
6
7
Freq.
Range (GHz)
0.5 - 1.0
1.0 - 2.0
2.0 - 4.0
2.6 - 5.2
4.0 - 8.0
8.0 - 12.4
12.4 - 18.0
4.0 - 12.4
7.0 - 18.0
Amplitude
Balance (dB)
± 0.5
± 0.5
± 0.5
± 0.5
± 0.5
± 0.5
± 0.6
± 0.6
± 0.6
Insertion
Loss Max (dB)
0.40
0.50
0.70
0.70
0.70
0.80
1.20
1.00
1.2
Isolation
Min. (dB)
25
25
22
20
20
17
12
17
14
VSWR
Max
1.30
1.35
1.35
1.35
1.35
1.45
1.70
1.50
1.70
Phase
Power
Balance Avg. (W)
(Degrees)
±4
±4
±5
±5
±6
±6
±6
±8
±8
30
30
30
30
30
30
30
30
20
Power
Pk. (kW)
3
3
3
3
3
3
3
3
2
2031-6330-00
2031-6331-00
2031-6332-00
2031-6333-00
2031-6334-00
2031-6335-00
2031-6336-00
2031-6338-00
2031-6339-00
2031-6338-00 and 2031-6339-00 are multi-octave
180
o
Crossover Mechanical Specifications
Case Style
A
Inch (mm)
3.25 (82.6)
2.0 (50.8)
1.44 (36.5)
1.25 (31.8)
1.5 (38.1)
1.25 (31.8)
B
Inch (mm)
2.5 (63.5)
1.25 (31.8)
0.69 (17.5)
0.50 (12.7)
0.75 (19.1)
0.50 (12.7)
C
Inch (mm)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
D
Inch (mm)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.0 (25.4)
1.0 (25.4)
E
Inch (mm)
1.0 (25.4)
1.0 (25.4)
1.0 (25.4)
1.0 (25.4)
0.75 (19.1)
0.75 (19.1)
Weight
oz
2.8
2.0
1.5
1.5
1.2
1.1
Weight
g
70
47
38
38
34
31
1
2
3
4
6
7
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
