21066-AA datasheet, PDF - EEWORLD Datasheet

21066-AA: DescriptionRISC Microprocessor, 64-Bit, 166.67MHz, CMOS, CPGA287; CategoryThe embedded processor and controller Microcontrollers and processors; File Size352KB，16 Pages; ManufacturerDigital Equipment Corp

Download Datasheet Parametric View All

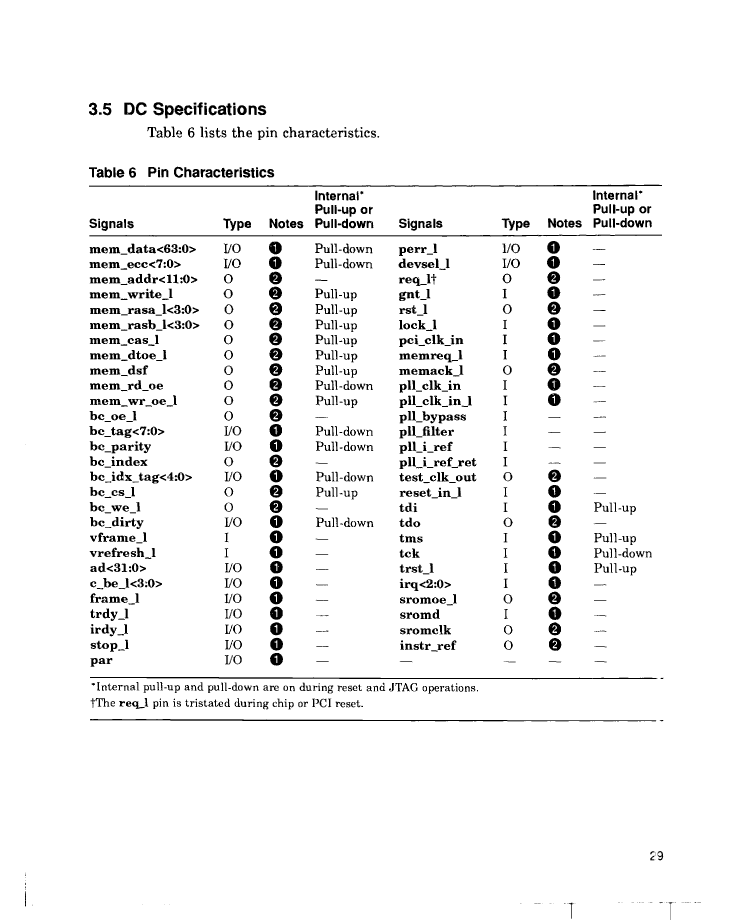

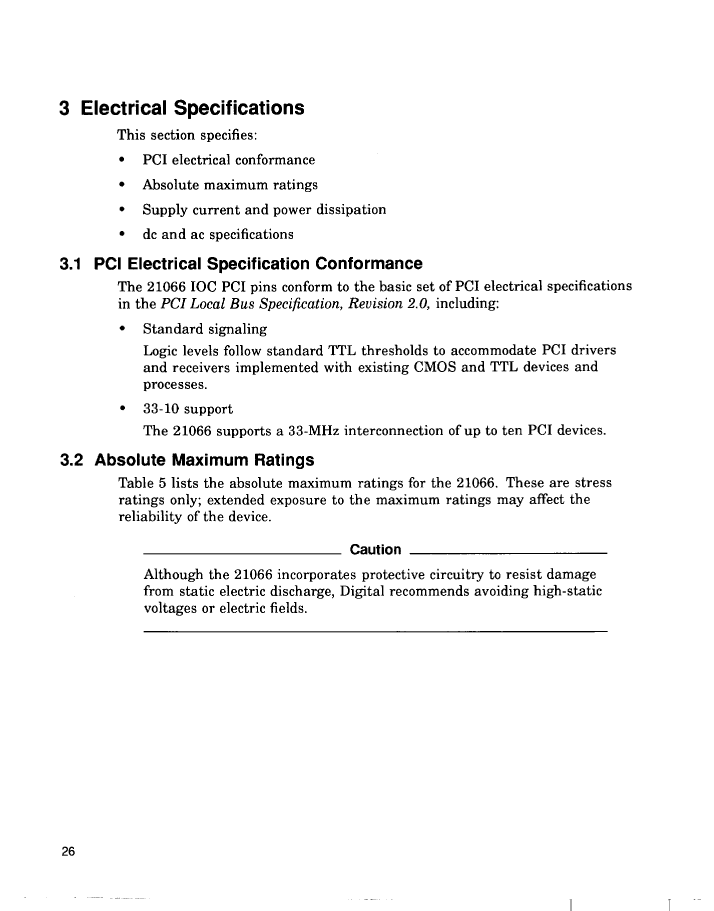

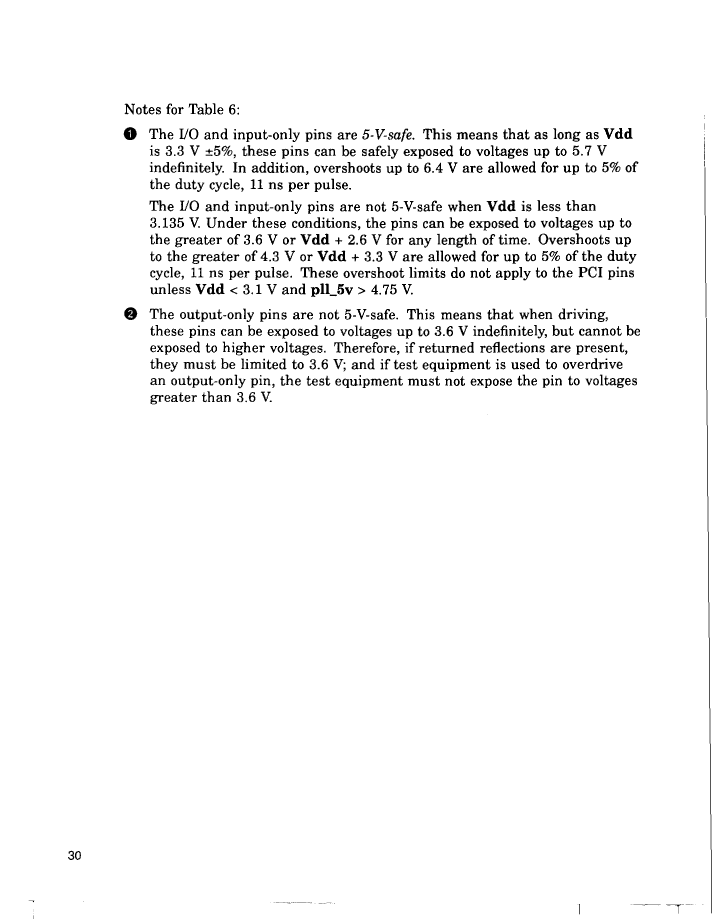

21066-AA Overview

RISC Microprocessor, 64-Bit, 166.67MHz, CMOS, CPGA287

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	PGA, HPGA287,22X22
Reach Compliance Code	unknown
ECCN code	3A001.A.3
Address bus width	32
bit size	64
boundary scan	YES
maximum clock frequency	166.67 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	NO
JESD-30 code	S-CPGA-P287
JESD-609 code	e0
low power mode	NO
Number of DMA channels
Number of external interrupt devices	3
Number of serial I/Os
Number of terminals	287
On-chip data RAM width

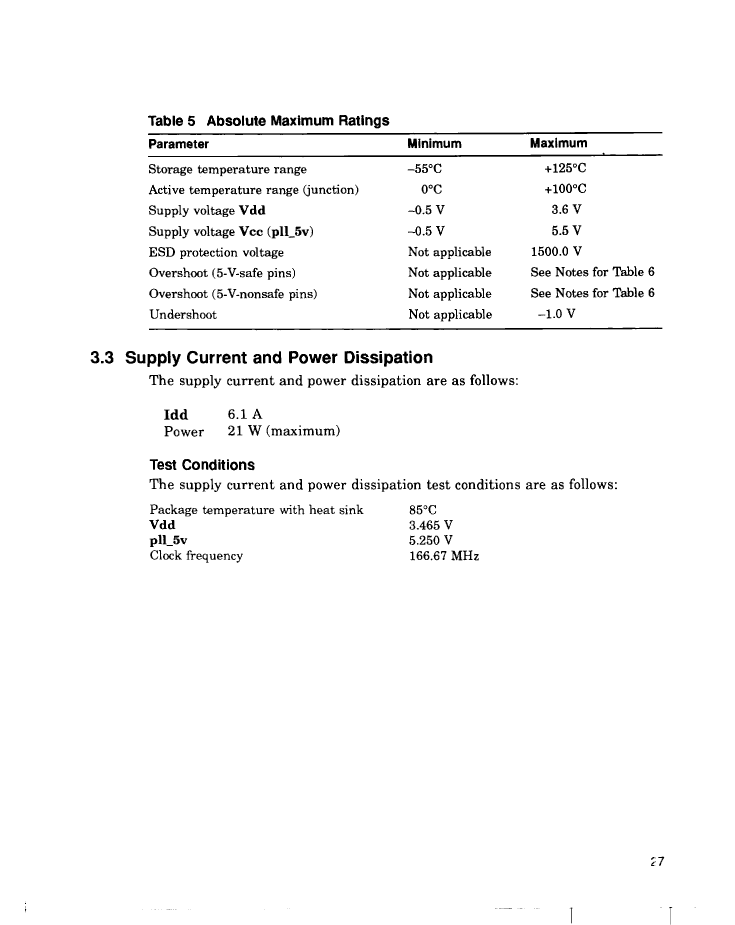

Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	HPGA287,22X22
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

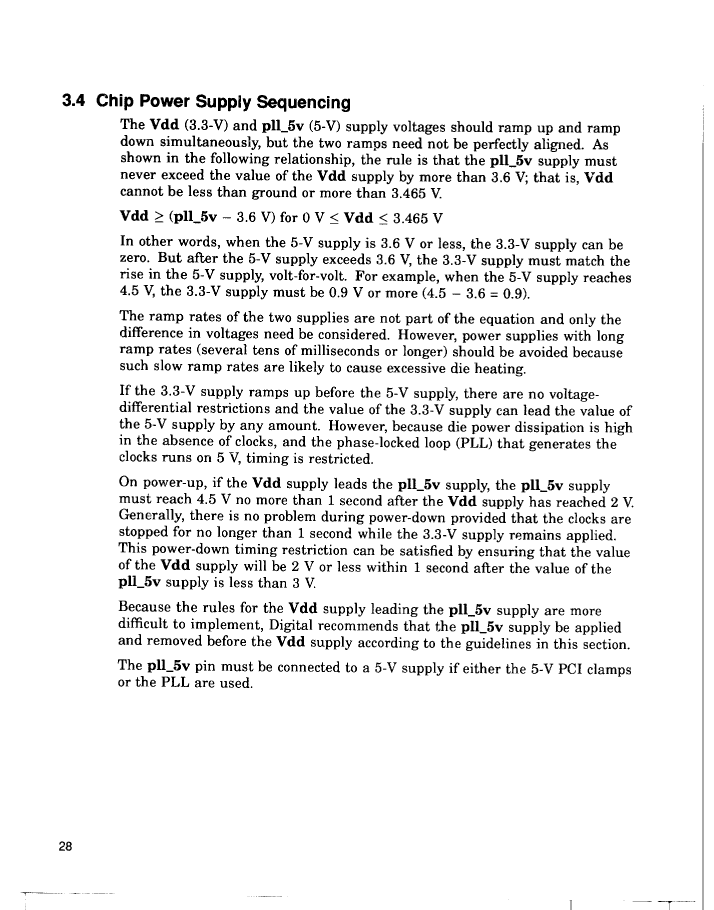

power supply	3.3 V
Certification status	Not Qualified
RAM (number of words)	0
speed	166.67 MHz
Maximum slew rate	6100 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1
