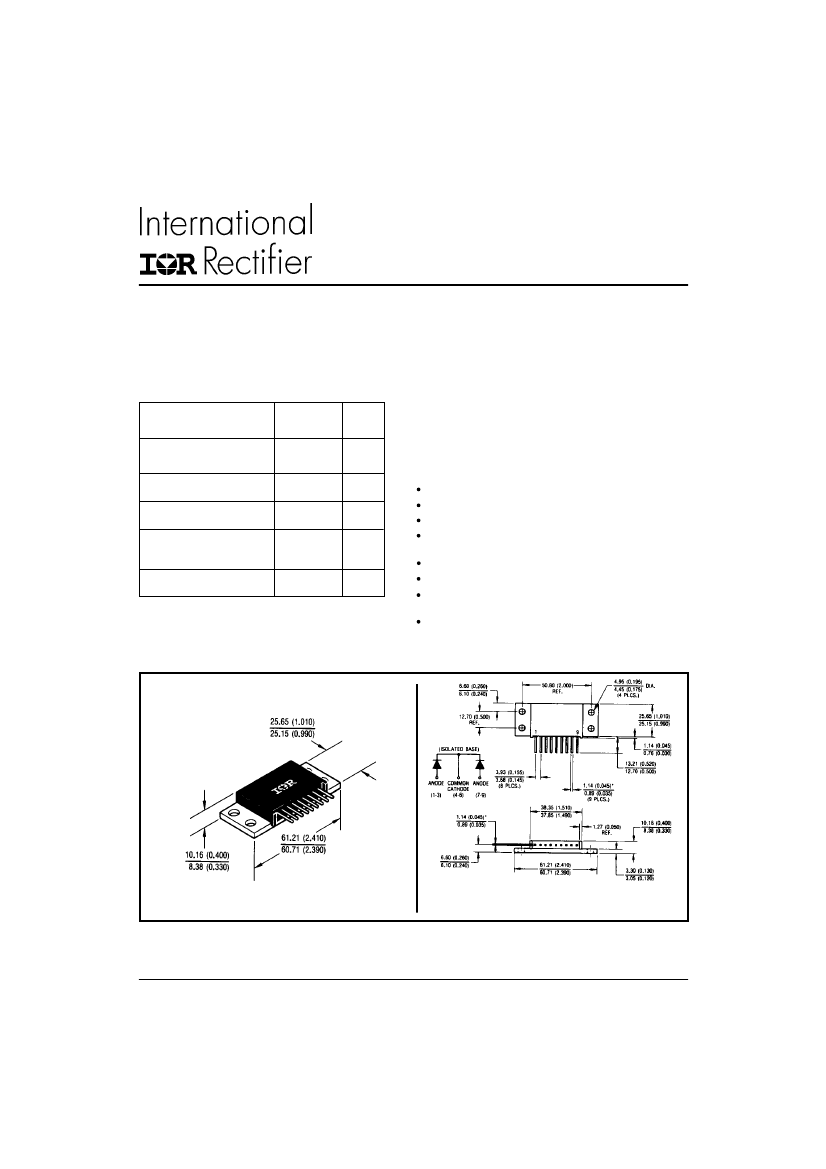

Preliminary Data Sheet PD-20550 rev. A 04/01
322CNQ030
SCHOTTKY RECTIFIER
300 Amp
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 150 Apk, T
J
= 125°C
(per leg)
range
Description/Features
The 322CNQ030 isolated center tap Schottky rectifier module
series has been optimized for low reverse leakage at high
temperature. The proprietary barrier technology allows for
reliable operation up to 150° C junction temperature. Typical
applications are in switching power supplies, converters, free-
wheeling diodes, and reverse battery protection.
150 °C T
J
operation
High Surge Capability
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Low profile, high current package
322CNQ030 Units
300
30
10,000
0.56
A
V
A
V
- 55 to 150
°C
CASE STYLE AND DIMENSIONS
* PRE-SOLDER CHIP DIMENSIONS
Outline D-60 (Modified JEDEC TO-249AA)
Dimensions in millimeters and inches
www.irf.com
1
322CNQ030
Preliminary Data Sheet PD-20550 rev. A 04/01
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
322CNQ030
30
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
(Per Leg)
I
FSM
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg)
E
AS
I
AR
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
322CNQ Units
300
150
10,000
1500
270
60
A
A
A
mJ
A
Conditions
50% duty cycle @ T
C
= 87 °C, rectangular wave form
5µs Sine or 3µs Rect. pulse
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated V
applied
RRM
T
J
= 25 °C, I
AS
= 1 Amps, L = 30 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg)
322CNQ Units
0.56
0.70
0.49
0.68
10
650
5500
8.0
10000
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 150A
@ 300A
@ 150A
@ 300A
Conditions
T
J
= 25 °C
T
J
= 125 °C
I
RM
C
T
L
S
Max. Reverse Leakage Current
(Per Leg)
Max. Junction Capacitance (Per Leg)
Typical Series Inductance
(Per Leg)
T
J
= 25 °C
V
R
= rated V
R
T
J
= 125 °C
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25°C
Measured from terminal hole to terminal hole
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
(1) Pulse Width < 300µs, Duty Cycle <2%
322CNQ Units
-55 to 150
-55 to 150
0.50
0.25
0.10
58 (2.0)
Min.
Max.
40 (35)
58 (50)
°C
°C
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case (Per Leg)
R
thJC
Max. Thermal Resistance Junction
to Case (Per Package)
R
thCS
Typical Thermal Resistance, Case
to Heatsink
wt
T
Approximate Weight
Mounting Torque
Case Style
°C/W DC operation
°C/W DC operation
°C/W Mounting surface , smooth and greased
g (oz.)
Kg-cm
(Ibf-in)
JEDEC
TO - 249AA
2
www.irf.com
322CNQ030
Preliminary Data Sheet PD-20550 rev. A 04/01
Data and specifications subject to change without notice.
This product has been designed and qualified for Industrial Level.
Qualification Standards can be found on IR's Web site.
