LH28F320S3 32M
(4M × 8/2M × 16)
Smart 3 Flash Memory
FEATURES
• Smart 3 technology
– 2.7 V or 3.3 V V
CC
– 2.7 V, 3.3 V or 5 V V
PP
• Common flash interface (CFI)
– Universal and upgradable interface
• Scalable command set (SCS)
• High speed write performance
– 32 Bytes × 2 plane page buffer
– 2.7 µs byte write transfer rate
• High speed read performance
– 110/140 ns (3.3 V ±0.3 V)
– 130/160 ns (2.7 V – 3.6 V)
• Enhanced automated suspend options
– Write suspend to read
– Block erase suspend to write
– Block erase suspend to read
• Industry-standard packaging
– 56-pin SSOP
• Chip size packaging
– 64-ball CSP
• SRAM-compatible write interface
• User-configurable × 8 or × 16 operation
• High-density symmetrically-blocked architecture
– Sixty-four 64K erasable blocks
• Enhanced data protection features
– Absolute protection with V
PP
= GND
– Flexible block locking
– Erase/write lockout during power transitions
• Extended cycling capability
– 100,000 block erase cycles
– 6.4 million block erase cycles/chip
• Low Power management
– Deep power-down mode
– Automatic power savings mode
– Decreases I
CC
in static mode
• Automated write and erase
– Command user interface
– Status register
• ETOX™ V nonvolatile flash technology
• Not designed or rated as radiation hardened
This Product Information is from LH28F320S3 Preliminary Product Preview, Rev. 1.1
DESCRIPTION
SHARP’s LH28F320S3 Flash memory with Smart 3 technology is a
high-density, low-cost, nonvolatile, read/write storage solution for a
wide range of applications. Its symmetrically-blocked architecture,
flexible voltage and extended cycling provide for highly flexible
component suitable for resident flash arrays, SIMMs and memory
cards. Its enhanced suspend capabilities provide for an ideal solu-
tion for code and data storage applications. For secure code storage
applications, such as networking, where code is either directly exe-
cuted out of flash or downloaded to DRAM, the LH28F320S3 offers
three levels of protection: absolute protection with V
PP
at GND, selec-
tive hardware block locking, or flexible software block locking. These
alternatives give designers ultimate control of their code security needs.

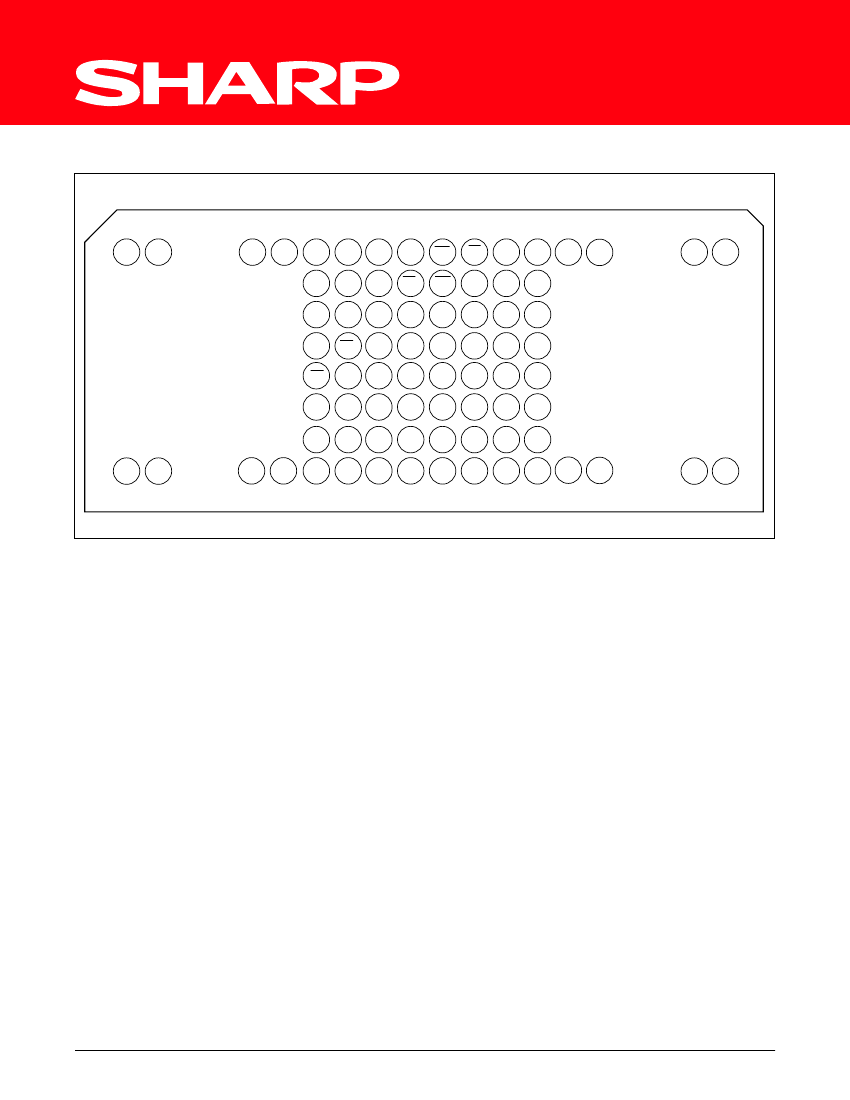

56-PIN SSOP PINOUT
56-PIN SSOP
CE
0
A
12
A
13
A
14
A
15
NC
CE
1
A
21
A
20
A
19
A
18
A
17
A
16
V
CC
GND
DQ
6
DQ
14
DQ
7
DQ
15
STS
OE
WE
WP
DQ
13
DQ
5
DQ
12
DQ
4
V
CC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
TOP VIEW
V
PP
RP
A
11
A
10
A
9
A
1
A
2
A
3
A
4
A
5
A
6
A
7
GND
A
8
V
CC
DQ
9
DQ
1
DQ
8
DQ
0
A
0
BYTE
NC
NC
DQ
2
DQ
10
DQ
3
DQ
11
GND
320S3-1
