LH28F320S3NS-L11 datasheet, PDF

Datasheet> All Categories > storage> storage> LH28F320S3NS-L11

LH28F320S3NS-L11: DescriptionFlash, 2MX16, 140ns, PDSO56, 0.600 INCH, PLASTIC, SSOP-56; Categorystorage storage; File Size670KB，62 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH28F320S3NS-L11 Overview

Flash, 2MX16, 140ns, PDSO56, 0.600 INCH, PLASTIC, SSOP-56

LH28F320S3NS-L11 Parametric

Parameter Name	Attribute value
package instruction	0.600 INCH, PLASTIC, SSOP-56
Reach Compliance Code	unknown
Maximum access time	140 ns
Other features	ACCESS TIME 110 NS AT VCC 3.3+/-0.3V
Spare memory width	8
JESD-30 code	R-PDSO-G56
length	23.7 mm
memory density	33554432 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	56
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX16
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL
Programming voltage	2.7 V
Certification status	Not Qualified
Maximum seat height	1.85 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
type	NOR TYPE
width	13.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

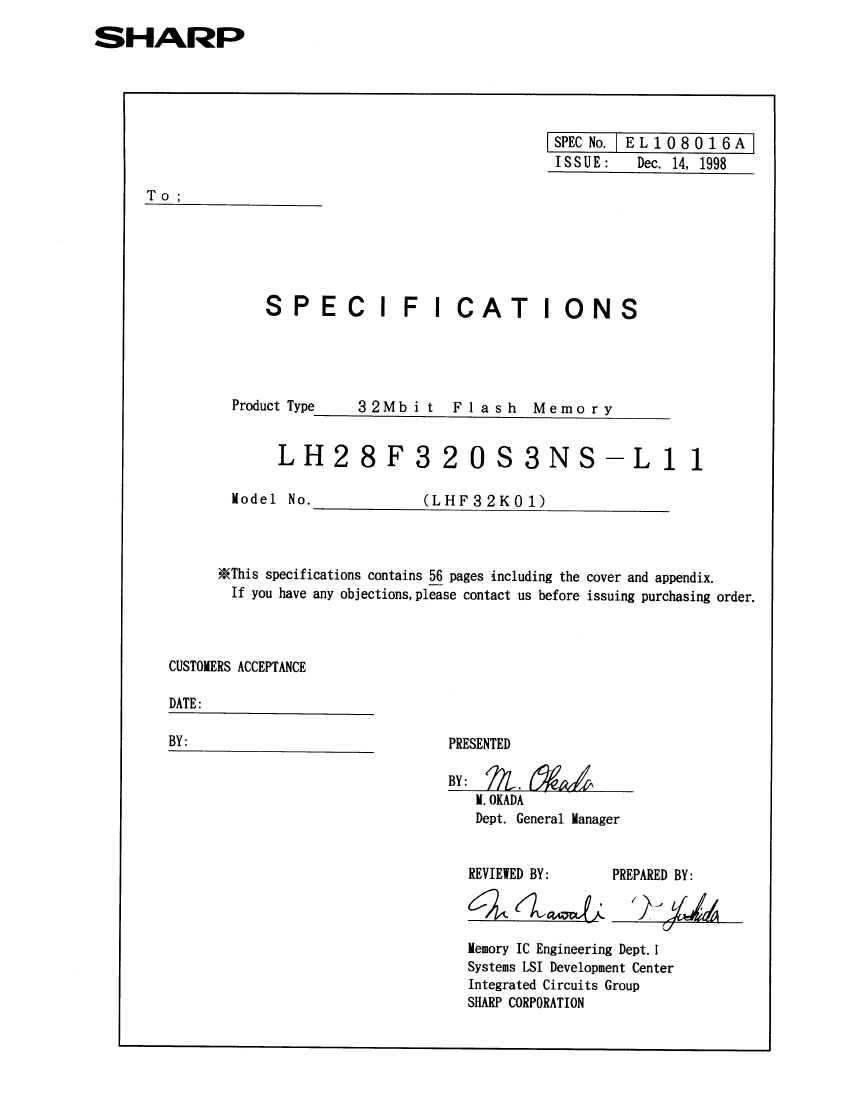

RODUCT

PECIFICATIONS

Integrated Circuits Group

LH28F320S3NS-L11

32M (4MB × 8 / 2MB × 16)

(Model No.: LHF32K01)

Flash Memory

Spec No.: EL108016A

Issue Date: December 14, 1998

sharp

LHF32K01

●Handle

this document carefully for it contains material protected by international copyright

law. Any reproduction, full or in part, of this material is prohibited without the express

written permission of the company.

●When

using the products covered herein, please observe the conditions written herein

and the precautions outlined in the following paragraphs. In no event shall the company

be liable for any damages resulting from failure to strictly adhere to these conditions and

precautions.

(1) The products covered herein are designed and manufactured for the following

application areas. When using the products covered herein for the equipment listed

in Paragraph (2), even for the following application areas, be sure to observe the

precautions given in Paragraph (2). Never use the products for the equipment listed

in Paragraph (3).

•Office

electronics

•Instrumentation

and measuring equipment

•Machine

tools

•Audiovisual

equipment

•Home

appliance

•Communication

equipment other than for trunk lines

(2) Those contemplating using the products covered herein for the following equipment

which demands high reliability, should first contact a sales representative of the

company and then accept responsibility for incorporating into the design fail-safe

operation, redundancy, and other appropriate measures for ensuring reliability and

safety of the equipment and the overall system.

•Control

and safety devices for airplanes, trains, automobiles, and other

transportation equipment

•Mainframe

computers

•Traffic

control systems

•Gas

leak detectors and automatic cutoff devices

•Rescue

and security equipment

•Other

safety devices and safety equipment, etc.

(3) Do not use the products covered herein for the following equipment which demands

extremely high performance in terms of functionality, reliability, or accuracy.

•Aerospace

equipment

•Communications

equipment for trunk lines

•Control

equipment for the nuclear power industry

•Medical

equipment related to life support, etc.

(4) Please direct all queries and comments regarding the interpretation of the above

three Paragraphs to a sales representative of the company.

●Please

direct all queries regarding the products covered herein to a sales representative

of the company.

Rev. 1.55

LH28F320S3NS-L11 Related Products

	LH28F320S3NS-L11
Description	Flash, 2MX16, 140ns, PDSO56, 0.600 INCH, PLASTIC, SSOP-56
package instruction	0.600 INCH, PLASTIC, SSOP-56
Reach Compliance Code	unknown
Maximum access time	140 ns
Other features	ACCESS TIME 110 NS AT VCC 3.3+/-0.3V
Spare memory width	8
JESD-30 code	R-PDSO-G56
length	23.7 mm
memory density	33554432 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	56
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
organize	2MX16
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL
Programming voltage	2.7 V
Certification status	Not Qualified
Maximum seat height	1.85 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
type	NOR TYPE
width	13.3 mm
Base Number Matches	1
