86096648813H85V1LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86096648813H85V1LF

86096648813H85V1LF: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size917KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86096648813H85V1LF Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE

86096648813H85V1LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

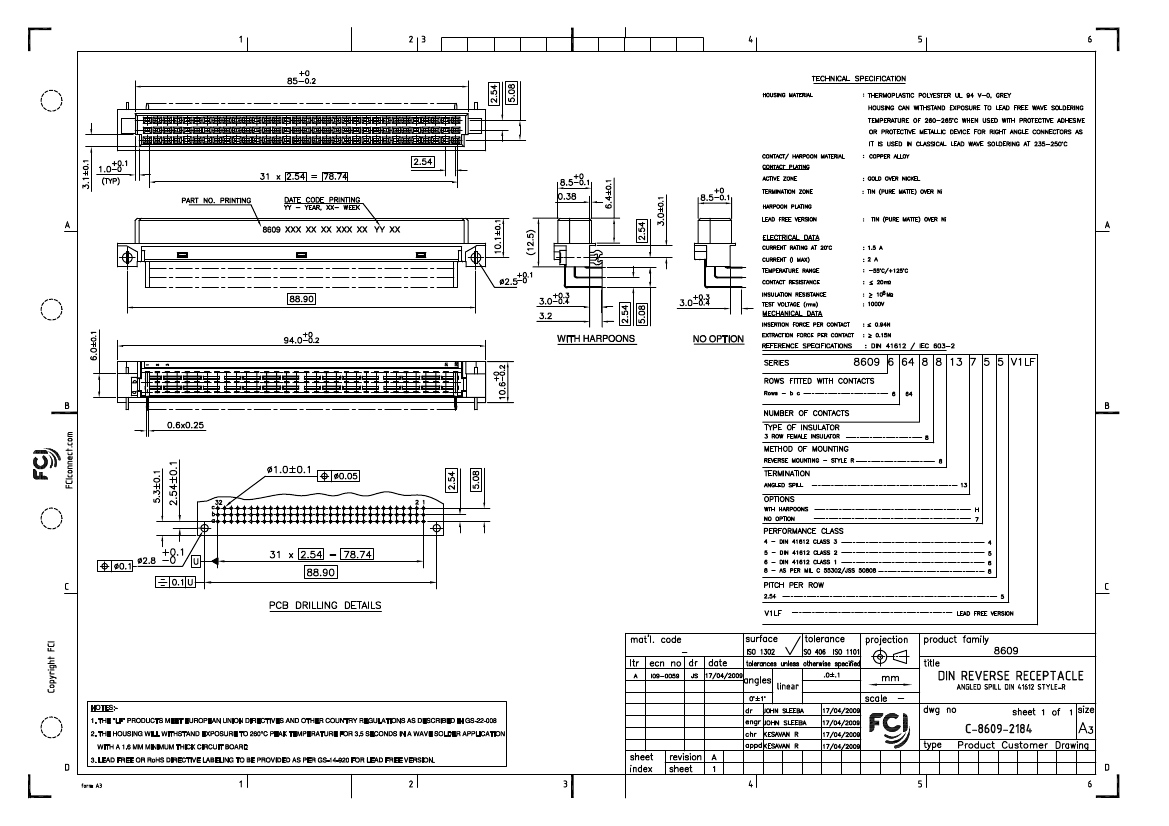

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: May 14, 2011
