Product Specification
PE4257
Product Description
The PE4257 is a high-isolation UltraCMOS™ Switch designed
for wireless applications, covering a broad frequency range
from near DC up to 3000 MHz. This single-supply SPDT
switch integrates a two-pin CMOS control interface. It also
provides low insertion loss with extremely low bias
requirements while operating on a single 3-volt supply. In a
typical wireless application, the PE4257 provides
unprecedented isolation and integration.
The PE4257 is manufactured on Peregrine’s UltraCMOS™
process, a patented variation of silicon-on-insulator (SOI)
technology on a sapphire substrate, offering the performance
of GaAs with the economy and integration of conventional
CMOS.
Figure 1. Functional Diagram
RFC
50
Ω
SPDT Absorptive UltraCMOS™
DC – 3.0 GHz RF Switch
Features
•
50
Ω
characteristic impedance
•
Integrated 50
Ω
0.25 watt terminations
•
High input IP3 > +55 dBm
•
High isolation 64 dB at 1000 MHz
•
Low insertion loss: typically 0.75 dB
at 1000 MHz and 0.95 dB at 2000 MHz
•
LV CMOS two-pin control
•
Single +3 volt supply operation
•
Low current consumption: 8
µA
Figure 2. Package Type
20-Lead 4x4 mm QFN
50Ω
ESD
RF1
ESD
ESD
RF2
50Ω
CMOS
Control
Driver
50Ω
CTRL CTRL2
Table 1. Electrical Specifications @ +25 °C, V
DD
= 3.0 V
(Z
S
= Z
L
= 50
Ω)
Parameter
Operating Frequency
1
Insertion Loss
1000 MHz
2000 MHz
3000 MHz
1000 MHz
2000 MHz
3000 MHz
1000 MHz
2000 MHz
3000 MHz
5 MHz - 1000 MHz
5 MHz - 1000 MHz
1000 MHz
50% CTRL to 10 / 90 RF
5 MHz - 1000 MHz
50
29
61
46
40
57
54
42
Condition
Minimum
DC
Typical
Maximum
3000
Units
MHz
dB
0.75
0.95
1.2
64
50
44
63
60
48
80
55
31
2
0.95
1.15
1.4
Isolation Input to Output
dB
Isolation Output to Output
Input IP2
Input IP3
Input 1dB Compression
2
Switching Time
Video Feedthrough
3
dB
dBm
dBm
dBm
µs
15
mV
pp
Notes: 1. Device linearity will begin to degrade below 5 MHz.
2. Note Absolute Maximum ratings in Table 3.
3. Measured with a 1 ns risetime, 0/3 V pulse and 500 MHz bandwidth
Document No. 70-0166-06
│
www.psemi.com
©2004-2009 Peregrine Semiconductor Corp. All rights reserved.
Page 1 of 7
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
PE4257
Product Specification
Figure 3. Pin Configuration (Top View)
18 VSS/GND
CTRL1
19 GND
CTRL2
VDD
Table 3. Absolute Maximum Ratings
Symbol
V
DD
V
I
P
RF
Parameter/Condition
Power supply voltage
Voltage on any DC input
RF power on RFC, RF1, RF2
On Port/ Terminated Port
Storage temperature
Operating temperature
ESD voltage
(Human Body Model)
Min
-0.3
-0.3
Max
4.0
V
DD
+ 0.3
33/24
Units
V
V
dBm
°C
°C
V
20
17
GND
GND
RF1
GND, RF1 Term.
GND
1
GND
2
3
4
5
16
15 GND
14 GND
13
RF2
T
ST
T
OP
V
ESD
-65
-40
1000
+150
+85
12 GND, RF2 Term.
11 GND
GND 10
GND
GND
GND
RFC
Exceeding absolute maximum ratings may cause
permanent damage. Operation should be restricted to
the limits in the Operating Ranges table. Operation
between operating range maximum and absolute
maximum for extended periods may reduce reliability.
6
7
8
9
4x4mm 20-Lead QFN
Table 4. Operating Ranges @ 25 °C
Parameter
Min
2.7
Typ
3.0
8
Max
3.3
20
Unit
V
µA
V
Table 2. Pin Descriptions
No.
1
2
3
1
4
5
6
7
8
1
V
DD
Power Supply
Name
GND
GND
RF1
GND
GND
GND
GND
RFC
GND
GND
GND
GND
RF2
GND
GND
CTRL2
CTRL1
VSS / GND
GND
VDD
GND
RF Ground
RF Ground
RF I/O
RF Ground
RF Ground
RF Ground
RF Ground
Description
I
DD
Power Supply Current
(V
DD
= 3V, V
CNTL
= 3V)
Control Voltage High
Control Voltage Low
0.70 V
DD
0
0.30 V
DD
V
Latch-Up Avoidance
Unlike conventional CMOS devices, UltraCMOS™
devices are immune to latch-up.
RF Common
RF Ground
RF Ground
RF Ground
RF Ground
RF I/O
RF Ground
RF Ground
Control 2
Control 1
Negative Supply Option
Digital Ground
Supply
RF Ground Pad
Electrostatic Discharge (ESD) Precautions
When handling this UltraCMOS™ device, observe the
same precautions that you would use with other ESD-
sensitive devices. Although this device contains
circuitry to protect it from damage due to ESD,
precautions should be taken to avoid exceeding the
rating specified.
9
10
11
12
13
1
14
15
16
2
Switching Frequency
The PE4257 has a maximum 25 kHz switching rate
when the internal negative voltage generator is used
(pin 18=GND). The rate at which the PE4257 can be
switched is only limited to the switching time if an
external -3 V supply is provided at (pin18=V
SS
).
17
2
18
3
19
20
Pad
Notes: 1. RF pins 3, 8, and 13 must be at 0 VDC. The RF pins do
not require DC blocking capacitors for proper operation if the
0 VDC requirement is met.
2. Pins 16 and 17 are the CMOS controls that set the four
operating states.
3. Connect pin 18 to GND to enable the negative voltage
generator. Connect pin 18 to V
SS
(-3 V) to bypass and
disable internal -3 V supply generator. See paragraph
“Switching Frequency.”
Table 5. Truth Table
CTRL1
Low
Low
High
High
CTRL2
Low
High
Low
High
RFC – RF1
OFF
OFF
ON
N/A
1
RFC – RF2
OFF
ON
OFF
N/A
1
Notes: 1. The operation of the PE4257 is not supported or
characterized in the C1=V
DD
and C2=V
DD
state.
Document No. 70-0166-06
│
UltraCMOS™ RFIC Solutions
©2004-2009 Peregrine Semiconductor Corp. All rights reserved.
Page 2 of 7
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
PE4257
Product Specification

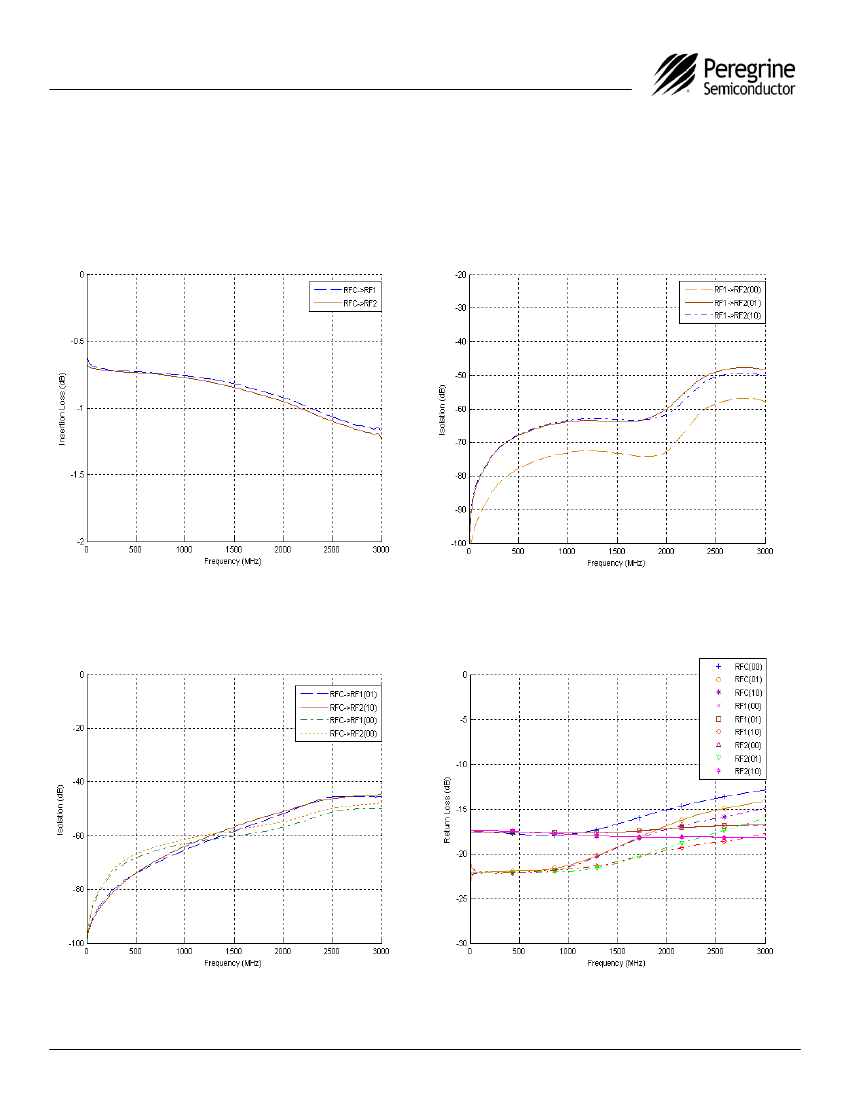

Typical Performance Data @ 25°C (Unless Otherwise Noted)
(50-ohm impedance)
Figure 4. Insertion Loss – Input - Output
Figure 5. RF1 to RF2 Isolation
Figure 6. Isolation – RFC to RF1/RF2
Figure 7. Return Loss
Document No. 70-0166-06
│
www.psemi.com
©2004-2009 Peregrine Semiconductor Corp. All rights reserved.
Page 3 of 7
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
PE4257
Product Specification
Evaluation Kit
The SPDT Switch Evaluation Kit board was designed to
ease customer evaluation of the PE4257 SPDT switch.
The RF common port is connected through a 50
Ω
transmission line to J2. Port 1 and Port 2 are
connected through 50
Ω
transmission lines to J1 and
J3. A through transmission line connects SMA
connectors J4 and J5. This transmission line can be
used to estimate the loss of the PCB over the
environmental conditions being evaluated.
The board is constructed of a four metal layer FR4
material with a total thickness of 0.031”. The
transmission lines were designed using a coplanar
waveguide with ground plane (28 mil core, 47.6 mil
width, 30mil gap).
Note the number of vias surrounding the device in the
layout shown in Figure 8. These vias are critical for
obtaining the specified isolation performance for the
device shown in this datasheet.
J6 provides a means for controlling DC and digital
inputs to the device. The provided jumpers short the
package pin to ground for logic low. When the jumper
is removed, the pin is pulled up to VDD for logic high.
When the jumper is in place, 3 µA of current will flow
through the 1 MΩ pull up resistor. This extra current
should not be attributed to the requirements of the
device.
Figure 8. Evaluation Board Layouts
Peregrine Specification 101/0151
Figure 9. Evaluation Board Schematic
Peregrine Specification 102/0198
J6
HEADER 7X2
1
3
5
7
9
11
13
C1
DNI
R1
1M
R2
1M
1
3
5
7
9
11
13
2
4
6
8
10
12
14
2
4
6
8
10
12
14
20
19
18
17
16
VDD
GND
1
J1
1
VSS/GND
C2
DNI
GND
GND
15
14
13
12
11
C3
DNI
C1
GND
GND
RF1
GND
GND
50 OHM T-Line
C2
2
3
4
5
50 OHM T-Line
1
J3
U1
PE4255/PE4257/PE42551
RF2
GND
GND
2
GND
GND
GND
6
7
8
9
J2
1
50 OHM T-Line
J4
10
GND
RFC
50 OHM T-Line
1
1
J5
2
2
©2004-2009 Peregrine Semiconductor Corp. All rights reserved.
Page 4 of 7
Document No. 70-0166-06
│
UltraCMOS™ RFIC Solutions
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
2
2
PE4257
Product Specification

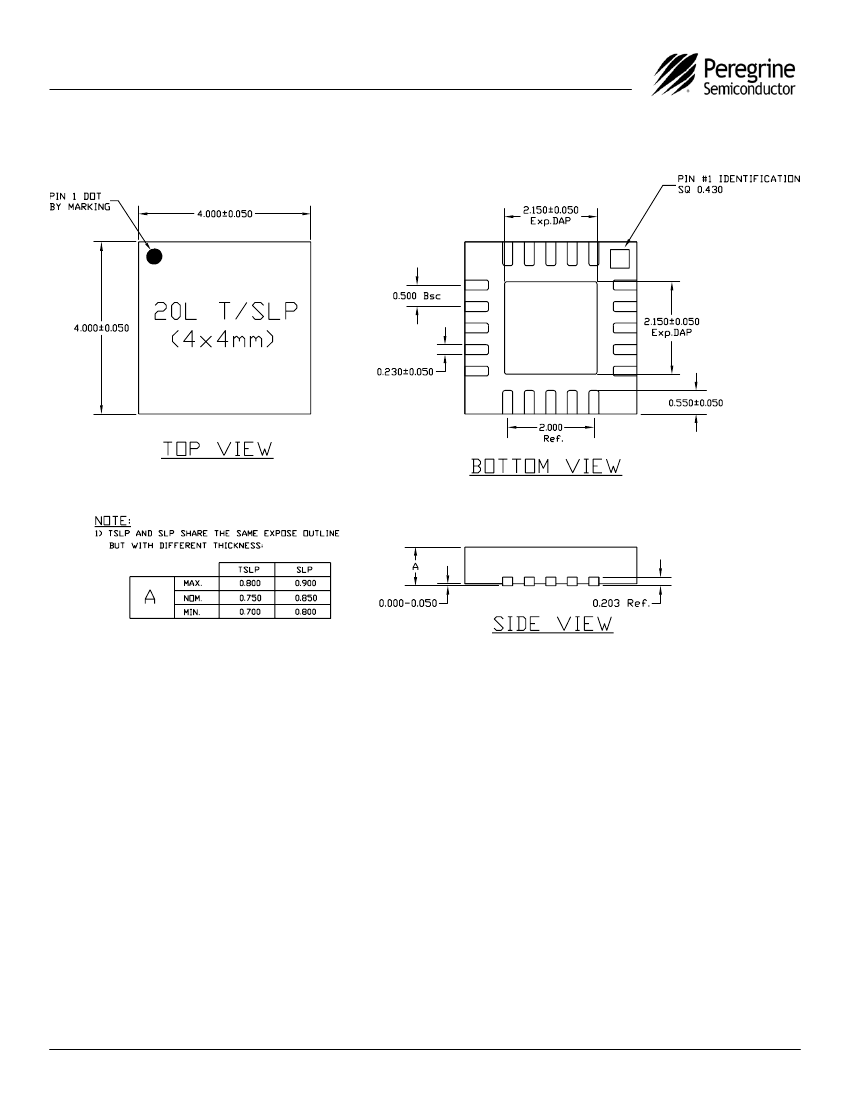

Figure 10. Package Drawing
20-Lead 4x4 QFN
Document No. 70-0166-06
│
www.psemi.com
©2004-2009 Peregrine Semiconductor Corp. All rights reserved.
Page 5 of 7
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
