Class J Fuse Blocks
600 Volt
SPECIFICATIONS
Voltage Ratings:
600 Volts
Ampere Ratings:
0 – 600 amperes
Approvals:
UL Listed: File No. E14721
CSA Certified: File No. LR73091
RECOMMENDED FUSES
JTD_ID/JTD (time-delay) and JLS (fast-acting) series fuses
For use with space-saving, high interrupting capacity, very
current-limiting 600 volt Class J fuses.
Class J 600V
Amp No. of
Rating Poles
1
2
3
Adder
1
2
3
1
3
1
3
1
3
1
3
Catalog
Number
LJ60030-1
LJ60030-2
LJ60030-3
LJ60030-A
LJ60060-1
LJ60060-2
LJ60060-3
LJ60100-1
LJ60100-3
LJ60200-1
LJ60200-3

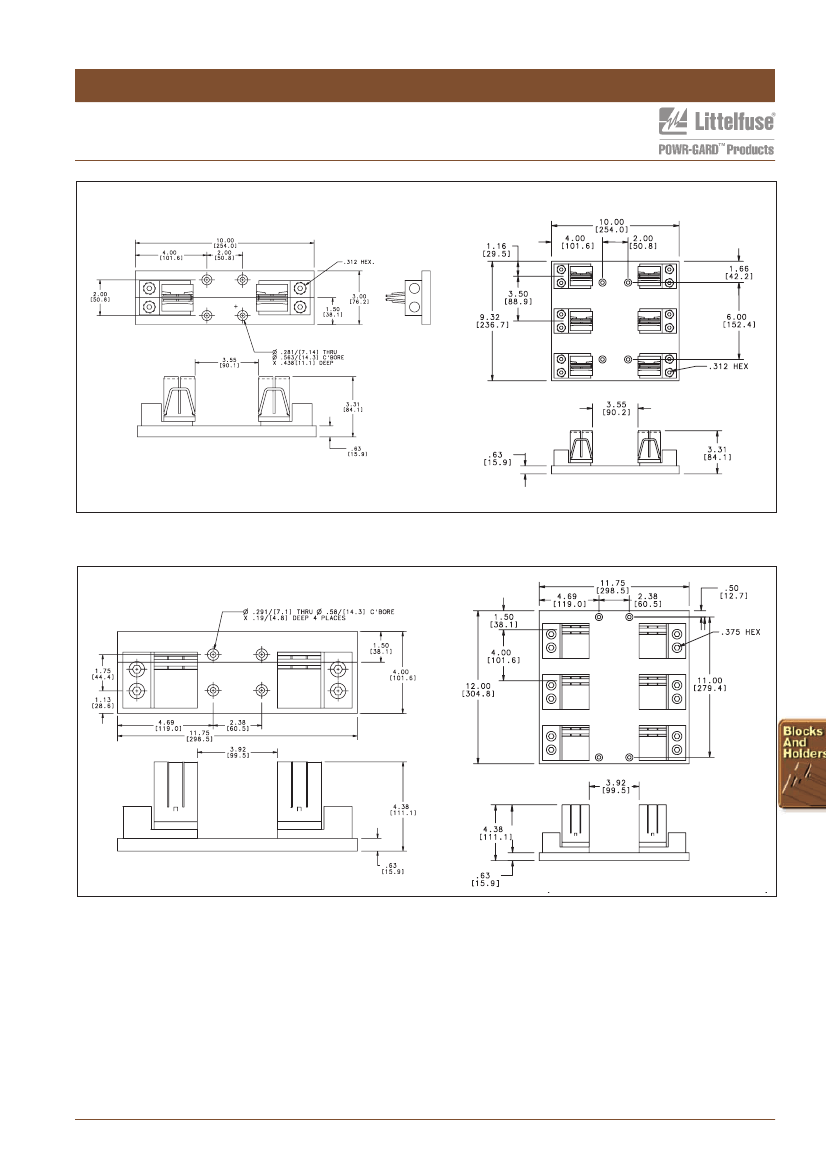

LJ60400-1
LJ60400-3
LJ60600-1
LJ60600-3
Connector Type
(Add suffix shown)
Screw Pressure
Plate
Box
Lug
Maximum
Wire Size
30
S (R)
S (R)
S (R)
S (R)
P (R)
P (R)
P (R)
P (R)
60
100
200
400

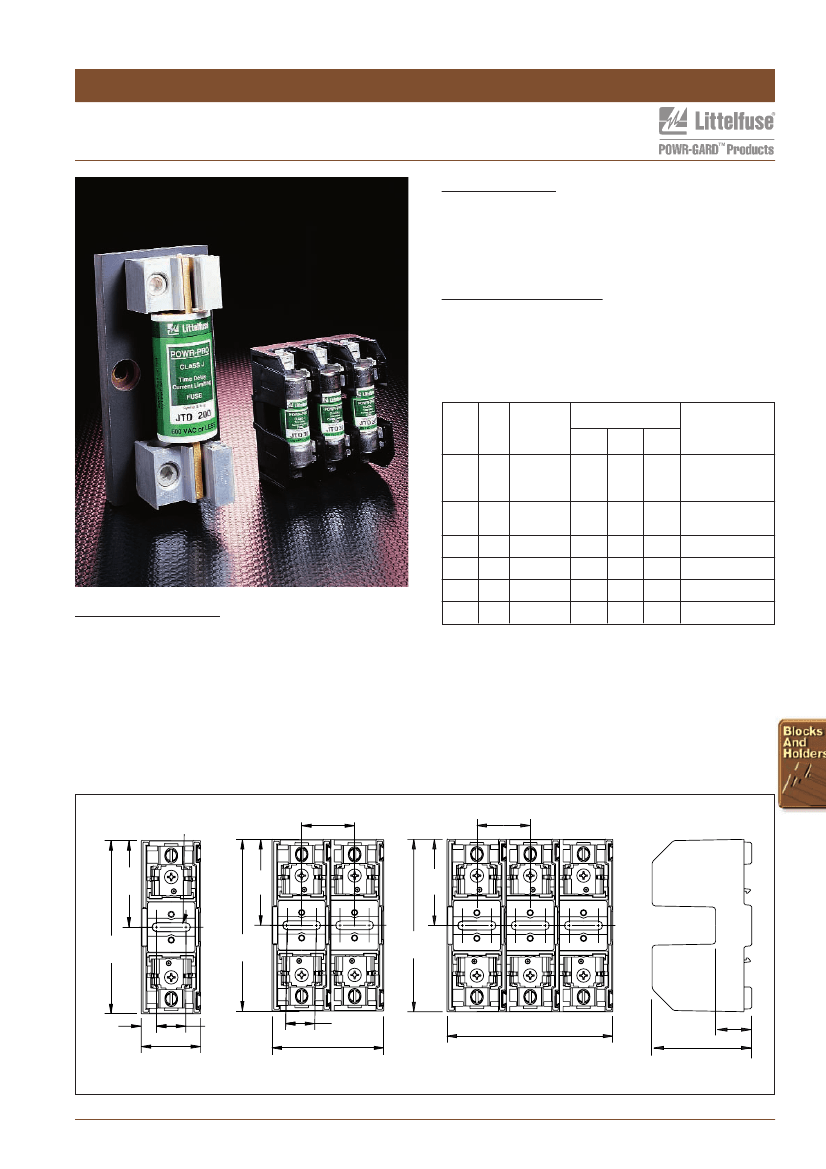

FEATURES/BENEFITS
I
I
600
Phenolic blocks have side barriers for isolation.
Spring reinforced fuse clips are standard on 100A and
larger blocks. Reinforcing springs are optional on 30 and 60
amp blocks.
Space saving 30A design —
Up to 45% smaller than
existing 30 A fuse blocks. 30A interlocking adder block
available to create any number of poles (consult factory
for availability). Integral DIN rail mount allows this block
to be securely fastened to 35 mm “hat” type DIN rails with-
out the use of tools.

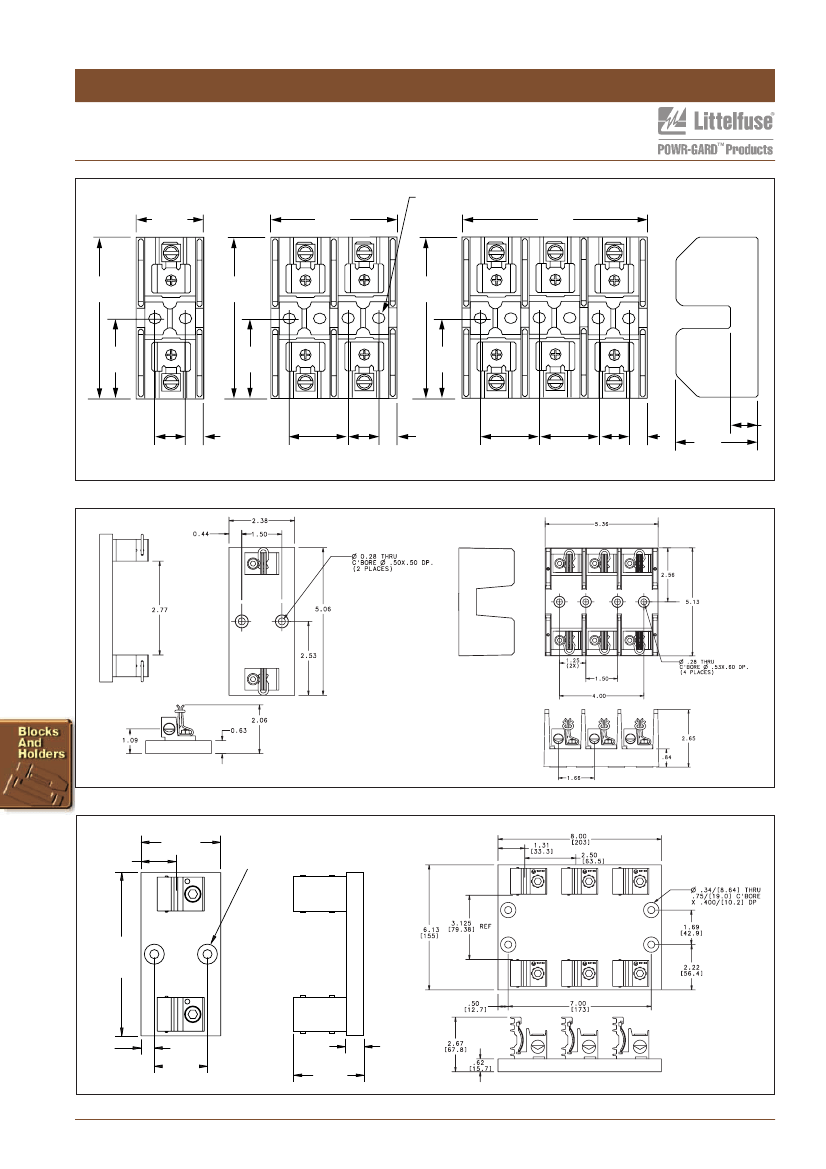

LJ60030
.216[5.5] x .79[20.0] SLOT
MOUNTING HOLE
C (R)
C (R)
S & P = #10 CU
C (R)
C = #6 CU
C (R)
C (R)
C (R)
C = #2 CU-AL
C (R)
CR
#2/0 CU-AL
CR
C
250 MCM CU-AL
C
CR
350 MCM CU-AL
CR
CR
(2) 500 MCM CU-AL
CR
Note: Reinforcing springs standard on all Class J fuse blocks
rated 100A and above.
*For optional fuse block covers, refer to Blocks and Holders
section.
I
1.04"
[26.4]
1.04"
[26.4]
1.69"
[42.8]
1.69"
[42.8]
1.69"
[42.8]
3.38"
[85.7]
3.38"
[85.7]
3.38"
[85.7]
.30"
TYP.
[7.6]
.57"
1.16"
[29.4]
[14.5]
.57" TYP.
[14.5]
3.25"
[82.5]
.71"
1.95"
[49.5]
[17.9]
2.20"
[56.0]
1 POLE
2 POLE
3 POLE
