224PPA122KD16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 224PPA122KD16

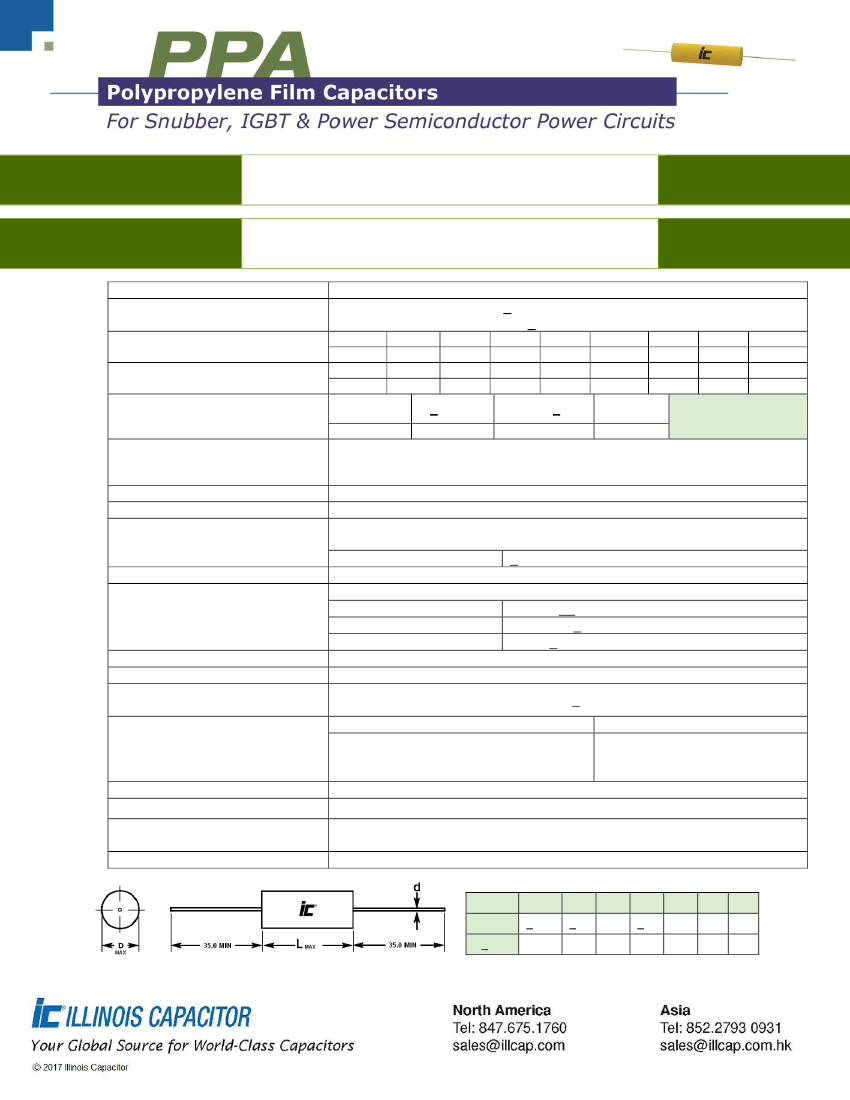

224PPA122KD16: DescriptionFilm Capacitor, Polypropylene, 1200V, 10% +Tol, 10% -Tol, 0.22uF, Through Hole Mount, AXIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size481KB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

224PPA122KD16 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	224PPA122KD16	-	-	View	Buy Now

224PPA122KD16 Overview

Film Capacitor, Polypropylene, 1200V, 10% +Tol, 10% -Tol, 0.22uF, Through Hole Mount, AXIAL LEADED, LEAD FREE

224PPA122KD16 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 630
capacitance	0.22 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Manufacturer's serial number	PPA
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	TUBULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	1200 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

High dvdt

–

Good Pulse Current

–

Stable with Temperature and Frequency

Inverters/Converters

–

Power Semiconductor Circuits

–

Induction Heating

–

Switching Power Supplies

-55°C to +85°C

+10% at 1 kHz, 25°C

+5% optional

WVDC

700

850

SVDC

1000

1200

WVDC

700

850

VAC

420

450

Frequency

C<0.047uF

(kHz)

0.06%

1000

1400

1000

480

1200

1600

1200

500

1500

2000

1500

575

C>1uF

0.06%

2000

2400

2000

630

2500

3000

2500

700

3000

3500

3000

750

Operating Temperature Range

Capacitance Tolerance

Surge Voltage(SVDC)

AC voltage (50/60 Hz)

Dissipation Factor (MAX)

25°C

Insulation Resistance

@25°C (<70% RH)for 1 minute at

100VDC applied

Self Inductance

Capacitance Drift Factor

0.047>C>1uF

0.05%

30000 MΩxμF

(not to exceed 30GΩ)

<1 nano-Henry per mm of lead spacing

<0.5% after 2 years at 40°C

30000 hours @VAC, 70°C

100000 hours @VDC, 70°C

Capacitance Change

<3% of initially measured value

300/ billion component hours

56 days at 40°C with 90 to 95%RH, +40°C and no voltage applied

Capacitance Change

<2% of initially measured value

Dissipation Factor

<0.0001 at 1kHz and 25°C

Insulation Resistance

>50% of maximum specified value

<1 nano-Henry per mm of body length and lead length

<1.0% after 2 years at 40°C

-200 ppm/°C, +100ppm/°C

Terminal to case

3kVAC, 50/60Hz applied

160% of rated VDC or 200% VDC

between the leads and case for

applied for 2 Seconds and 25°C

60 seconds

Polypropylene

Double Metallized film with internal series connections

Flame Retardant polyester tape wrap (UL 501) with epoxy resin end

fill(UL94V0)

Lead free tinned copper leads

L MAX

d+0.05

<17.5

0.8

<18

0.8

>18

1.0

<25

1.0

>25

1.2

all

1.2

all

1.2

Life Expectancy

Failure Quota

Damp Heat test

Self Inductance

Capacitance Drift Factor

Capacitance Temperature

Coefficient

Dielectric Strength

Dielectric

Construction

Coating

Leads

Terminal to Terminal

Feb-17
