Datasheet> All Categories > Passive components> capacitor> 225MMR400K

Preview

225MMR400K: DescriptionFilm Capacitor, Polyester, 400V, 10% +Tol, 10% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size474KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

225MMR400K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	225MMR400K	-	-	View	Buy Now

225MMR400K Overview

Film Capacitor, Polyester, 400V, 10% +Tol, 10% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, LEAD FREE

225MMR400K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 200
capacitance	2.2 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	400 V
surface mount	NO
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

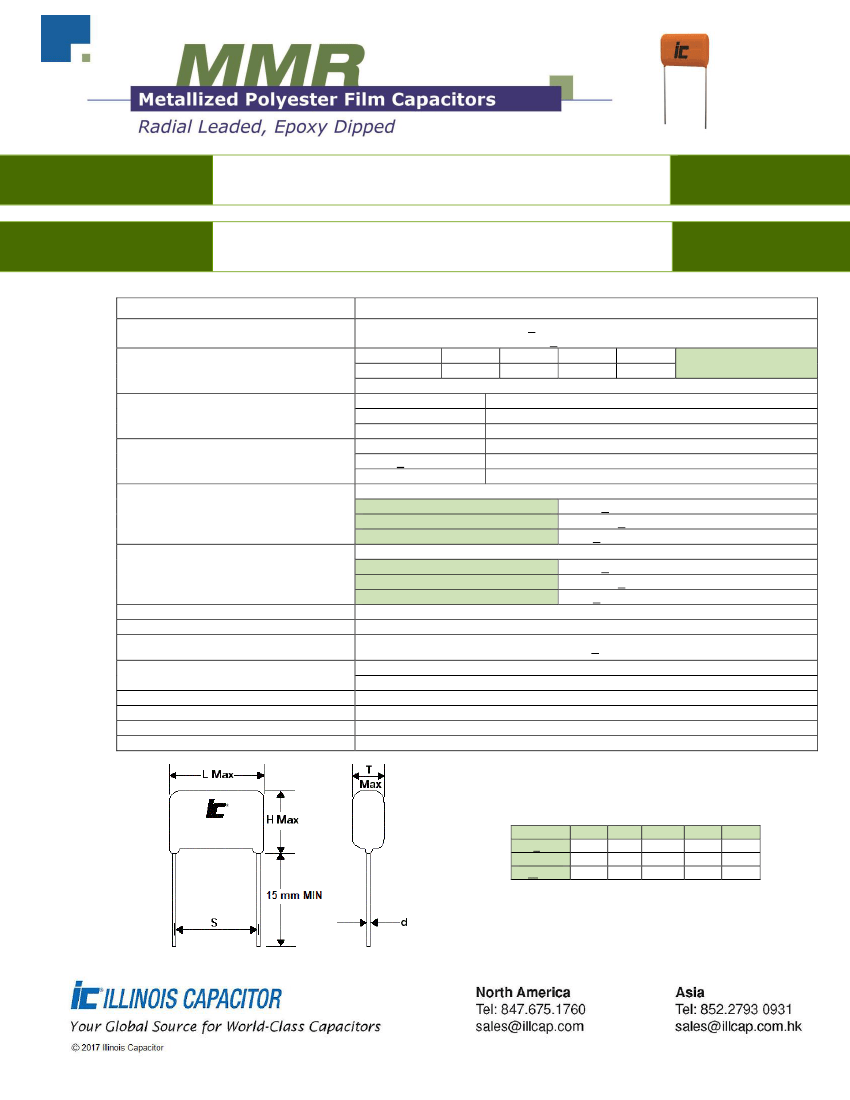

FEATURES

APPLICATIONS

Small Size

-

High Voltage

-

General Purpose

–

Bypass

–

Coupling

–

Blocking

Operating Temperature Range

Capacitance Tolerance

Peak, AC voltage (50/60 Hz)

Dissipation Factor (MAX)

25°C

Insulation Resistance

@25°C (<70% RH)for 1 minute at

100VDC applied

Load Life

Damp Heat test

Self Inductance

Capacitance Drift Factor

Capacitance Temperature Coefficient

Dielectric Strength

Dielectric

Construction

Coating

Leads

-40°C to +105°C

+10% at 1 kHz, 25°C

+5% optional

WVDC

100

250

400

630

VAC

63

160

200

220

For T>+85°C , The voltage must be decreased by 1.25% per °C

Frequency (kHz)

Dissipation Factor

1

1.0%

10

1.5%

Capacitance

Insulation Resistance

<0.33μF

9000 MΩ

>0.33μF

3000 MΩxμF

2000 Hours, +85C with 125% of rated voltage

Capacitance Change

<5% of initially measured value

Dissipation Factor

<0.005 at 1kHz and 25°C

Insulation Resistance

>50% of maximum specified value

1000 Hours, 93%RH(+/-2%), +40°C and no voltage applied

Capacitance Change

<5% of initially measured value

Dissipation Factor

<0.005 at 1kHz and 25°C

Insulation Resistance

>50% of maximum specified value

<1 nano-Henry per mm of body length and lead length

<1.0% after 2 years at 40°C

+400 ppm/°C, +200ppm/°C

Terminal to Terminal

160% of VDC applied for 2 Seconds and 25°C

Polyester

Metallized film

Flame Retardant epoxy resin (UL94V0)

Lead free tinned copper leads

L MAX

S+1.0

G MAX

d +0.05

10.5

7.5

1.5

0.6

12

10

1.5

0.6

18.5

15

1.5

0.8

26

22.5

1.5

0.8

31

27.5

1.5

0.8

Feb-17
