LH5424-S: Description5 mm T1 3/4 LED, Non Diffused Super-Bright, Hyper-Red GaAIAs-LED; CategoryLED optoelectronic/LED photoelectric; File Size280KB，7 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LH5424-S Overview

5 mm T1 3/4 LED, Non Diffused Super-Bright, Hyper-Red GaAIAs-LED

LH5424-S Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknow
color	HYPER RED
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	RED CLEAR
Nominal luminous intensity	240 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	TAPE AND REEL
peak wavelength	660 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	16 deg

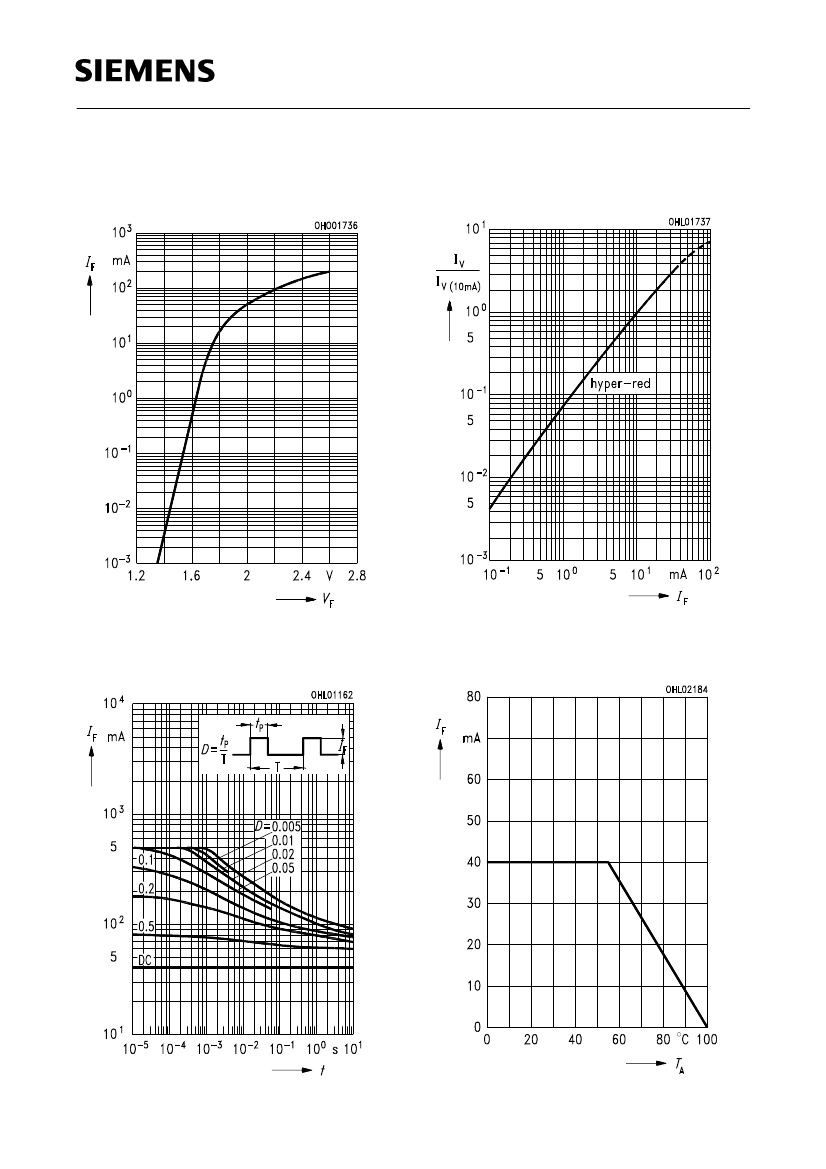

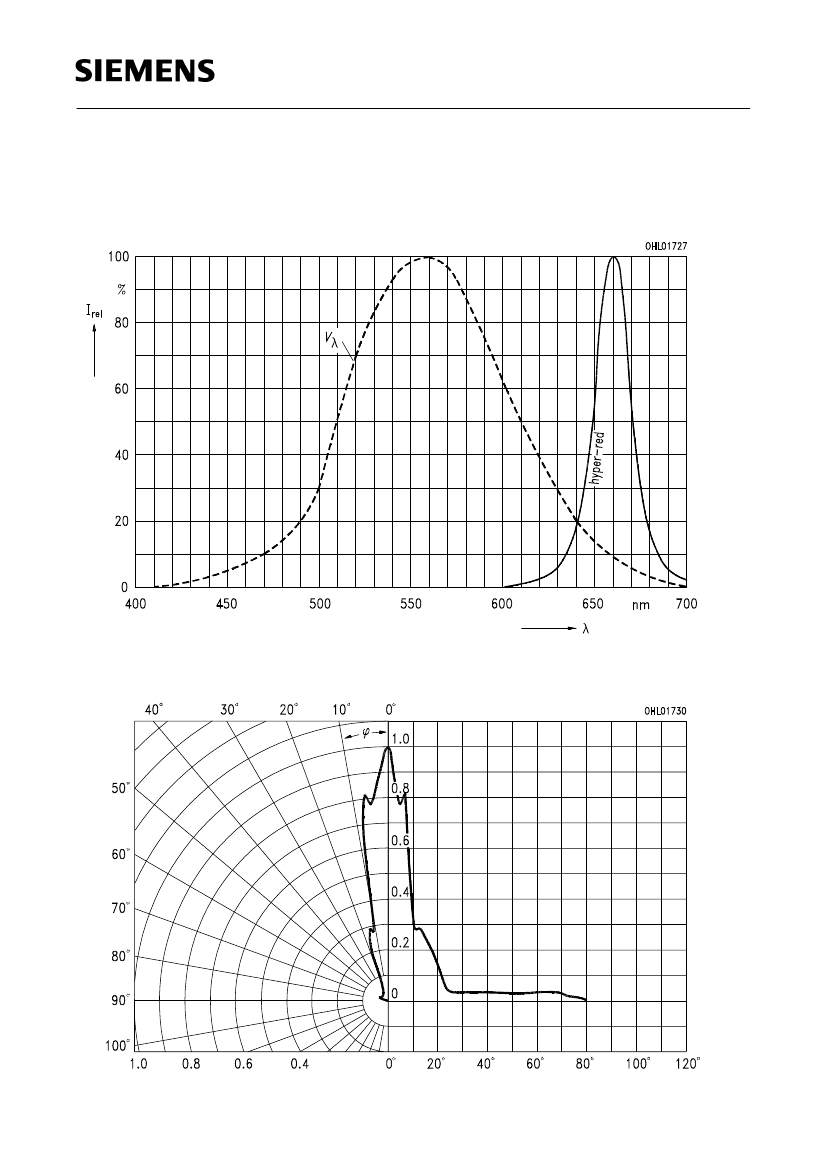

Preview

Download Datasheet

View All

5 mm (T1

) LED, Non Diffused

Super-Bright, Hyper-Red GaAIAs-LED

LH 5424

Besondere Merkmale

eingefärbtes, klares Gehäuse

Doppel-Heterostruktur in GaAlAs Technologie

besonders hohe Lichtstärke

Lötspieße ohne Aufsetzebene

gegurtet lieferbar

Störimpulsfest nach DIN 40839

VEX06713

Features

colored, clear package

double heterojunction in GaAIAs technology

especially high luminous intensity

solder leads without stand-off

available taped on reel

load dump resistant acc. to DIN 40839

Typ

Type

Emissionsfarbe

Color of

Emission

Gehäusefarbe

Color of

Package

Lichtstärke

Luminous

Intensity

= 10 mA

(mcd)

…

160

…

250

…

160

…

500

320

500

800

Bestellnummer

Ordering Code

LH 5424-QT

LH 5424-S

LH 5424-T

LH 5424-SU

hyper-red

red clear

Q62703-Q2242

Q62703-Q3826

Q62703-Q3827

Q62703-Q3828

Streuung der Lichtstärke in einer Verpackungseinheit

V max

V min

≤

2.0.

Luminous intensity ratio in one packaging unit

V max

V min

≤

2.0.

Semiconductor Group

11.96
